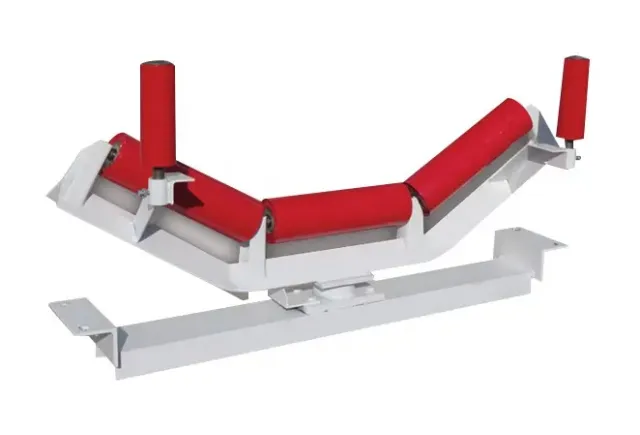

Conveyor Friction Self Aligning Idler

SKE is a conveyor self aligning Idlers manufacturer, and we can supply our belt conveyor friction idlers  around thw wrold. You can contact with us for more detail specifications of them.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

The Friction self aligning idler roller is used to adjust the belt deviation, it has a strong ability to prevent belt from being damaged and sideslip. It is based on the principle of idler curvature and frcition to prevent and correct belt sideslip. Friction friction self-adjusting conveyor roller has great ability to protect conveyor belt from damage and running offline. When conveyor belt runs offline, which side the conveyor belt runs to, the frictional force of this side will be increased. Under the action of frictional force, the side with bigger frictional force will sway to conveyor belt’s moving direction. The function of automatic swaying can make conveyor belt retun back to center line.

Advantages

1.Patented products

2.Excellent abrasion/ wearresistance

3.Excellent corrosion resistance

4.High Anti-magnetic/excellent non-magnetic properties

5.Low friction coefficient/low coefficient of friction

6.Low noise(60-70bd)

7.Long life is more than steel roller 6-8 times

8.Light weight and energy saving

9.Outstanding Anti-Acidic/Anti-Alkaline/ Anti- Static

Tech Datasheet
Friction self-aligning Idlers Specifications
TechData Friction self-aligning idler's shell wall thinkness(mm) Bearing type
Dia(mm) Length(mm)
63.5 \ \ 6203/C4
230 3.2
273 3.2
323 3.2
590 3.2
690 3.2
76 \ \ 6204/C4
230 3.2
273 3.2
280 3.2
323 3.2
398 3.2
590 3.2
690 3.2
840 3.2
89 \ \ 6204/C4
230 3.2
273 3.2
280 3.2
323 3.2
398 3.2
473 3.2
590 3.2
690 3.2
840 3.2
990 3.2
108 294 3.2 6205/C4
342 3.2
398 3.2
405 3.2
465 3.2
488 3.2
533 3.2
590 3.2
690 3.2
790 3.2
870 3.2
1020 3.2
1220 3.2
1420 3.2
1620 3.2
133 348 4 6305/C4
412 4
473 4
488 4
540 4
590 4
690 4
790 4
1020 4
1220 4
1420 4
1620 4
159 429 4.5 6306/C4
494 4.5
553 4.5
599 4.5
699 4.5
799 4.5
1238 4.5
1438 4.5
1638 4.5
