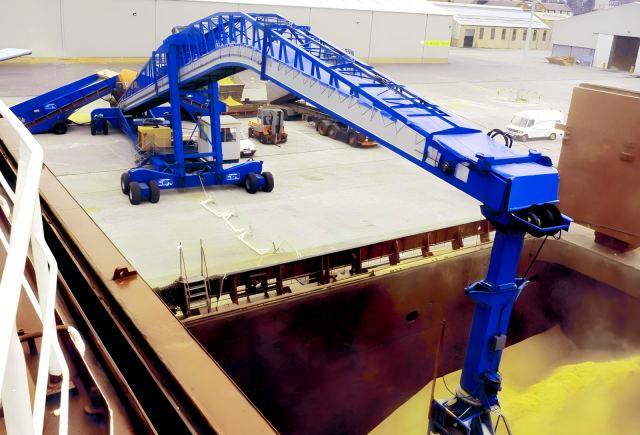

Cambered Boom Ship Loader

The cambered boom shiploader offers flexible solutions for every loading application. The fully mobile chassis allows operations on every berth. The loading capacity can reach 2000 t/h. We can provide ship loading systems to meet different quayside, production rates, bulk materials and carrier sizes.

Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

  • Application
  • Features
  • Datasheet
  • Gallery
APPLICATION

Loading dry bulk materials like aggregate, sand, mineral ore, fertilizer, grains, clinker, etc. The ultimate solution for inclined boom designs available in an extended range of boom lengths and with comprehensive trimming, feeder and manoeuvring systems suitable for loading vessels through to Panamax at very high handling rates.

FEATURES
  1. Cascade trimming chute, variable speed radial thrower, radial distributor.
  2. Optional cambered boom.
  3. Full powered travel with in-line and parallel motion.
  4. Can be used independently or attached to a single/double belt feeder.
  5. Out loading boom with integral three roll troughing idlers.
  6. Throwers and chute distributors available with radio remote control.
  7. Levelling blade to provide controlled feed rate.
  8. Choice of power drive: diesel, electric, diesel/electric, diesel+electric.
DATASHEET
Length (m) Outreach (m) Free-Board (m) Beam (m)
18 7 5.5 14
21 8.5 6.1 16
23 9.5 5.7 17
25 10.5 6.5 18
27 11.5 7.6 18
30 13 8.4 20
35 15 9.7 25
40 17.5 11.2 30
45 20 12.3 32
50 22.5 13.7 35
55 25 14.8 40
60 27.5 15.8 40



Length (ft.) Outreach (ft.) Free-Board (ft.) Beam (ft.)
59.04 22.96 18.04 45.92
68.88 27.88 20.01 52.48
75.44 31.16 18.70 55.76
82.00 34.44 21.32 59.04
88.56 37.72 24.93 59.04
98.40 42.64 27.55 65.60
114.8 49.20 31.82 82.00
131.20 57.40 36.74 98.40
147.60 65.60 40.34 104.96
164.00 73.80 44.94 114.80
180.40 82.00 48.54 131.20
196.80 90.20 51.82 131.20

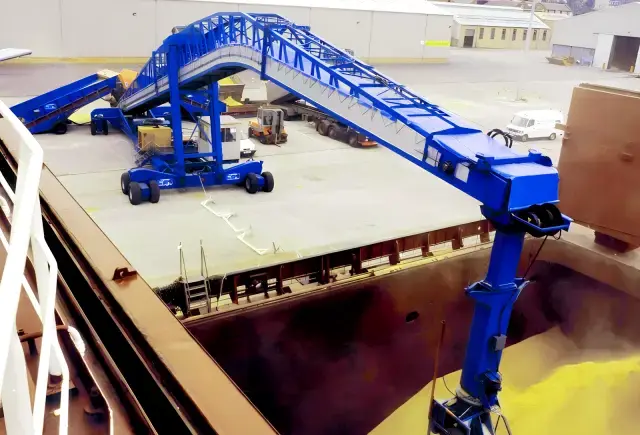

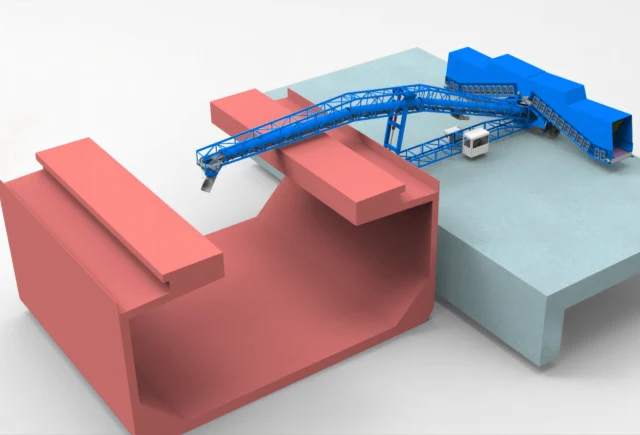

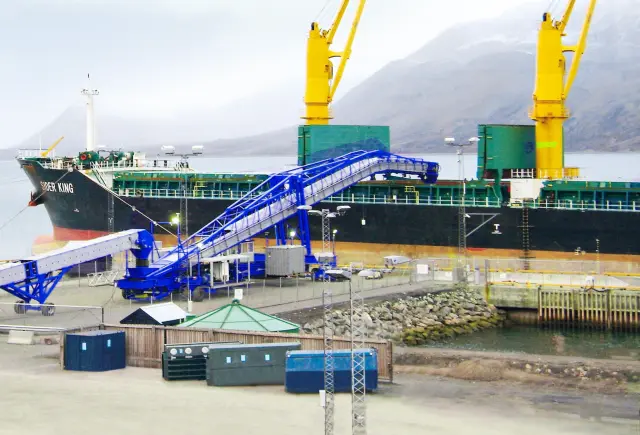

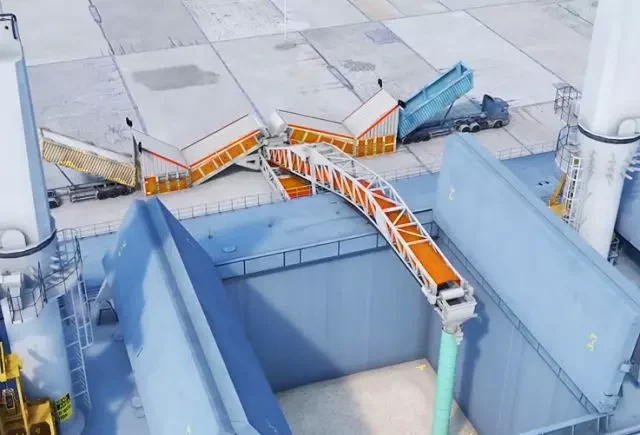

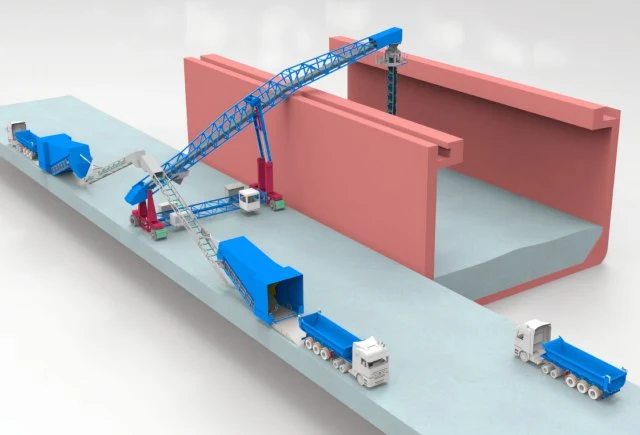

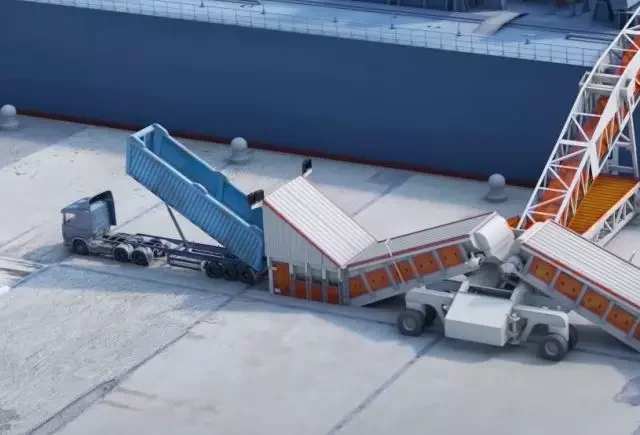

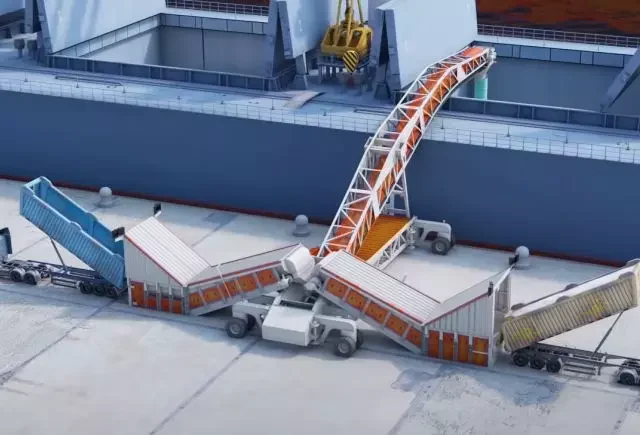

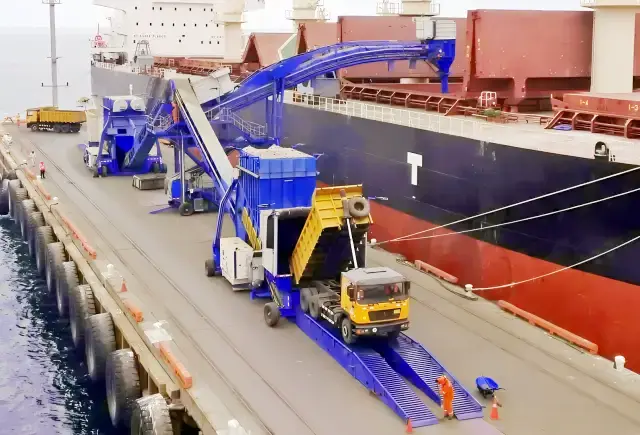

EQUIPMENT GALLERY
