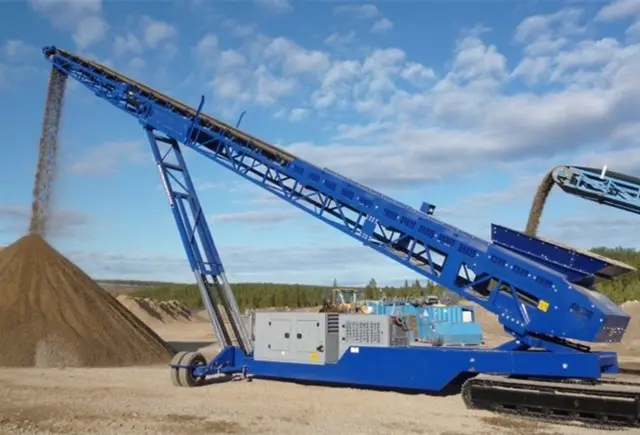

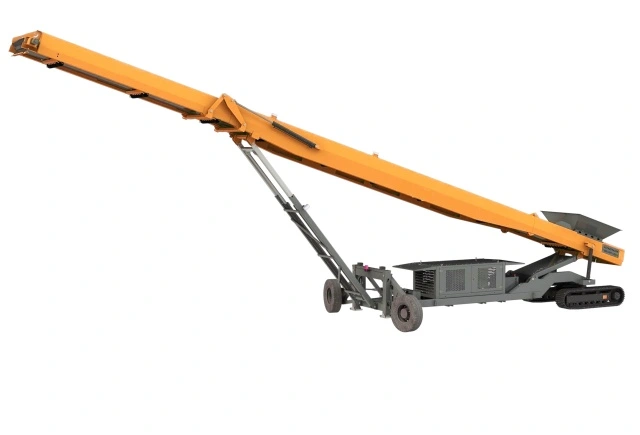

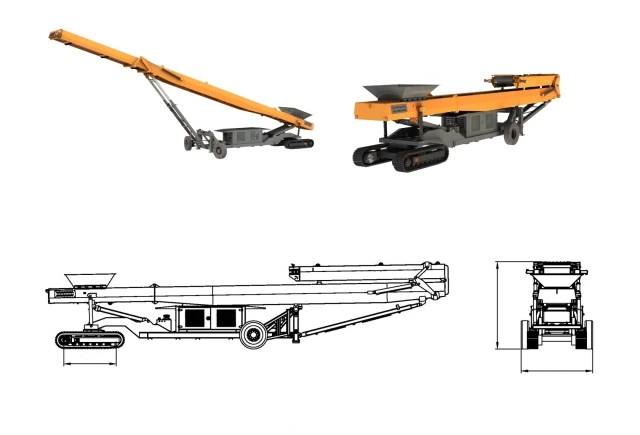

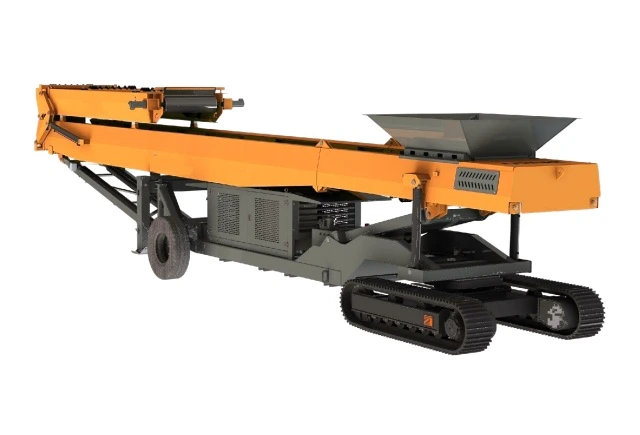

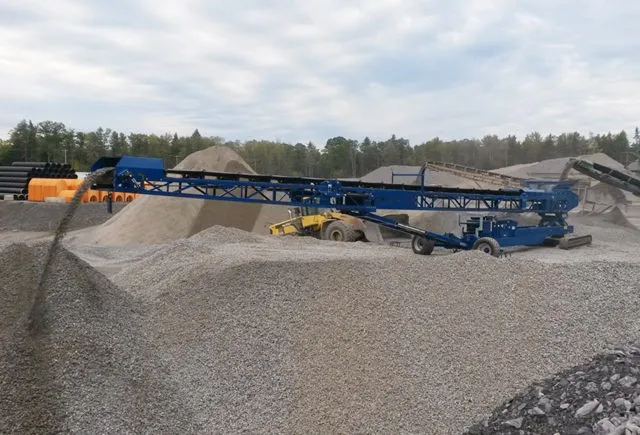

SKE offer the widest range of KTR (KTR1020, KTR1024, KTR1031, KTR1231) Tracked Radial Stockpiling Conveyors in the industry: lengths 20 to 31m, tonnages of 500 to 1500tph and lump sizes up to 300mm (12").
Our KTR tracked radial stacking conveyor are the ideal solutions for bulk material storage stockpiling system in different industries:
1. Stockpiling direct from primary crushers at material source.
2. Stockpiling from secondary crushers and screens.
3. Stockpiling crushed stone, sand and gravel, mineral ores and many more.
4. Stockpiling construction and demolition waste, top soil, coal, grain etc.
5. Receiving crushed material and stockpiling safely over a quarry face/bench.
6. Working as part of a mobile system on short to medium term projects.
7. Ship, truck and rail wagon loading.
8. Mobile Link conveyor
1. Self powered diesel hydraulic tracked conveyor.
2. Full hydraulic set-up, no crane required.
3. Containerised, track in/track out.
4. Can reduce fuel, maintenance and labour costs by up to 80%.
5. Eliminate double handling of material with wheel loader.
6. Fully tracked for on-site mobility.
| Model | KTR1020 |
| Length (m) | 20 |
| Belt Width (mm) | 1050 |
| Discharging Height (m) | 8.8 |
| Stockpile Volume (m³) | 7141 |
| Stockpile Volume (t) | 11426 |
| Capacity (t/h) | 500 |
| 1. Discharging Angle is lower than 22°. 2. Rotation angle is between 0 and 180°. 3. The reference density is 1.6t/m³. |
|
| Model | KTR1024 |
| Length (m) | 24 |
| Belt Width (mm) | 1050 |
| Discharging Height (m) | 10 |
| Stockpile Volume (m³) | 9060 |
| Stockpile Volume (t) | 14496 |
| Capacity (t/h) | 500 |
| 1. Discharging Angle is lower than 22°. 2. Rotation angle is between 0 and 180°. 3. The reference density is 1.6t/m³. |
|
| Model | KTR1024R |
| Length (m) | 24 |
| Belt Width (mm) | 1050 |
| Discharging Height (m) | 10.8 |
| Stockpile Volume (m³) | 8435 |
| Stockpile Volume (t) | 13490 |
| Max. Capacity (t/h) | 1500 |
| 1. Discharging Angle is lower than 20°. 2. Rotation angle is between 0 and 180°. 3. The reference density is 1.6t/m³. 4. Truss Frame Structure. |
|
| Model | KTR1031R |
| Length (m) | 31 |
| Belt Width (mm) | 1050 |
| Discharging Height (m) | 12.7 |
| Stockpile Volume (m³) | 19050 |
| Stockpile Volume (t) | 30470 |
| Max. Capacity (t/h) | 1500 |
| 1. Discharging Angle is lower than 20°. 2. Rotation angle is between 0 and 180°. 3. The reference density is 1.6t/m³. 4. Truss Frame Structure. |
|
| Model | KTR1231R |
| Length (m) | 31 |
| Belt Width (mm) | 1200 |
| Discharging Height (m) | 12.7 |
| Stockpile Volume (m³) | 19050 |
| Stockpile Volume (t) | 30470 |
| Max. Capacity (t/h) | 1500 |
| 1. Discharging Angle is lower than 20°. 2. Rotation angle is between 0 and 180°. 3. The reference density is 1.6t/m³. 4. Truss Frame Structure. |
|
