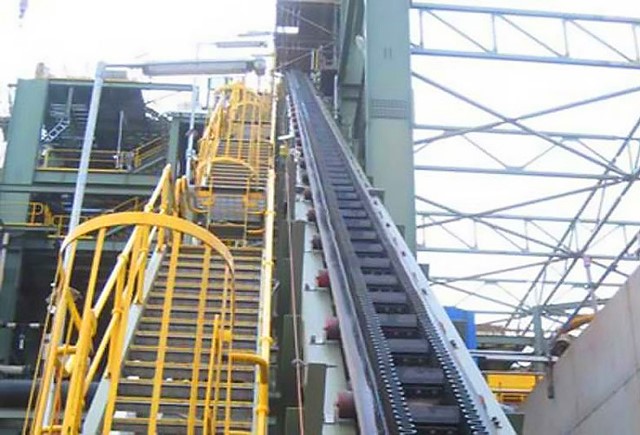

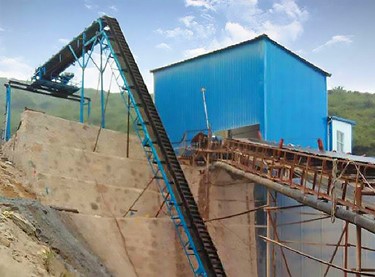

SKE KS Corrugated Sidewall Belt Conveyor, which is also known as large inclination belt conveyor and high/steep angle belt conveyor. The biggest feature of the structure is to replace the ordinary belt with corrugated sidewall belt. Its structural composition and working principle are the same as the general belt conveyor.
KS Corrugated Sidewall Belt Conveyor systems have the advantage of large conveying capacity, taking small footprint, few malfunction, low noises, low running costs, etc. Therefore, it is widely used in the location of port and mine, metallurgy, mining, coal, power stations, building materials(sand, aggregate, gravel, concrete, etc), chemicals, light industry, machinery, petroleum, grain and other industries.

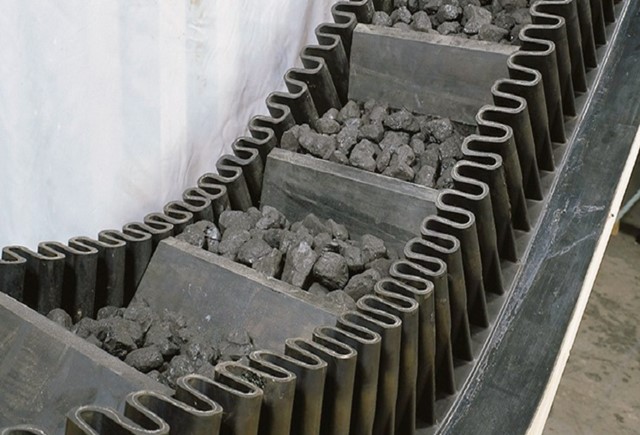

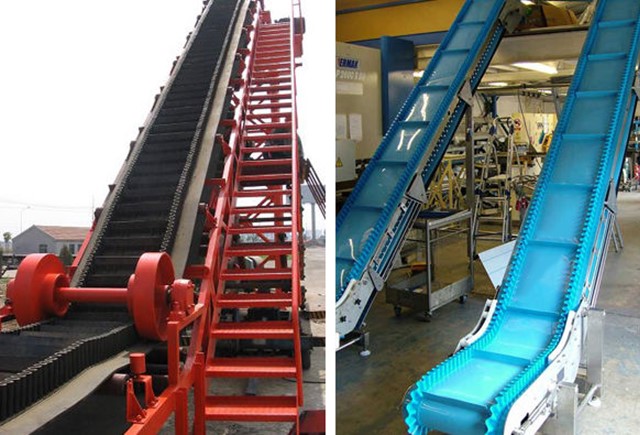

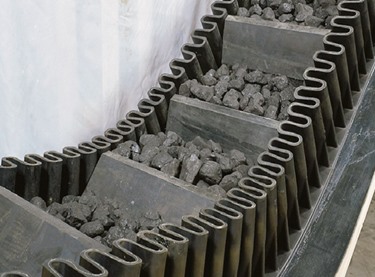

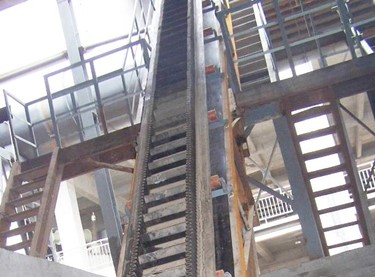

With corrugated ribs and diaphragm installed, the angles of inclination belt conveyor are able to reach 90°. It is an ideal equipment for materials of large inclination angle conveying and vertical lifting process.
The corrugated side-wall belt conveyor has a simple structure, stable operation and low noise. It can save space, investment civil construction costs, and has high comprehensive economic benefits.

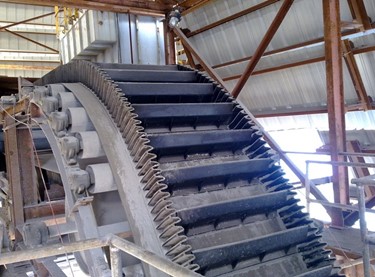

The large inclined belt conveyor operates reliably, without the jamming, floating chain, and chain breaking phenomenon that often occurs in the scrapper conveyors. It provide a radiality condition.
The corrugated side-wall inclined belt conveyor has low energy consumption because of there is no internal and external friction during conveying operation. It can help us reduce running costs.

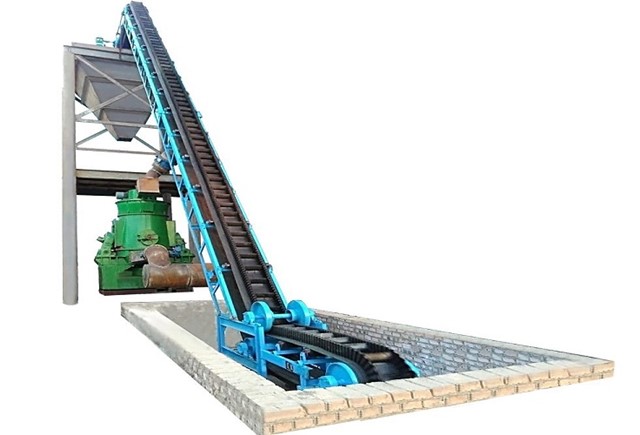

We can set flat belt conveyors of any length on the head and tail of the inclined belt conveyor. It is convenient to link corrugated side-wall inclined belt to other facility in the bulk material handling system.
The conveying capacity is large. Because the conveying belt has a corrugated rib, the loading section is increased at the same inclination angle, and it can be larger than the general belt conveyor.
| Specifications of Corrugated Sidewall Belt Conveyor | |||||
| Belt width(mm) | Height of ribs (mm) | Belt speed(m/s） | Angles(β/(°)) | Conveying Capacity (m3/h） | Power(kW) |
| 300 | 40 | 0.8～2.0 | 30～90 | 18 | 1.5～18.5 |
| 60 | 24 | ||||
| 80 | 40 | ||||
| 400 | 60 | 0.8～2.0 | 34 | 1.5～18.5 | |
| 80 | 60 | ||||
| 10 | 80 | ||||
| 500 | 80 | 0.8～2.0 | 84 | 1.5～18.5 | |
| 100 | 112 | ||||
| 120 | 98 | ||||
| 650 | 100 | 0.8～2.0 | 156 | 1.5～2.2 | |
| 120 | 140 | ||||
| 160 | 186 | ||||
| 800 | 120 | 0.8～2.5 | 186 | 2.2～5.5 | |
| 160 | 318 | ||||
| 200 | 360 | ||||
| 1000 | 160 | 1.0～2.5 | 428 | 4.0～75 | |
| 200 | 483 | ||||
| 240 | 683 | ||||
| 1200 | 160 | 1.0～3.15 | 535 | 5.5～110 | |
| 200 | 765 | ||||
| 240 | 1077 | ||||
| 300 | 1358 | ||||
| 1400 | 200 | 1.0～3.15 | 920 | 5.5～160 | |
| 240 | 1298 | ||||
| 300 | 1657 | ||||
| 400 | 2381 | ||||
| 1600 | 200 | 1.25～3.15 | 1074 | 5.5～160 | |
| 240 | 1515 | ||||
| 300 | 1953 | ||||
| 400 | 2807 | ||||
| 1800 | 240 | 1.25～4.0 | 2200 | 7.5～185 | |
| 300 | 2724 | ||||
| 400 | 4106 | ||||
| 500 | 5036 | ||||
| 2000 | 240 | 1.25～4.0 | 2480 | 11～220 | |
| 300 | 3236 | ||||
| 400 | 4648 | ||||
| 500 | 5736 | ||||
| 2200 | 300 | 1.25～4.0 | 3612 | 11～220 | |
| 400 | 5192 | ||||
| 500 | 6432 | ||||
| 630 | 7820 | ||||
| 2400 | 300 | 1.25～4.0 | 3992 | 11～220 | |
| 400 | 5736 | ||||
| 500 | 7132 | ||||
| 630 | 8668 | ||||
| The conveying capacity in the table is calculated according to the inclination of 30 °, the maximum belt speed allowed by this specification, and the minimum distance between the diaphragms. | |||||
