SKE Industries is a manufacturer of portable stacking conveyors in China, and we offers advanced mobile stacker conveyors for efficient bulk material stacking. Our range includes tracked stacker conveyors (up to 1500 t/h), tracked feeder stacker (up to 2000 t/h), radial stacker conveyors, radial telescopic stackers (telescopic stacker conveyors, up to 4500 t/h), designed for industries like mining, quarrying, ports and more. With over 13 years of expertise, our portable stacking solutions enhance stockyard efficiency, reduce haulage costs, and adapt to diverse terrains and material types like aggregates, coal, grains and more.

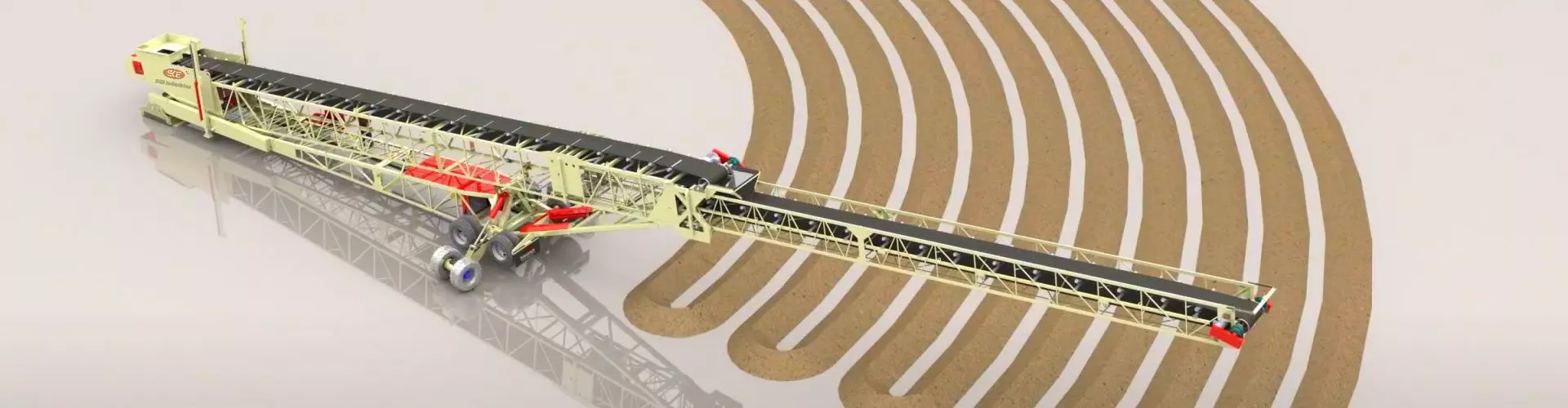

The KYD radial telescopic stacker can build layered stockpile due to its variable height, length and axle positions, which can achieve high quality and large volume piles.

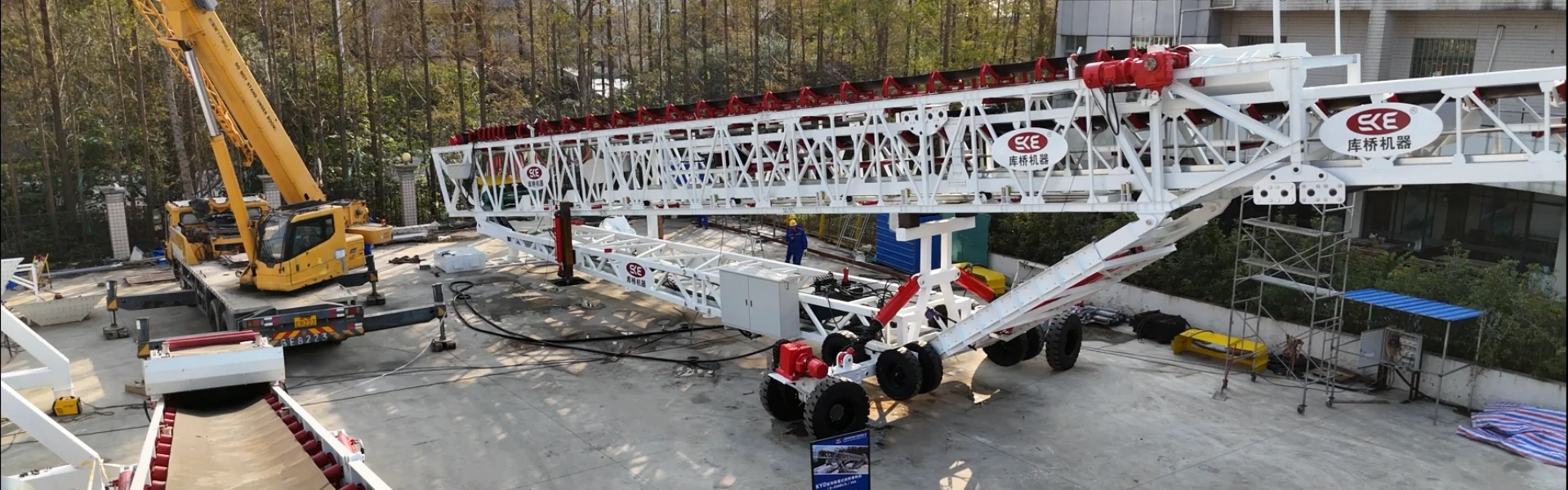

The KYD portable radial telescopic stacking conveyor is the most cost-efficient radial stacking conveyor for bulk materials stockpiling. This telescopic stacker conveyor can be track-mounted or wheel-mounted.
The KTB R series tracked radial stacker is often used after mobile crushing and screening plant. The conveyor length ranges from 20m to 31m, the stacker stacking capacity is up to 1000t/h, and the lump sizes can be up to 300mm.

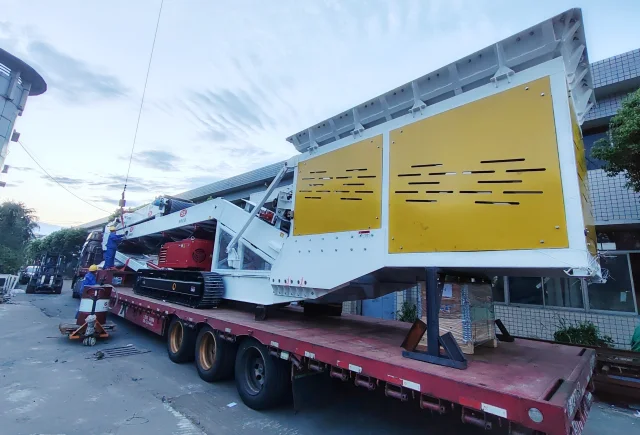

KTB HF series tracked mobile hopper feeder can be used in feeding and stacking bulk materials. The feeding capacity ranges from 100 t/h to 2000 t/h, and the feeding lump size is up to 300mm.
KTB LF series tracked low range hopper feeder has a lower feeding height than standard hopper. The feeding capacity ranges from 100 t/h to 700 t/h, and the feeding lump size is up to 300 mm.

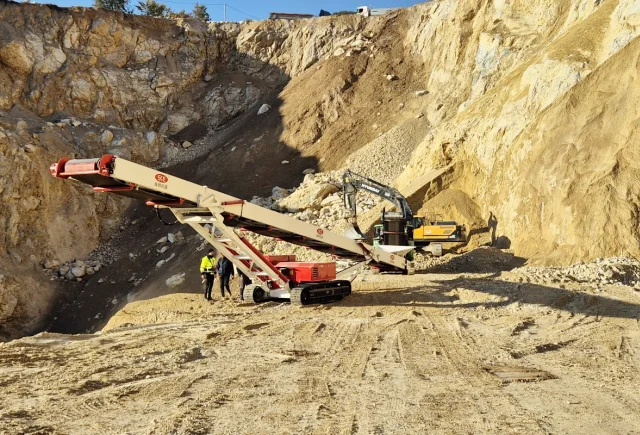

KTB series tracked stacking conveyors is mainly used in mobile crushing and screening plant. The stockpiling capacity can reach 1500t/h, the feeding particle size is up to 300 mm, and the conveyor length ranges from 20m to 31m.

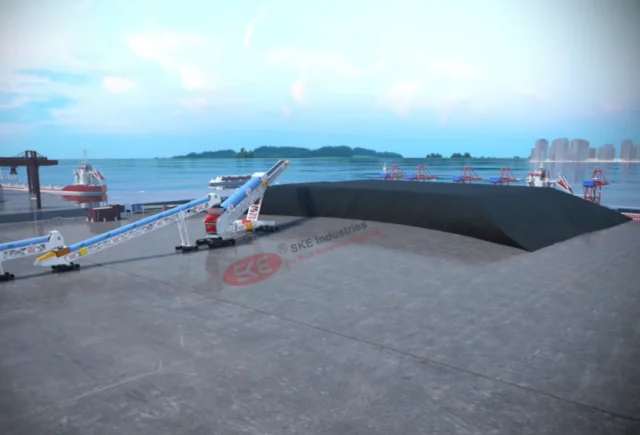

SKE Industries can meet wide range of applications in bulk materials stockpiling. Our portable radial stacking conveyor are widely used in Quarry, Mining, Heap Leaching, Port, In-land Terminal, Stockyard, Railway, etc. Our radial stacker machine can handle bulk materials like these.
| Feature | Fixed Stacker | Tracked Stacker | Radial Stacker | Radial Telescopic Stacker |
| Moving | None | Crawler Drive | Wheeled, Pivoted | Tracked, Wheeled, Pivoted |
| Mobility | None | High | Moderate/High | Moderate/High |
| Capacity | High | Low | Moderate/High | Moderate/High |
| Stacking Height | High | Medium | High | Very High |
| Flexibility | Fixed | High | High | High |
| Stockpile Efficiency | High | Medium | Very High | Very High |
| Installation Cost | High | Low | Moderate | High |
| Maintenance Cost | Low | High | Medium | High |
| Environmental Impact | According to the environmental protection rules, the mobile stacker conveyor can include conveyor covers, dust collectors, telescopic chute, etc. | |||
A movable belt conveyor that takes bulk material from a crusher, screen, feeder, or transfer conveyor and builds a stockpile. It is used in mines, quarries, ports, stockyards, and crushing plants to replace repeated wheel-loader rehandling.
A fixed stacker can be very high capacity, but it needs civil works and cannot be relocated. A mobile stacker needs less capital and less infrastructure, and it can move within a site or between sites. Capacity is typically medium to large, not ultra-large fixed-plant scale.
Capacity depends on belt width, belt speed, bulk density, particle size, and moisture — not on length alone. Published ranges are roughly:
Common lengths are about 9–58 m (30–190 ft). Discharge height runs from about 4 m on small units, to about 8–12 m mid-size, and about 15–20 m (around 65 ft) on large radial telescopic machines. Fixed radial units are often discussed up to about 12 m (40 ft) of discharge height.
Aggregate, sand, clinker, crushed rock, coal, iron ore, copper ore, bauxite, tailings, slag, fly ash, fertilizer, grain, and woodchips, among other dry bulk materials. Lump size, abrasiveness, moisture, and stickiness decide belt width, speed, cleaners, and liners. Tonnage alone is not enough.
Work through this list:
Suppliers typically ask for material, density, t/h, conveyor length, discharge height, stockpile dimensions, site conditions, and the preferred mobility type.
Wheeled units can be built towable, and some fold. A telescopic machine's travel length is shorter than its working length (a unit that works at about 190 ft can travel much shorter). Tracked units usually move on a low-loader; smaller ones can ship in a container. Check travel length, width, height, and kingpin load against local rules before you order.
Pull-cord e-stops, head pulley guards, return-side cleaning, skirtboards to limit spillage, walkways and toe boards on larger machines, outriggers set before luffing, and keeping tracks back from an unstable stockpile toe. Control dust with skirts, sealing, and suppression — not by increasing the drop.
Our mobile stacker conveyors are designed to optimize the storage and handling of bulk materials. Whether you're stacking coal, minerals, or fertilizers, these conveyors streamline the process, increasing throughput and ensuring materials are efficiently moved to storage areas or stockpiles.
With robust design and high load-bearing capabilities, our stacker conveyors are ideal for heavy-duty applications. Their ability to handle large volumes of material at high speeds makes them perfect for industries such as mining, cement, and power generation where high-volume, continuous stacking is critical.
Our stacker conveyors come with adjustable height and angle options, providing flexibility to meet specific stacking requirements. Whether you need a stack height of 15 meters or more, we can tailor the conveyor to suit your operational needs. This ensures maximum use of storage space and optimizes material distribution.
Our stacker conveyors are engineered for minimal maintenance, which means less downtime and more continuous operation. The efficient design ensures that materials are stacked consistently and quickly, increasing the overall productivity of your operation.
Built to last, our stacker conveyors are made from high-quality materials designed to withstand tough environments. With heavy-duty frames, corrosion-resistant components, and reliable drive systems, they offer exceptional durability and reduce the frequency of maintenance, contributing to long-term savings.
Investing in our mobile stacker conveyors translates into significant cost savings over time. Reduced labor costs, increased storage efficiency, and lower maintenance requirements all contribute to a high return on investment. The durability and reliability of our systems ensure you get the most value for your money.
