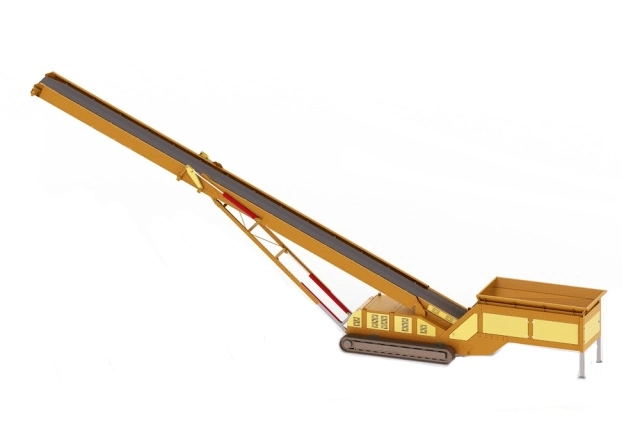

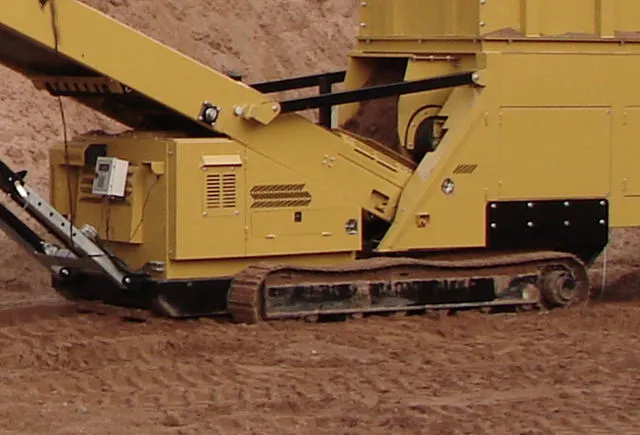

KTF Tracked Mobile Hopper Feeder

KTF series tracked mobile hopper feeder can be used in feeding and stakcing bulk materials. The feeding capacity ranges from 100 t/h to 2000 t/h, and the feeding lump size is up to 300mm. It can be fed direct by Wheel Loaders, Grab Cranes, Excavators.

Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

  • Application
  • Features
  • Datasheet
  • Gallery
APPLICATION

Our KTF Tracked Hopper Feeder Conveyors are mainly used to handle bulk materials like Aggregates, Coal, Compost, Construction and demolition waste (C&D), Food products, Sand and gravel, Topsoil, Wood waste, etc. There are serveral applications.

  • Bulk Materials Stockpiling.
  • Feeding Bulk Materials to Other Handling Equipment.
  • Ship Loading and Unloading.

FEATURES
  1. Feeding rates up to 2,500TPH.
  2. Vairous of hopper capacities depending on feeding equipment.

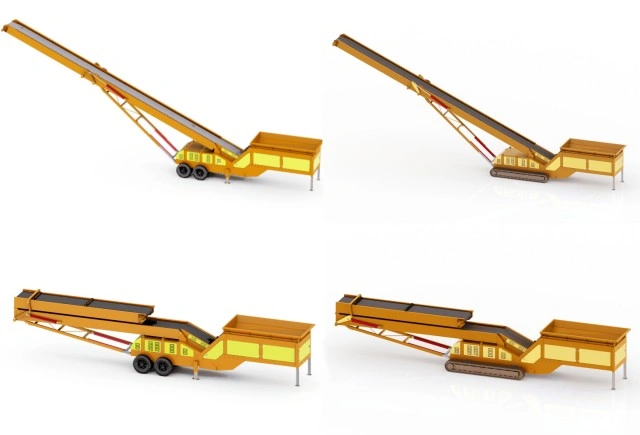

  3. High mobility with tracks or tires to suit all ground conditions.
  4. Reduces fuel cost by up to 75%.

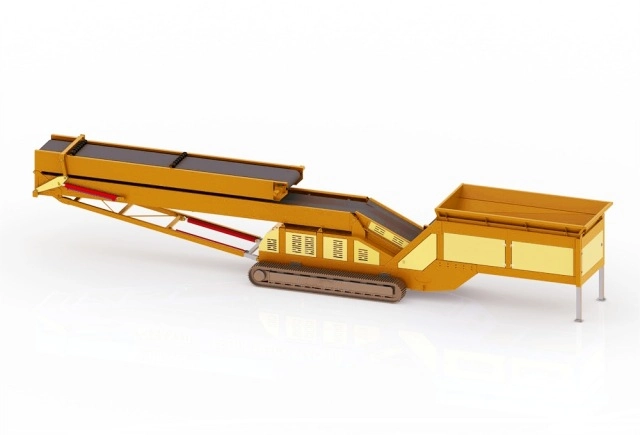

  5. Hydraulic fold design for compact road transportation.
  6. Reducing loading shovel movements which reduces operating cost and improves safety.
  7. Increased safety as no need to stockpile with wheel loaders.
  8. Can be packed into 40ft containers for easy, cost effective transport around the globe.
  9. Unrivalled mobility and flexibility when in operation..
  10. Heavy duty design and manufacture.
DATASHEET
Model KTF1218 KTF1221
Length (m) 18 (59.05ft) 21 (68.89ft)
Feeding Belt Width (mm) 1200 (47.24inch) 1200 (47.24inch)
Discharging Belt Width (mm) 1000 (39.37inch) 1200 (47.24inch)
Max. Discharging Height (m) 7.9 (25.91ft) 9.1 (29.85ft)
Stockpile Volume (m3) 845 (1105yd3) 1215 (1589yd3)
Stockpile Volume (t) 1350 1945
Capacity (t/h) 500 500

Model KTF1214 KTF1818 KTF2420
Length (m) 14 (45.93ft) 18 (59.05ft) 20 (65.61ft)
Feeding Belt Width (mm) 1200 (47.24inch) 1200 (47.24inch) 1400 (55.11inch)
Discharging Belt Width (mm) 1000 (39.37inch) 1200 (47.24inch) 1200 (47.24inch)
Max. Discharging Height (m) 4.8 (15.74ft) 7 (22.96ft) 7 (22.96ft)
Hopper Volume (m3) 12 (15.69yd3) 18 (23.54yd3) 24 (31.39yd3)
Hopper Feeding Width (m) 4.5 (14.76ft) 5 (16.40ft) 6 (19.68ft)
Capacity (t/h) 100-1000 1000-1500 1500-2000

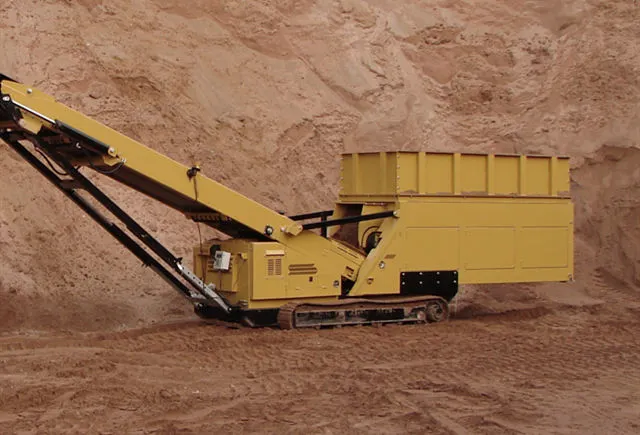

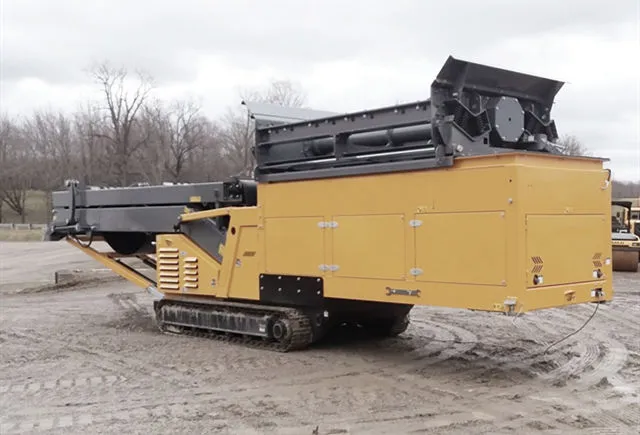

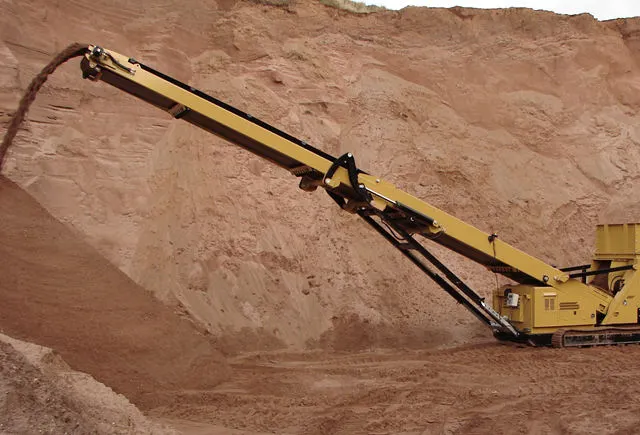

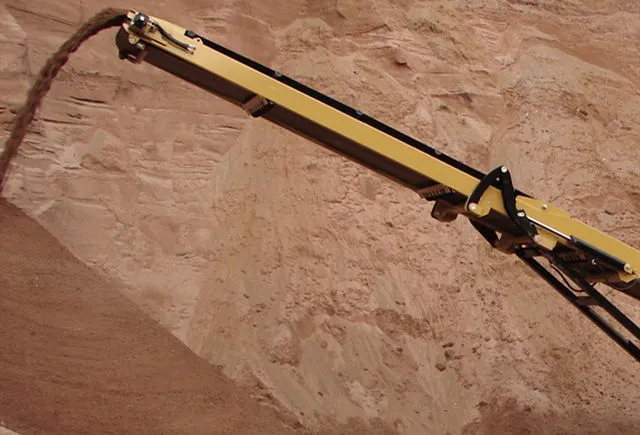

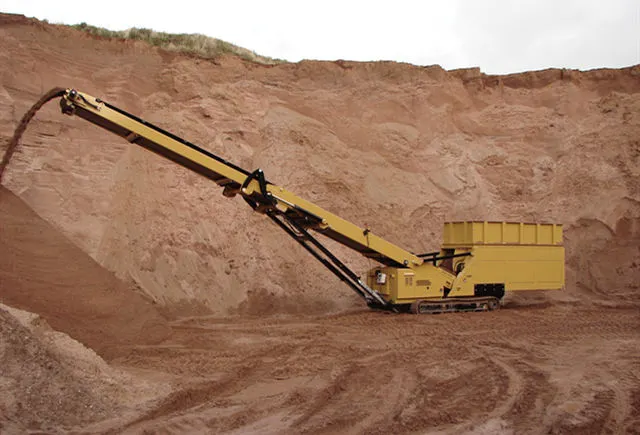

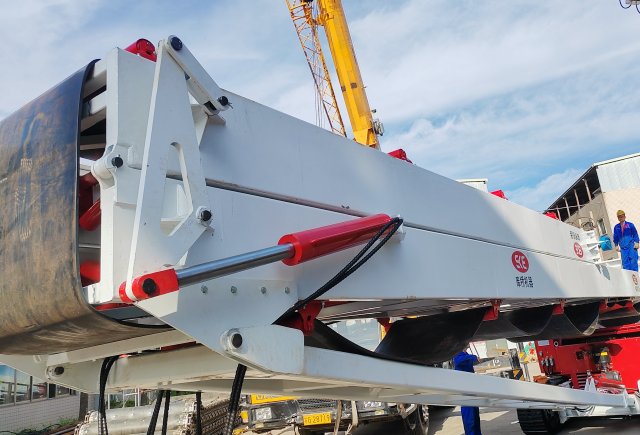

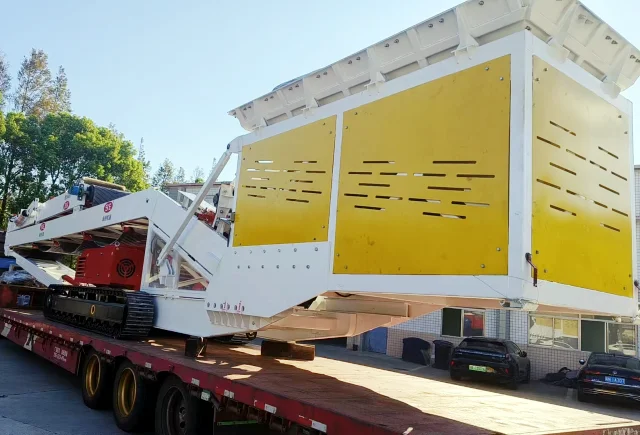

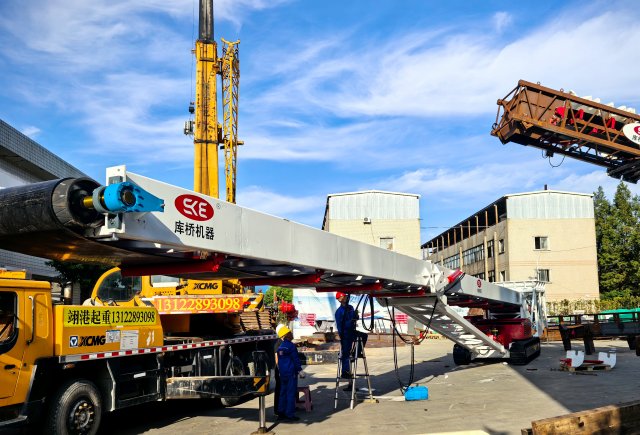

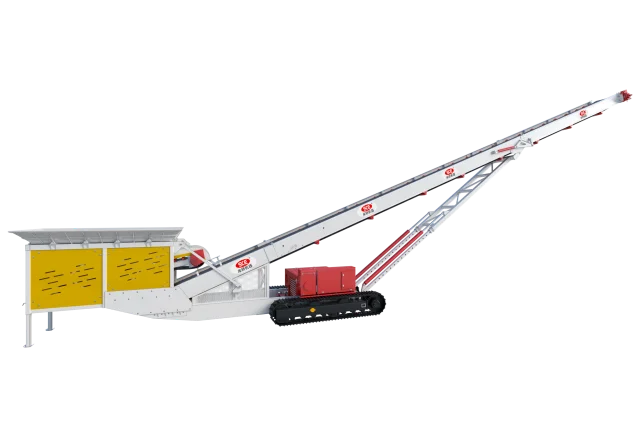

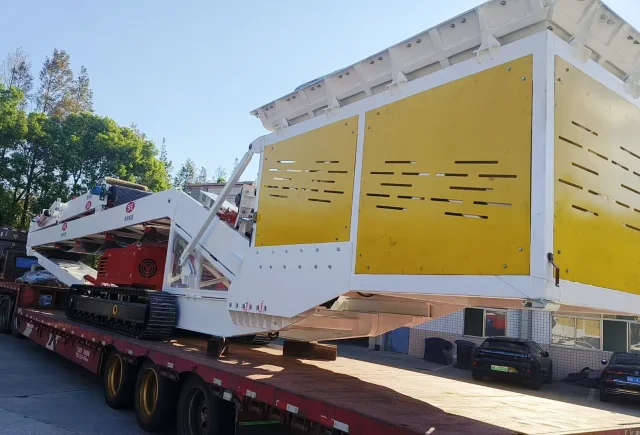

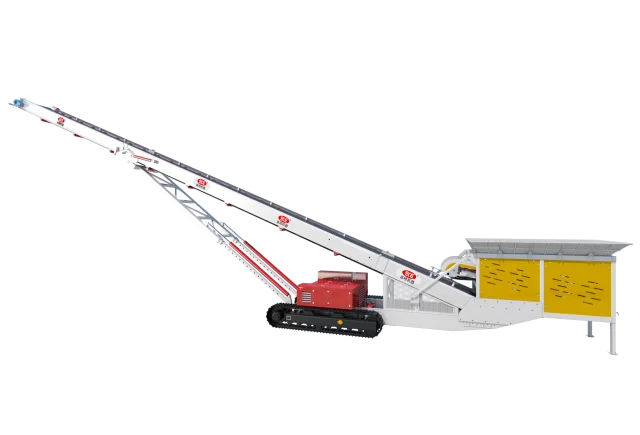

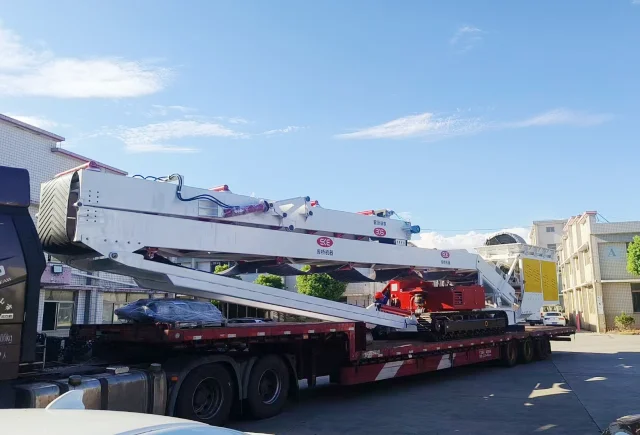

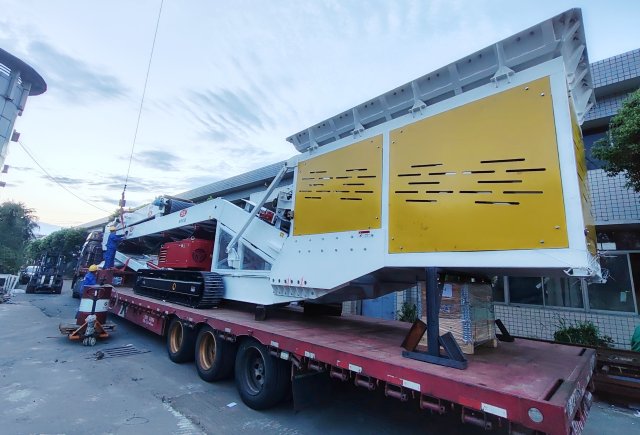

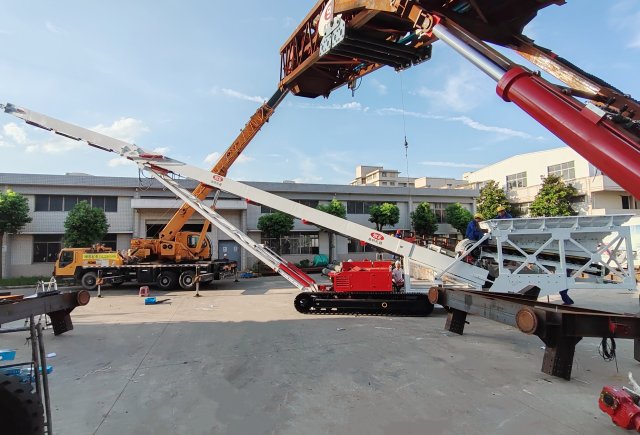

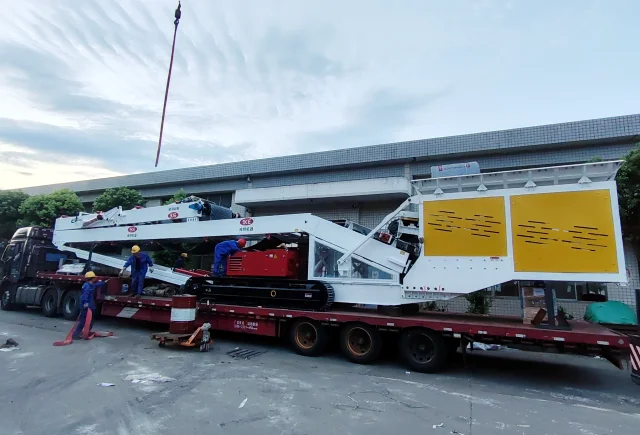

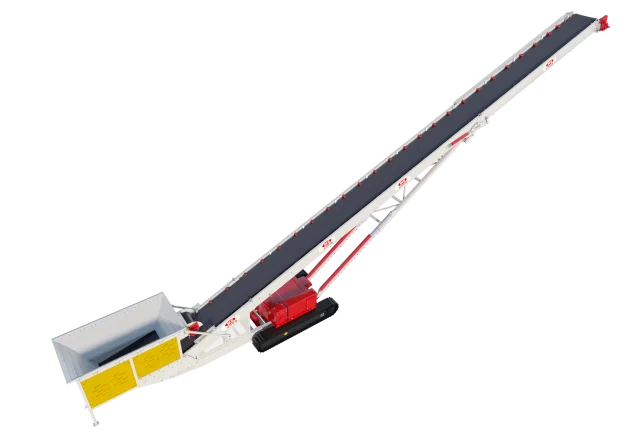

EQUIPMENT GALLERY
