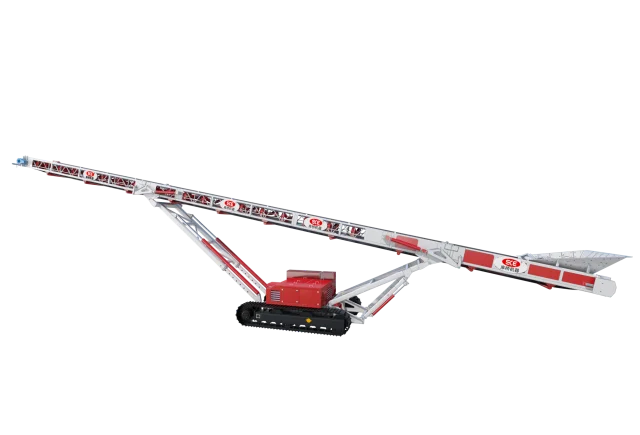

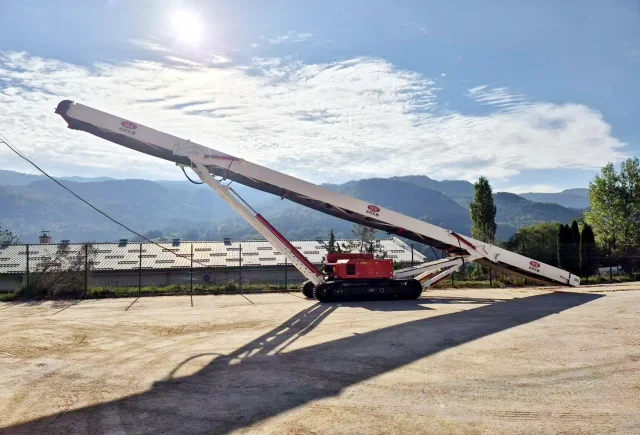

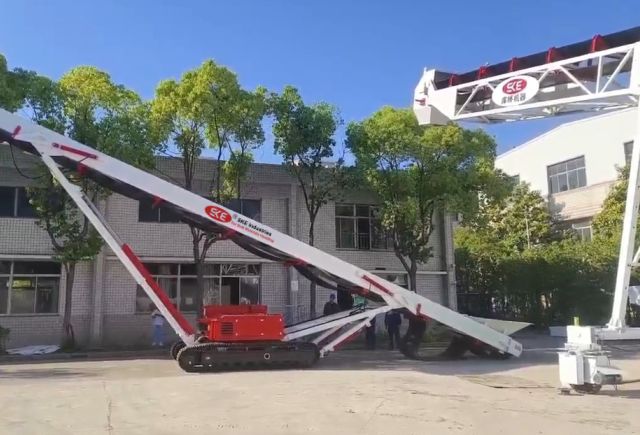

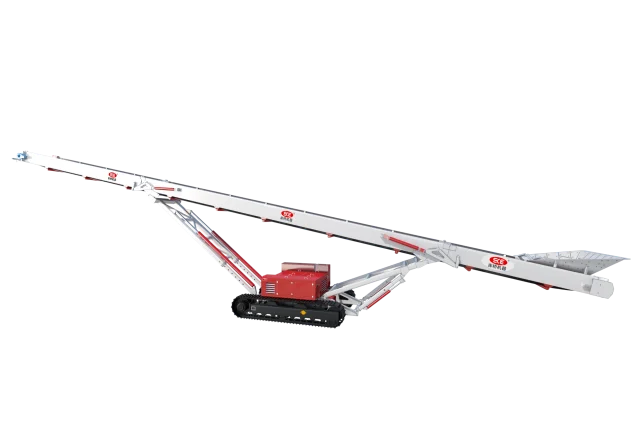

KTB Tracked Stacking Conveyor

KTB tracked stacking conveyor, which is also named tracked stockpiling conveyor, can work singly or combined with other stockpiling equipment, and you can set different heap angles, stockpile height, and stacking position for it to meet the different operation conditions.

  KTB Tracked Conveyor (500TPH)

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

The KTB track-mounted stacker is a very powerful bulk material storage management device. You can apply it in multiple fields:

1. Stockpiling from secondary crushers, screens and shredders.
2. Stockpiling crushed stone, sand and gravel, mineral ores, mulch, woodchip/biomass.
3. Stockpiling construction and demolition waste, top soil, coal, grain etc.

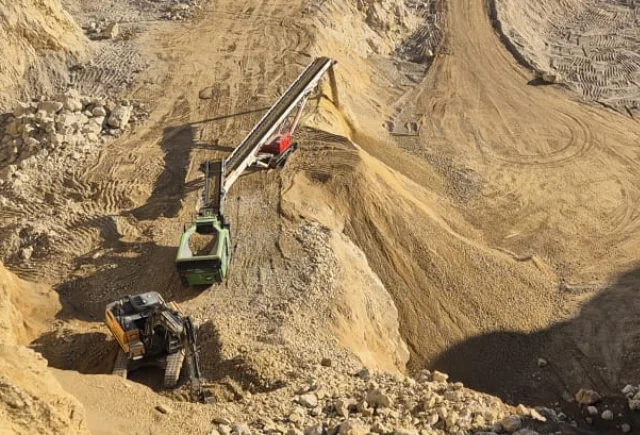

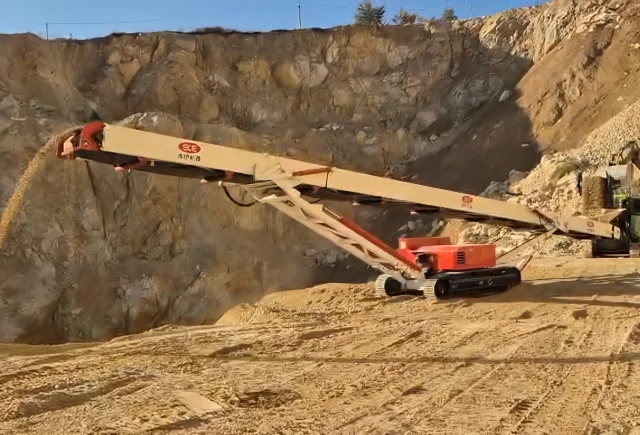

4. Receiving crushed material and stockpiling safely over a quarry face/bench.
5. Working as part of a mobile system on short to medium term projects.
6. Ship and truck loading in a plant.
7. Others.

Advantages

1. Self powered diesel hydraulic tracked conveyor.
2. Steel lined feedboot as standard providing extended wear life.
3. Full hydraulic set-up, no crane required.

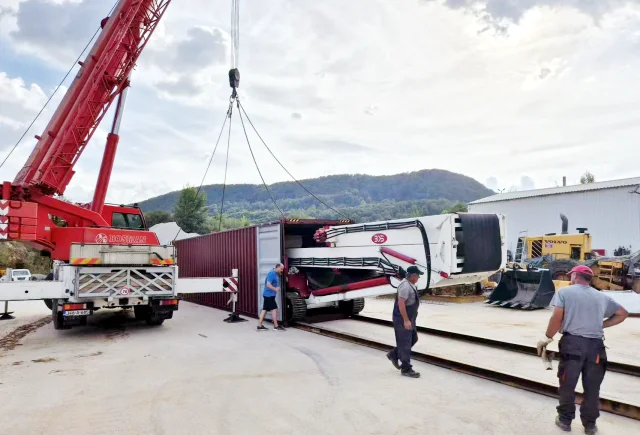

4. Containerised, track in/track out.
5. Hydraulic adjustment for variable feed height reduces impact and provides optimal material transfer.
6. Dual speed tracks for quick and controlled deployment.
7. Fully protected power unit with easy access for service and maintenance.

Tech Datasheet
Model KTB1020
Length (m) 20
Belt Width (mm) 1050
Discharging Height (m) 8.8
Stockpile Volume (m³) 856
Stockpile Volume (t) 1396
Capacity (t/h) 500
1. Discharging Angle is lower than 22°.
2. The reference density is 1.6t/m³.



Model KTB1024
Length (m) 24
Belt Width (mm) 1050
Discharging Height (m) 10
Stockpile Volume (m³) 1500
Stockpile Volume (t) 2400
Capacity (t/h) 500
1. Discharging Angle is lower than 22°.
2. The reference density is 1.6t/m³.



Model KTB1030
Length (m) 30
Belt Width (mm) 1050
Discharging Height (m) 12.5
Stockpile Volume (m³) 2413
Stockpile Volume (t) 3861
Capacity (t/h) 500
1. Discharging Angle is lower than 22°.
2. The reference density is 1.6t/m³.



Model KTB1024T
Length (m) 24
Belt Width (mm) 1050
Discharging Height (m) 10.8
Stockpile Volume (m³) 2085
Stockpile Volume (t) 3340
Max. Capacity (t/h) 1500
1. Discharging Angle is lower than 20°.
2. The reference density is 1.6t/m³.

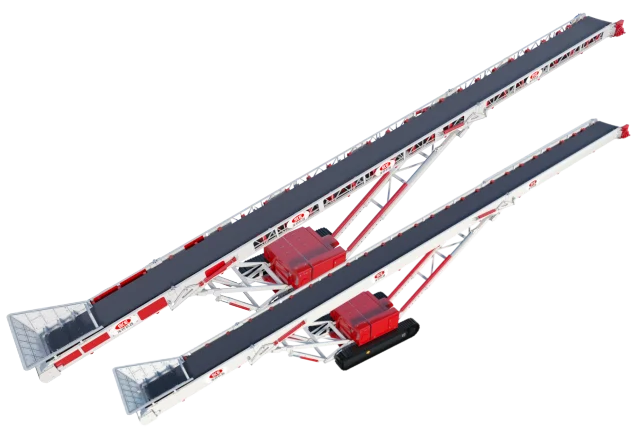

3. Truss frame structure.



Model KTB1031T
Length (m) 31
Belt Width (mm) 1050
Discharging Height (m) 12.7
Stockpile Volume (m³) 3150
Stockpile Volume (t) 5030
Max. Capacity (t/h) 1500
1. Discharging Angle is lower than 20°.
2. The reference density is 1.6t/m³.
3. Truss frame structure.
