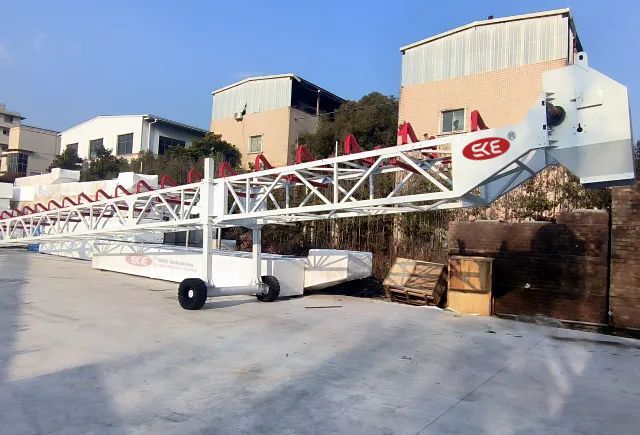

Grasshopper Conveyor | Jump Conveyor | Transfer Conveyor

ZM series grasshopper conveyors, also known as jump conveyor, are able to added or removed from site depending on the transfer distance requirement. The conveying capacity can reach up to 2000t/h and the conveyor length ranges from 12m to 45m.

2024 Bauma China
  • Application
  • Video
  • Features
  • Gallery
  • Datasheet
  • Manufacturing
APPLICATION

The grasshopper conveyors are designed for transferring material in any distances. It is the most cost efficient and environmentally sound method of material transfer. This Jump Conveyor can be utilized in range of industries including quarry, mining, logistic, ports & inland terminals, power station and many more. The mobile transfer conveyor has these applications:

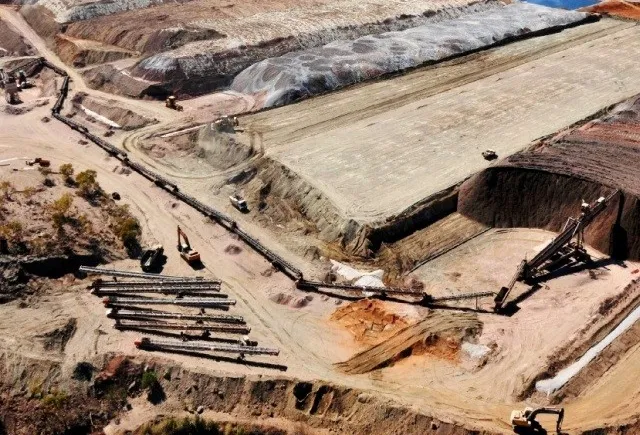

  • Mobile link within pit to primary / secondary processing plant.

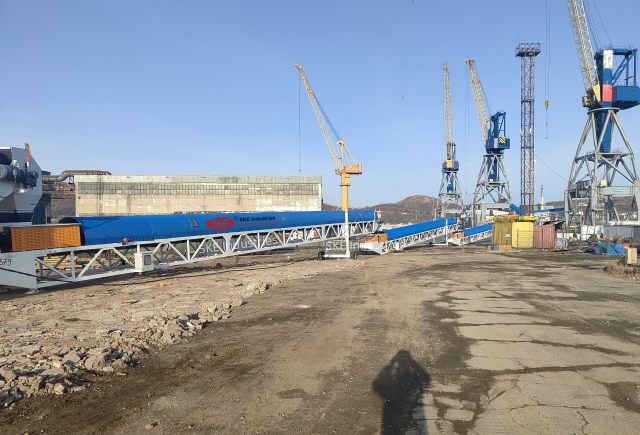

  • Mobile link in port from Truck Unloader / Hopper Feeder to Ship loader.
  • Mobile link to feed Mobile Ship Loading System.
  • Mobile Links from warehouse to Port for Ship Loading/ Ship Unloading.

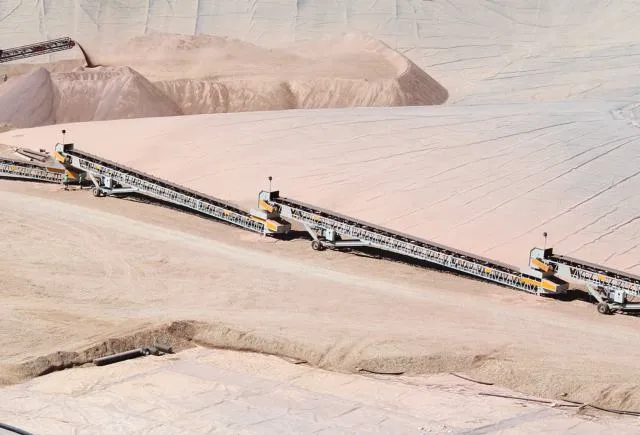

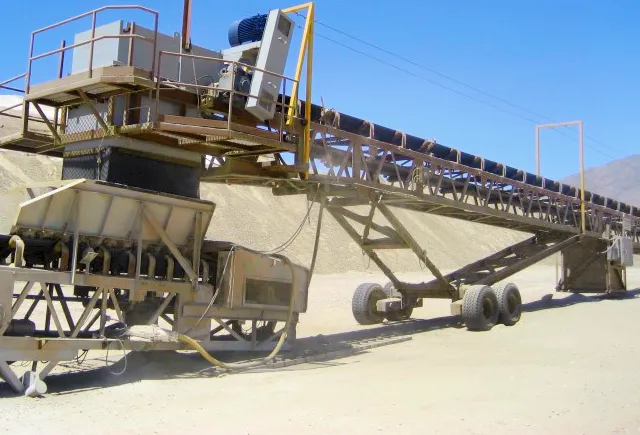

  • Grasshopper Conveyors for ore transferring of heap leaching plant.

VIDEO
Grasshopper Conveyor | Jump Conveyor | Transfer Conveyor
FEATURES
  1. Range of lengths (ranging from 12m to 40m)to suit the specific application.
  2. Can be tracked mounted units with integrated diesel engine for site movement.

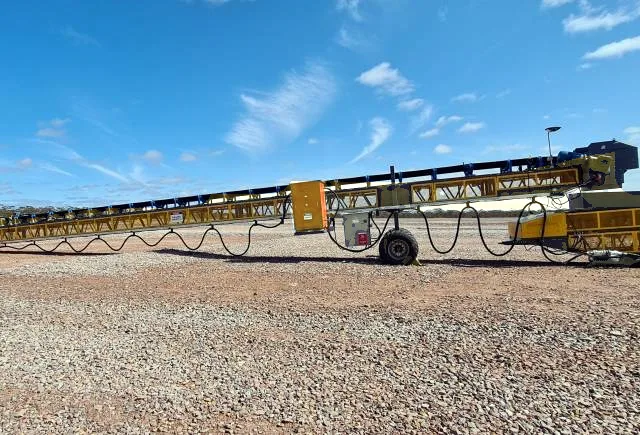

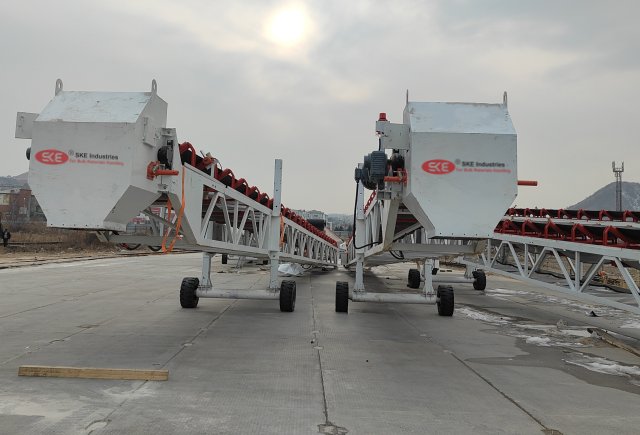

  3. Wheel-mounted for operation on concrete / asphalt ground.

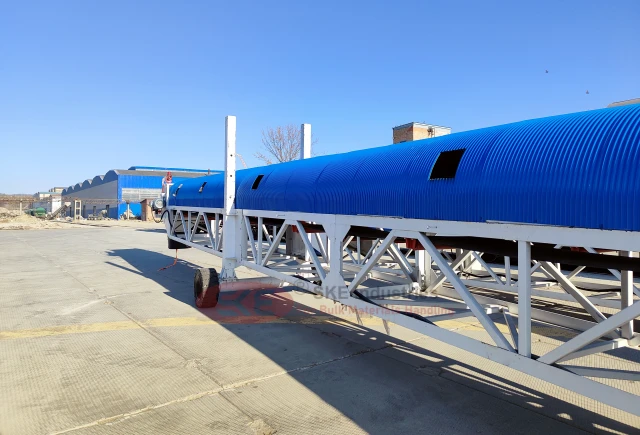

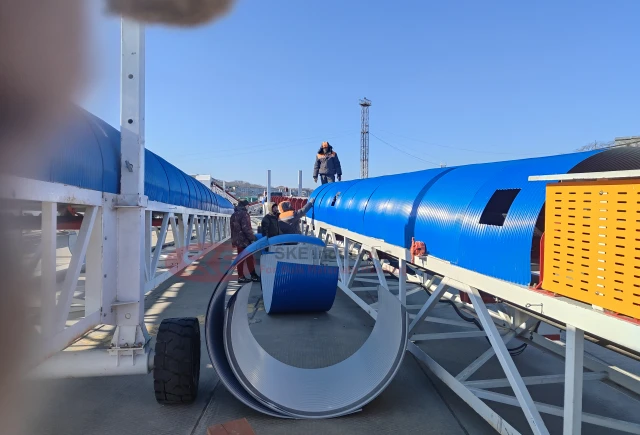

  4. Conveyor cover for dust suppression options for handling range of materials.
  5. Conveying Capacity is up to 2000t/h and more.
  6. Ability to handle up to 300mm (12”) material.
  7. Flexible option compared to fixed overland conveyor systems.
  8. Reduced civil requirements on site.
  9. Can easily move in or out to meet flexible layouts.
  10. Removes the need for a dedicated wheel loader to constantly removing in crushing plant.
  11. Typical set up time of under 10 minutes.
  12. Mobility gives optimum flexibility on site for machine application.

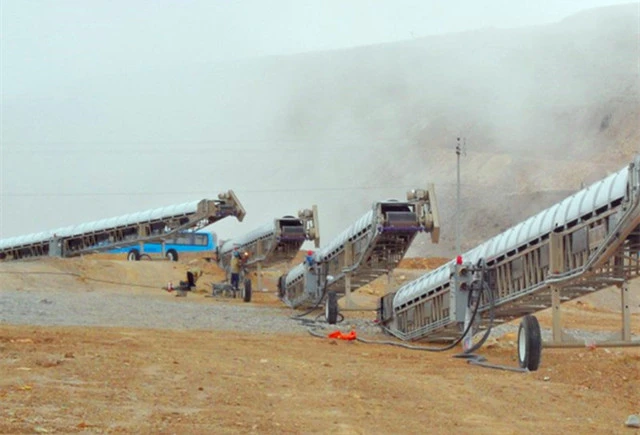

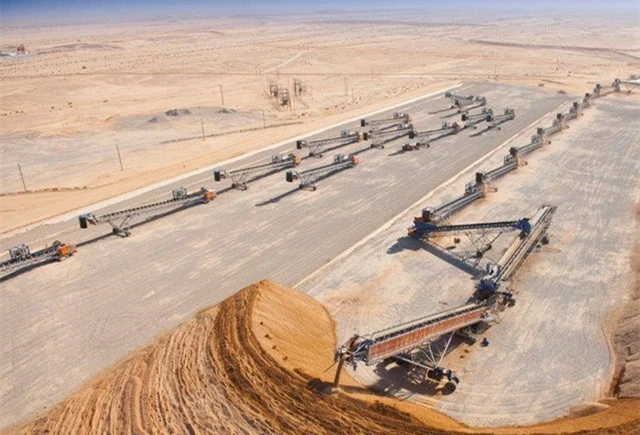

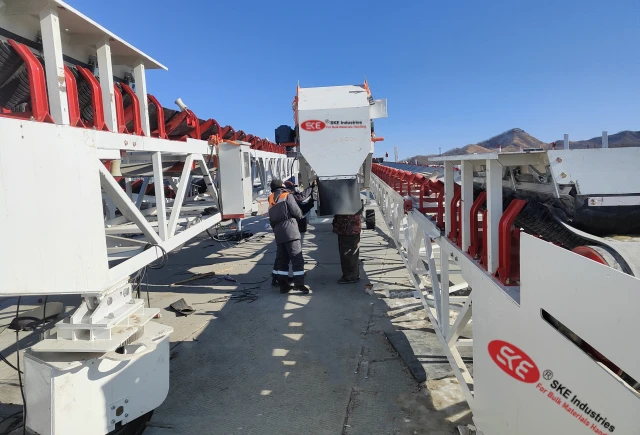

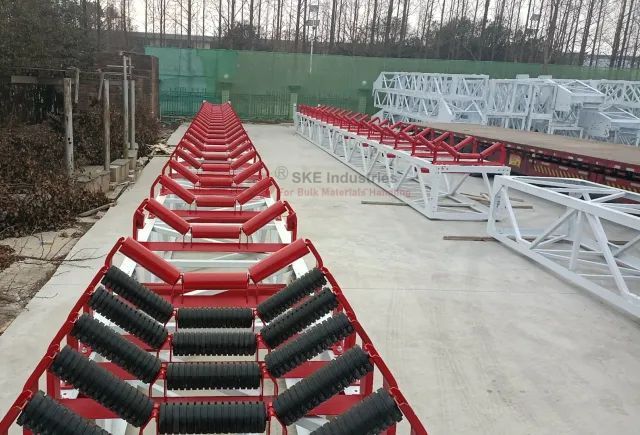

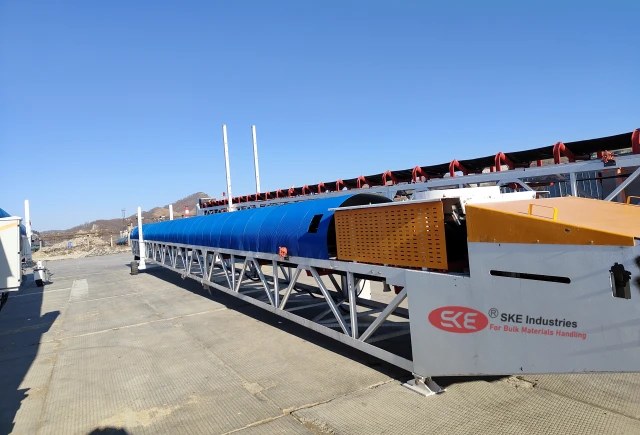

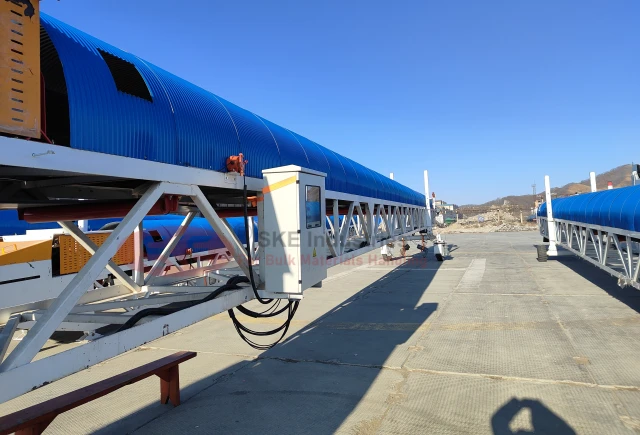

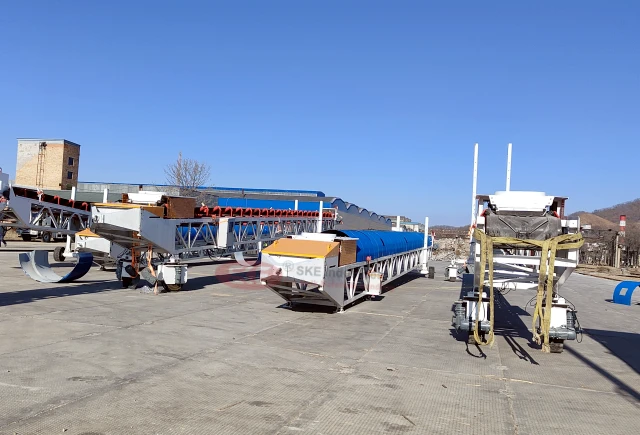

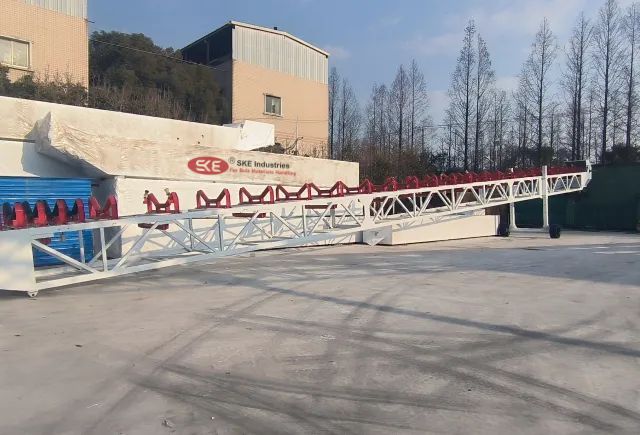

GALLERY
DATASHEET
Grasshopper Conveyor (Imperial)
Model Length Belt Width Conveying Capacity Dischargin Height Conveying Angel
ZM0812 39ft.4” 31” 600t/h 8ft.2” 3°-7°
ZM0821 68ft.9” 11ft.8” 3°-7°
ZM0830 98ft.4” 15ft.4” 3°-7°
ZM1012 39ft.4” 39” 1000t/h 8ft.2” 3°-7°
ZM1021 68ft.9” 11ft.8” 3°-7°
ZM1030 98ft.4” 15ft.4” 3°-7°
ZM1212 39ft.4” 47” 1500t/h 8ft.2” 3°-7°
ZM1221 68ft.9” 11ft.8” 3°-7°
ZM1230 98ft.4” 15ft.4” 3°-7°
ZM1412 39ft.4” 55” 2000t/h 8ft.2” 3°-7°
ZM1421 68ft.9” 11ft.8” 3°-7°
ZM1430 98ft.4” 15ft.4” 3°-7°
Customizable The conveying capacity and conveyor length can be customized according to your needs.

Grasshopper Conveyor (Metric)
Model Length Belt Width Conveying Capacity Dischargin Height Conveying Angel
ZM0812 12m 800mm 600t/h 2.5m 3°-7°
ZM0821 21m 3.6m 3°-7°
ZM0830 30m 4.7m 3°-7°
ZM1012 12m 1000mm 1000t/h 2.5m 3°-7°
ZM1021 21m 3.6m 3°-7°
ZM1030 30m 4.7m 3°-7°
ZM1212 12m 1200mm 1500t/h 2.5m 3°-7°
ZM1221 21m 3.6m 3°-7°
ZM1230 30m 4.7m 3°-7°
ZM1412 12m 1400mm 2000t/h 2.5m 3°-7°
ZM1421 21m 3.6m 3°-7°
ZM1430 30m 4.7m 3°-7°
Customizable The conveying capacity and conveyor length can be customized according to your needs.
