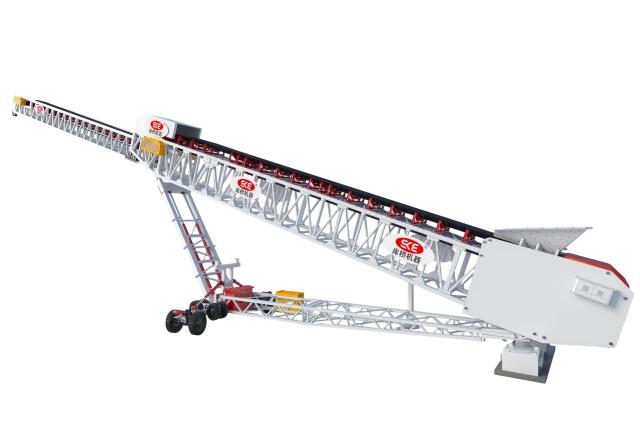

KYD Fixed Radial Telescopic Stacking Conveyor

SKE KYD fixed radial telescoping stockpiling conveyors with extended and hydraulic units are able to stockpile bulk materials via radial travelling moving device . You can get designing, manufacturing, installation, and maintenance services from us.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

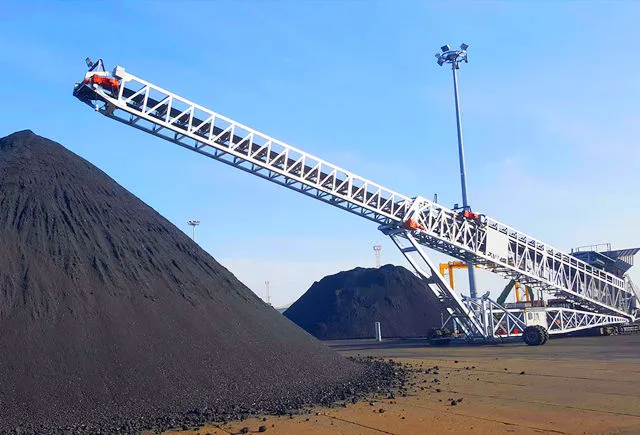

As a professional bulk material warehouse storage stockpiling system manufacture, SKE designed different types of portable and fixed stacking conveyor. Our fixed radial telescopic stockpiling conveyor are widely used as bulk materials handling equipment (stacker & loader & unloader) in metallurgy plant, steel making plant, quarry plant, coal-fired power plant (thermal powder station), cement making plant, large scale concrete mixer plant, river sand and sea sand washing plant, artificial sand plant, fertilizer storing, aggregate manufacturing, wood chips conveying, port and terminals, train and truck loading station, etc.

Advantages
  • You can get high quality mixed materials!

    Radial travel blends material better than conical piles. Windrow stockpiling blends fine, medium, and coarse materials.

  • You can discharge height of stockpiles!

    Adjustable discharge height eliminates material overrun. Variable height keeps proper mix of coarse and fine materials.

  • Avaibale operation in cold weather!

    Due to slide-track system, our equipment are reliable in cold weather and there are no area for fugitive material to build up.

  • With additional stability designs!

    Using large diameter rollers to support stringer conveyor. And center pivot design supports weight equally on all rollers.

  • With enhanced undercarriage!

    Designed with more steel for rock solid bracing. Fully-braced inner and outer structures. Perimeter positioning of cylinders increases structural support.

  • Stinger safety stop units!

    Continuously monitors cable tension to stinger conveyor. Immediately reacts if breakdown of cable occurs. Spring loaded, mechanical device is field tested and proven.

  • Automation and step-by-step controling system!

    Programmable automation effortlessly controls motion. With our PLC remote controling system, you can easily control our fixed radial telescopic stacker conveyor step by step.

  • Low profile

    Eliminate reliance on transfer conveyor for loading. Accepts feed directly from portable crushers and screens. Minimize the number of loads in portable spread. Reduce space requirements with less equipment.

Tech Datasheet

KYD S-model SPECIFICATIONS
Operating Dimension (m) 33 39 40.8 45 47.4
Conveyor length (A) (m) 33.5 39.6 41.5 45.7 48
Highest Extended Discharge Height (B) (m) 12.6 13.4 13.4 16.1 14.8
Lowest Extended Discharge Height (C)(m) 5.7 4.9 5.6 5.9 5.9
Highest Retracted Discharge Height (D)(m) 7.5 7.9 8.2 9.4 9.4
Lowest Retracted Discharge Height (E)(m) 3.6 3.1 3.8 3.8 3.7
Anchor Pivot to Center of Axle (F) (m) 12.1 15 16.9 16.7 21.6

SKE KYD S-model fixed radial telescoping stockpiling conveyors specifications under operation
Conveyor Length (m) 33 39 40.8 45 47.4
  1. Maximum Pile Height(m)
11.9 13.1 13.1 15.2 14.4
(E) Lowered Stockpile Height (m) 4.7 4.8 4.5 5 5.7
  1. Anchor Pivot to Center of Pile (m)
30.8 35.6 36.6 40.3 44.6
Ration Stockpiling Angle Stockpile Volume in Cubic Yards (m3)
Conical stockpile(m) 3200 4700 5300 7100 7400
90° Radial stockpile (m³) 15000 20900 23000 31300 31300
180° Radial stockpile(m³) 26300 37000 40800 55500 55200
270° Radial stockpile (m³) 37600 53000 58500 79800 79100

SKE KYD L-model fixed radial telescoping stockpiling conveyors specifications
Operating Dimension (m) 39.6 45.7 51.8 57.9 64
Conveyor length (A) (m) 39.6 45.7 51.8 57.9 64
Highest Extended Discharge Height (B) (m) 13.5 16 18.5 20.5 21.8
Lowest Extended Discharge Height (C)(m) 6 6 4.5 5 5.2
Highest Retracted Discharge Height (D)(m) 8 9.5 11 11 12.5
Lowest Retracted Discharge Height (E)(m) 2.9 3.2 3.2 3.2 3.5
Anchor Pivot to Center of Axle (F) (m) 14.5 17 22.5 22.5 25

KYD L-model Specifications under operation
Conveyor Length (m) 39.6 45.7 51.8 57.9 64
  1. Maximum Pile Height (m)
13.5D(m) 15.2 17.7 20.1 21.1
(E) Lowered Stockpile Height(m) 3.4 3.9 3.6 4.3 5.2
  1. Anchor Pivot to Center of Pile (m)
35.4 40.9 48.8 52.2 57.6
Conical Stockpile (m) 5100 7000 9900 14300 20856
90° Radial Stockpile (m³) 21200 30700 42900 63000 88375
180° Radial Stockpile (m³) 37200 54300 76000 111500 155894
270° Radial Stockpile (m³) 53300 78000 108900 160000 223980
Options for fixed radial telescopic stacking conveyor
MAINTENANCE ENVIRONMENT OTHERS
Roller Groups Mainframe Covers Compensation Linkage
Return Roller Stinger Conveyor Cover Belt Scale
Self-Aligning Idlers Spray Bars Onboard Counterweight
Impact Idlers Epoxy Paint Belting Upgrade
Auto Greaser Galvanized Paint Wireless Remote Control
Walkways Cold Weather Kit Dual Power Source
Conveyors Machines
