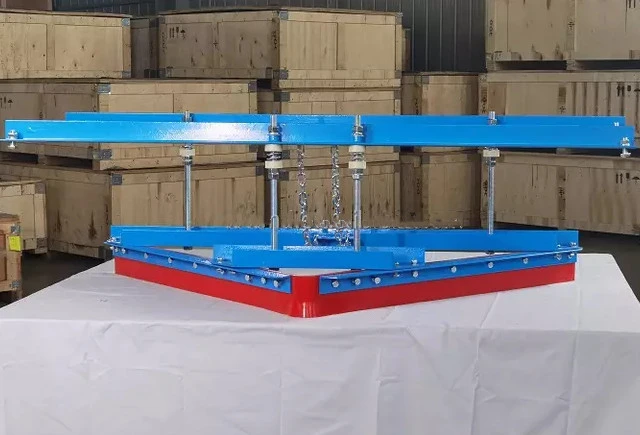

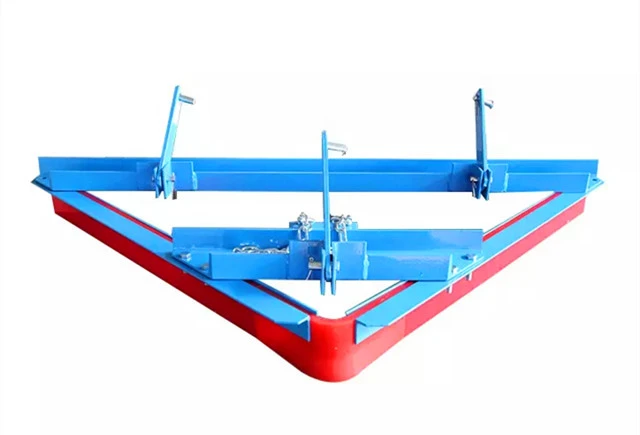

V Return Belt Cleaner

SKE V return belt cleaner installed on the non-working surface of conveyor belt, the main purpose is to remove the attached bulk material on the non-working surface of the belt and discharge materials to both sides.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

The v return belt cleaner is mainly used to remove most of residual material attached to the non-working surface of the conveyor belt and discharge materials to both sides. You can apply it in industries of quarrying, mining, port, grain, power, steel, metallurgy, etc.

Advantages

1. The v return belt cleaner suitable for all belt cleaning under various working conditions.
2. The V return belt cleaner is one of the most widely used cleaners in the cleaning system, the V return belt cleaner installed on the non-working surface of conveyor belt, the main purpose is to remove the attached bulk material on the non-working surface of the belt and discharge materials to both sides.
3. The v return belt cleaner is mainly used to clean the belt with a belt width of 650 ~2200 mm.

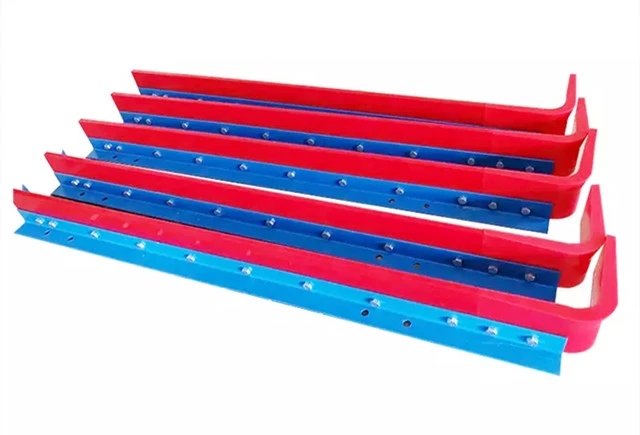

4. The blades of V return cleaner is made of polyurethane material, the polyurethane (PU) has good performance of wear resistant, corrosion resistant, anti-hydrolysis, belt friendly, no sticky material and long service life.

Tech Datasheet
Secondary Belt Cleaner
Blade hardness(Shore A) 90
Tensile strength 31 MPA
Elongation at break 4.1
Abrasion 30/mm2
Density 1.11g/cm3
Belt Width(mm) 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200
L 620, 788, 938, 1138, 1360, 1610, 1810, 2060, 2280, 2470, 2700
L1 480, 600, 730, 910, 1160, 1410, 1610, 1844, 2030, 2270, 2500
L2 593, 615, 743, 920, 1175, 1419, 1623, 1529, 1560, 1730, 1960
L3 400, 600, 700, 900, 1100, 1400, 1600, 1500, 1500, 1700, 1900
α 60°, 75°, 80°
