Primary Belt Cleaner

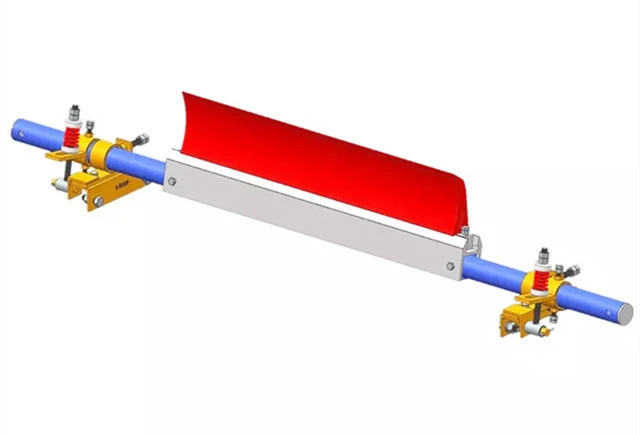

SKE primary belt cleaner installed on the positive position of the conveyor pulley, the main purpose is to remove most of the residual material attached to the surface of the belt.

Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

  • Applications
  • Advantages
  • Datasheet
  • Related

The purpose of primary belt cleaners is to remove any coarser material that's stuck to the conveyor belt after it leaves the head pulley, and to keep the belt as clean as possible. You can apply it in industries of quarrying, mining, port, grain, metallurgy, etc.

Light duty Cleaner for Belts (<600TPH)

Light-duty applications are often found in construction, where only small volumes are transported. Belts typically vary from 500 mm to 1200 mm wide and they tend to be in poorer condition, which can influence cleaning efficiency.

Medium duty Cleaner for Belts (600-4000TPH)

Medium applications are typically found in both construction and mining, where conveyors run with higher belt speeds, belts vary from 1000 mm to 1600 mm wide, and materials are abrasive. Fast service and quick cleaner and belt replacements become more important due to the high value/tonnage of materials.

Heavy duty Cleaner for Belts (>=4000TPH)

Heavy-duty applications are often found in mining, where a high tonnage of abrasive material needs to be transported quickly and efficiently. Mines operate 24/7 and downtime is expensive, so rapid service and replacements are essential. Belts are typically 1400 mm to 3000 mm wide. Belt speeds average 4-6 m/s and chunks can be large, so impacts are forceful. There is a high risk of vibration, temperature changes and extreme moisture. Specific materials suited to H environments include high-performance engineered polyurethanes and extra-fine tungsten carbides.


1. The welding area is smooth and has no bubbles and bumps, the bearing capacity is stronger.
2.The polyurethane cleaner blade has no bubbles on surface, enhancing wear resistance.
3. The applicable temperature is -45 ℃~60 ℃.
4. Has aluminum core cleaner blade and fixing slot cleaner blade for choice.
5. Using high strength carbon steel - 35 # steel.
6. Can choose integral cleaner blade, achieve faster replacement.

Primary Belt Cleaner
Blade hardness(Shore A) 90
Tensile strength 31 MPA
Elongation at break 4.1
Abrasion 30/mm2
Density 1.11g/cm3
Belt Width(mm) 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200
Blade Width(mm) 385, 635, 785, 985,1185, 1385, 1785, 1985, 2185
AOL(G) 1200, 1300, 1500, 1700, 1900, 2100, 2300, 2500, 2700, 2900
