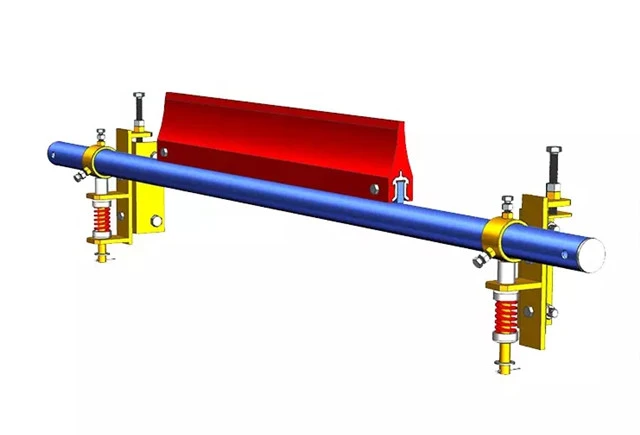

Secondary Belt Cleaner

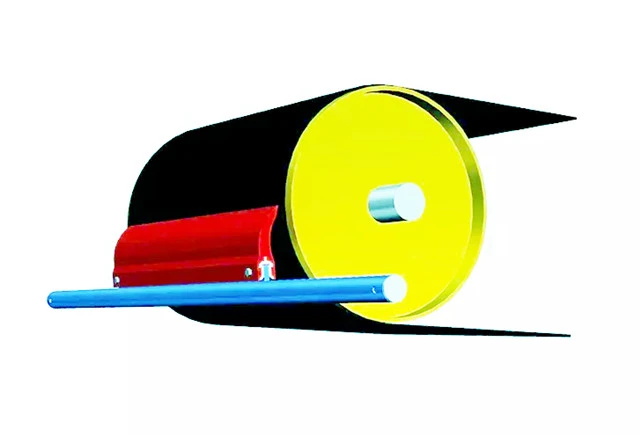

SKE secondary belt cleaner installed at the return section of the conveyor pulley, the purpose is to remove residual material attached on the Belt.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

The secondary belt cleaner is mainly used to remove most of residual material attached to the surface of the conveyor belt. You can apply it in industries of quarrying, mining, port, grain, power, steel, metallurgy, etc.

Advantages

1. The welding area is smooth and has no bubbles and bumps, the bearing capacity is stronger.

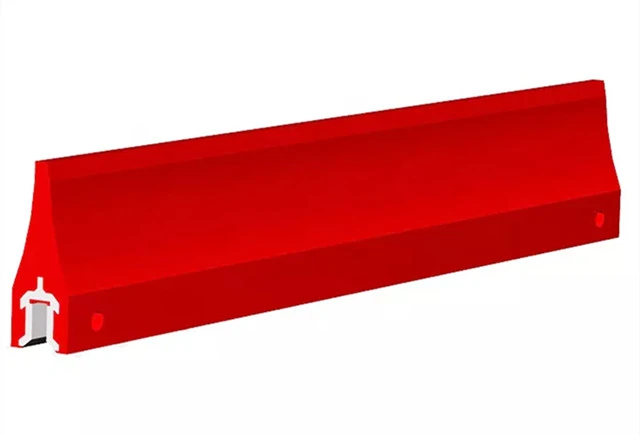

2.The polyurethane cleaner blade has no bubbles on surface, enhancing wear resistance.
3. The applicable temperature is -45 ℃~60 ℃.
4. Has aluminum core cleaner blade and fixing slot cleaner blade for choice.
5. Using high strength carbon steel - 35 # steel.
6. Can choose integral cleaner blade, achieve faster replacement.

Tech Datasheet
Secondary Belt Cleaner
Blade hardness(Shore A) 90
Tensile strength 31 MPA
Elongation at break 4.1
Abrasion 30/mm2
Density 1.11g/cm3
Belt Width(mm) 500, 650, 800, 1000, 1200, 1400, 1600, 1800, 2000, 2200
Blade Width(mm) 450, 600, 750, 900, 1200, 1350, 1500, 1800, 2000, 2200
AOL(G) 1200, 1300, 1500, 1700, 1900, 2100, 2300, 2500, 2700, 2900
