DTⅡ (A) Belt Conveyor

DTⅡ (A) belt conveyor is an upgraded version of DTII. According to the applications of DTII belt conveyor in the past 8 years, we used the latest national standards of bearings, fasteners, special materials, manufacturing & assembly technologies to develop DTⅡ (A) belt conveyor.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

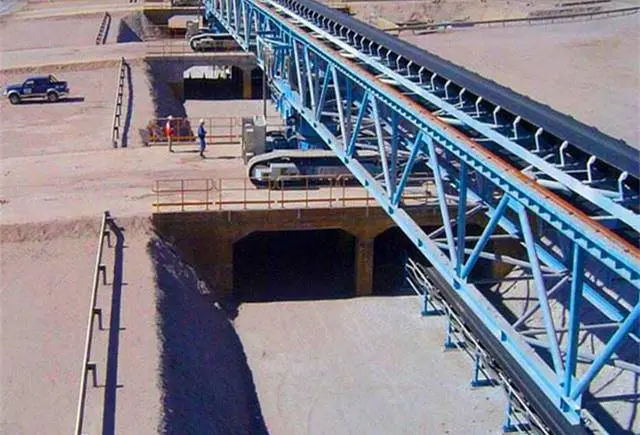

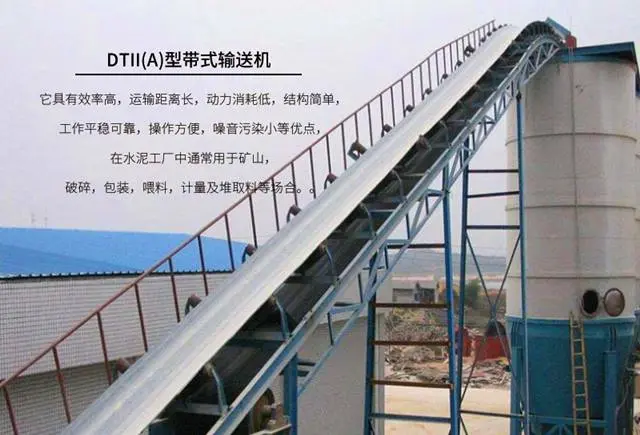

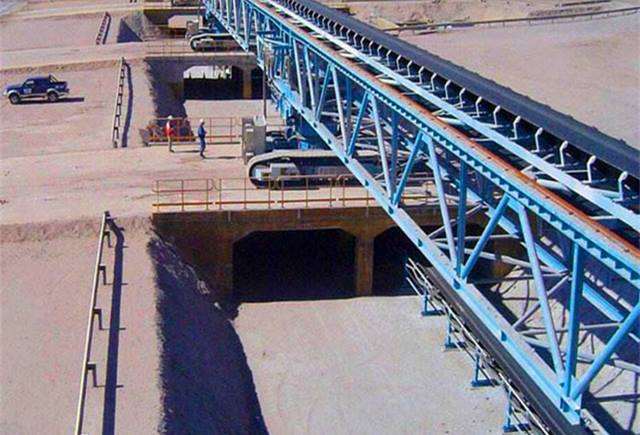

The new type belt conveyor can work in the high temperature, cold, humid, acid, alkaline, explosive, flammable environment with special protection unit with abilities of heat-resistance, cold-resistance, waterproof, anti-corrosion, explosion-proof, flame retardant and so on. It can be widely used in metallurgy, mining, coal, port, power station, building materials, chemical industry, light industry, machinery, petroleum and other industries. Some usal uses: ore conveying, aggregate conveying, stockpiling mangment in bin and open-pit, in-pit plant conveying, ship loading and unloading, truck loading and unloading, railway train loading and unloading, materials plant reclaiming, etc.

Advantages
  • Great improvement on the basis of DTⅡ

    According to the using experience of our customers in the latest 8 years,  we expanded the types, improved component structure, and fixed some errors. In the new type, we introduce the newest national standards of bearing, fasteners, special materials, and manufacturing & assembly technologies.

  • Strong capability for translating bulk materials

    The conveying system can be composed of single or multi-unit, and transport various bulk materials and articles. DTⅡ(A) belt conveyor are able to run in adverse weather conditions such as high temperature, cold weather, corrosion, etc. It can translate bulk materials below 17104 cubic meters per hour.

  • Free conveyors and system designing for you

    SKE is a technology company and have more than 20 rich experienced R&D engineers. We can help our customers design single belt conveying machine and the completed bulk conveying system according to their requirements. We also can send our engineers to the local site doing on-site survey.

  • Having wide range of applications

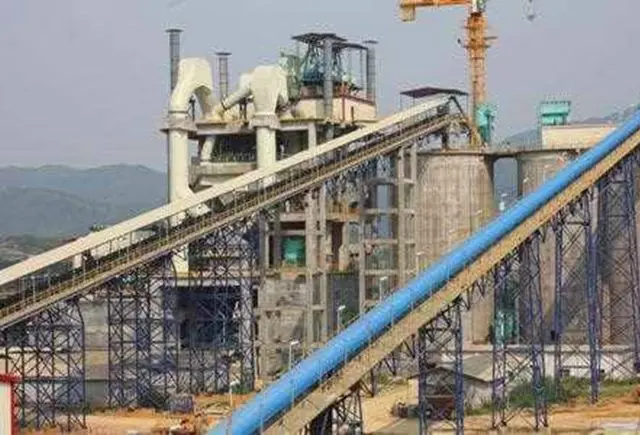

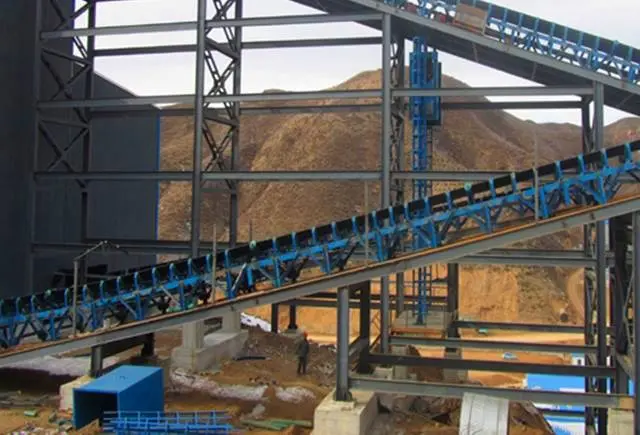

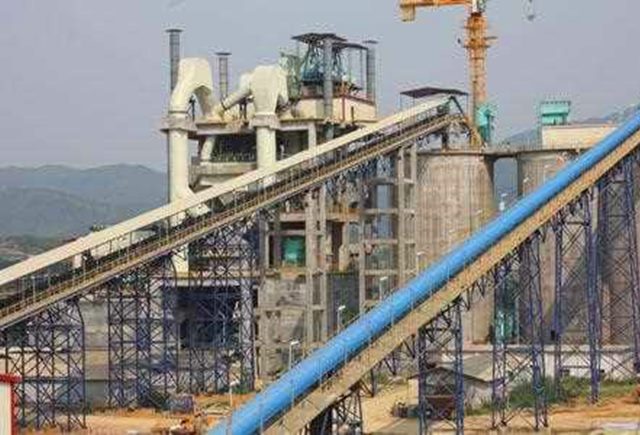

    It can be used in different fields including port & terminal ship loading &unloading, railway station train loading & unloading, truck loading & unloading, raw material conveying in in-pit plant of metallurgy, building materials, cement, thermal power, concrete mixing, and sand making plant.

Tech Datasheet
Specifications of DTⅡ (A) type belt conveyor system
Belt Width(mm) Conveying Capacity Iv(m3/h)
Belt Speed v(m/s)
0.8 1.0 1.25 1.6 2.0 2.5 3.15 4.0 (4.5) 5.0 (5.6) 6.5
500 69 87 108 139 174 217
650 127 159 198 254 318 397
800 198 248 310 397 496 620 781
1000 324 405 507 649 811 1014 1278 1622
1200   593 742 951 1188 1486 1872 2377 2674 2971
1400   825 1032 1321 1652 2065 2602 3304 3718 4130
1600         2186 2733 3444 4373 4920 5466 6122
1800         2795 3494 4403 5591 6291 6989 7829 9083
2000         3470 4338 5466 6941 7808 8676 9717 11277
2200             6843 8690 9776 10863 12166 14120
2400             8289 10526 11842 13158 14737 17104
