DX Steel Cord Belt Conveyor

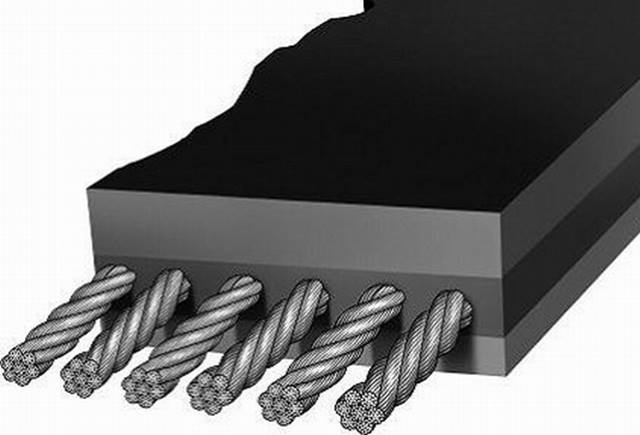

DX steel cord belt conveyor is a king of special belt conveying equipment. Because of steel cord belt installed, we can use it transport large capacity and heave duty bulk materials in a very long distance easily. SKE is steel cord belt conveyor system manufacturer. You can contact with for a free quotation!

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

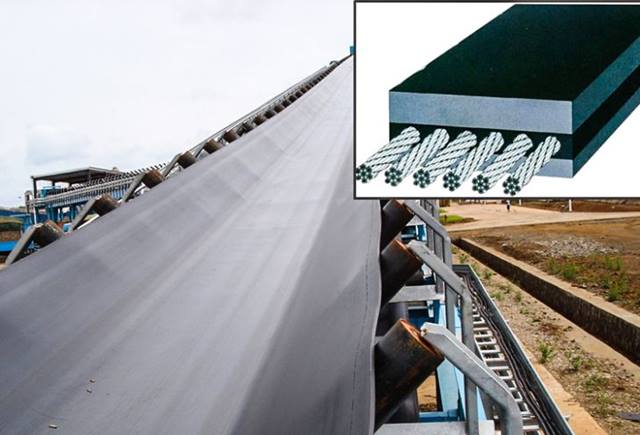

Steel cord belt conveying machine can continuously move large-capacity bulk materials in a very long distance. It has been widely used in metal ore mining, coal mining, non-metal mineral mining, port coal transportation, cement plant raw material transportation, large concrete mixing station, gravel wharf, thermal power plant raw material conveying, etc. The working temperatures range from-20 to 40 ℃. If it is installed to work very cold environment , we should fixed a heating conditions for driving units. The conveying distance is very long, single units can reach tens of kilometers. We can use it in open-pit, and we’d better install it with walking corridor, rain cover and dust proof.

Advantages
  • Abilities of adapting large-span temperature

    The steel cord belt conveyor can work in the range of -20~40℃ with heating conditions installed.

  • Large carrying capacity and long conveying distance

    A single machine conveying distance can reach tens of kilometers with capacity of 9500 cubic meters per hour.

  • Long service life and low use cost

    The service life of steel cord belt conveyor is 2-3 times than the normal. It can work high efficiency with less power and capital investment.

  • Meet strict environment protection rules

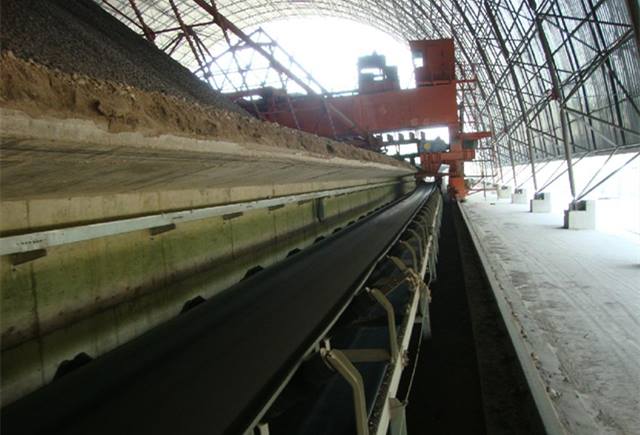

    It can work in open-pit, but we usually design and install steel cord belt conveyor system with walking corridor and protection covers for water and dust.

Tech Datasheet
Characteristics of DX steel cord belt conveyor

Belt width(mm)

Models

Strength of steel cord conveyor belt  Gx,N/mm Belt Speed m/s
650 800 1000 1250 1600 2000 2500 3000 3500 4000
Maximum allowable tension,KN 2.0 2.5 3.15 4.0 5.0
800 DX3 52 64 80 100 128 160 200 240 280 320 - -
1000 DX4   80 100 125 160 200 250 300 350 400 - -
1200 DX5     120 150 192 240 300 360 420 480 -
1400 DX6       175 224 280 350 420 490 560
1600 DX7         256 320 400 480 560 640
1800 DX8         288 360 450 540 630 720
2000 DX9           400 500 600 700 800

Attention:
1: According to the belt width, we can divide our products into 51 models.
2: We can fix b1200 with driving units(v=5.0m/s), but it is not recommended.
3: The maximum tension is calculated according to safety factor n=10.

Conveying capacity of DX steel cord belt conveyor
Models Belt Width(mm) Belt Speed(m/s)
2.0 2.5 3.15 4.0 5.0
Conveying Capacity(t/h)
DX3 800 388-550 485-688 612-865
DX4 1000 632-888 790-1110 1000-1400
DX5 1200 926-1300 1158-1625 1460-2050 1852-2600
DX6 1400 1276-1800 1595-2250 2010-2830 2552-3600 3190-4500
DX7 1600 1700-2380 2125-2975 2680-3850 3400-4760 4250-5950
DX8 1800 2180-3070 2725-3838 3440-4840 4360-6140 5450-7675
DX9 2000 2740-3840 3425-4800 4230-6050 5480-7680 6850-9600
