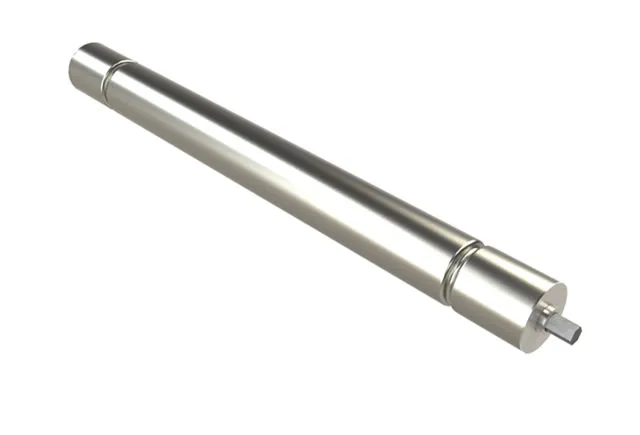

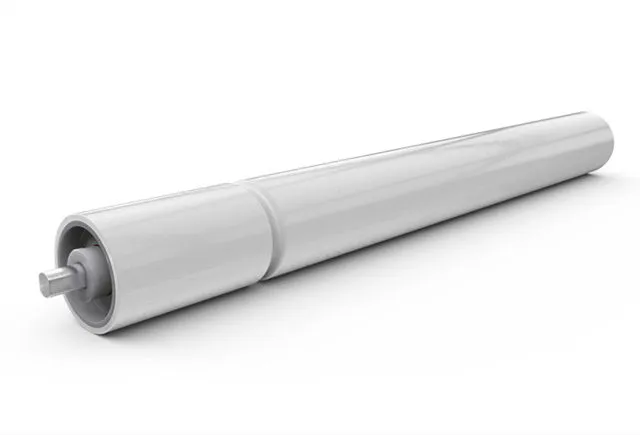

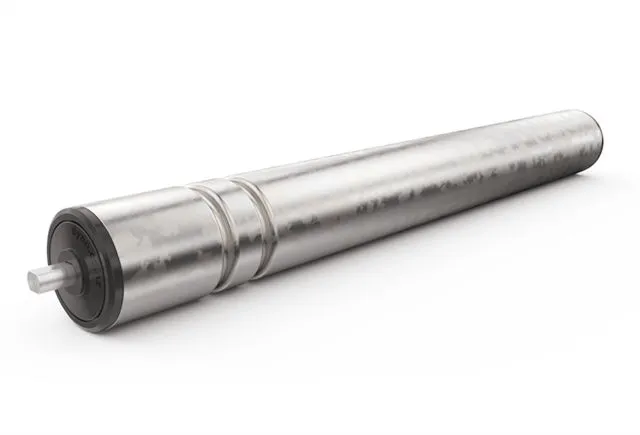

Our grooved conveyor rollers are grooved to suit varying diameters of round drive belts and available for use in either Lineshaft or 24V DC Motorised Roller Conveyors.
Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

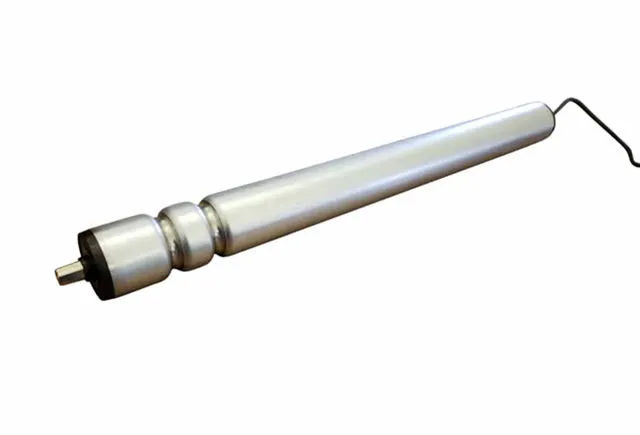

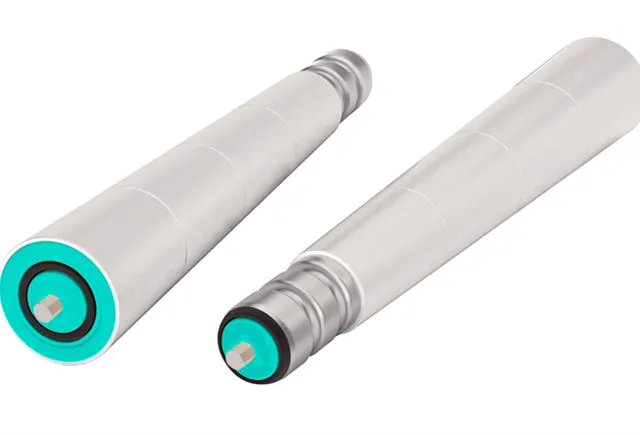

SKE Conveyor grooved conveyor rollers are perfect for line shaft conveyors or for systems that utilize motorized conveyor rollers as the driving device and grooved rollers as the slave roller. Although single and double grooved rollers are by far the most popular type of roller, SKE Conveyor can locate grooves anywhere along the roller and/or put multiple grooves on one roller.
| Grooved Conveyor Rollers | ||
| Tube Size | Spindle Option | Static Capacity* |
| 40mmx1.5mm | ø10mm, ø12mm, ø15mm, 8mm & 11mm Hex | 100kg |
| 50mmx1.5mm | ø10mm, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 100kg |
| 50mmx2mm | ø10mm, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 60mmx2mm | ø10mm, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 70mmx3mm | ø5/8″ & 11mm Hex | 350kg |
| 80mmx2mm | ø5/8″, ø20mm, 11mm & 9/16″ Hex | 400kg |
| 1 1/2″ x 16 SWG | ø10mm, ø12mm, ø15mm, 8mm & 11mm Hex | 100kg |
| 2 1/2″ x 10 SWG | ø5/8″, ø3/4″, 11mm, 9/16″ & 17mm Hex | 300kg |
| 3″ x 10 SWG | ø5/8″, ø3/4″, 11mm & 9/16″ Hex | 400kg |
| Grooved Numbers | Single or Multi (1,2,3,4 grooved) | |
| Bearing Options | Non-Precision | |
| Semi-Precision | ||
| Precision | ||
| Cover Options | Mild Steel (Standard) | |
| Galvanized | ||
| Stainless | ||
| Heat Treated | ||
| Polyurethane | ||
| Ultrex | ||
| Chrome | ||
