Minimal effort required in the movement of goods whether it is manual assistance or gravitational force. Our gravity conveyor rollers range is suitable for loads of up to 400kg.
Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

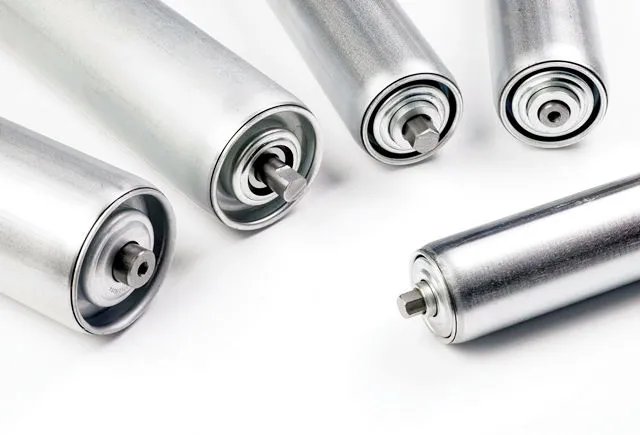

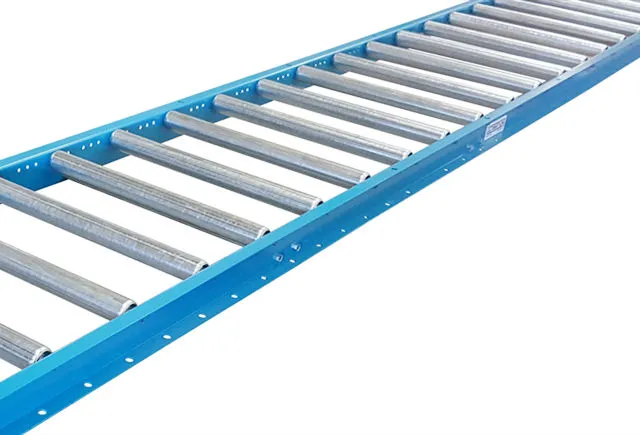

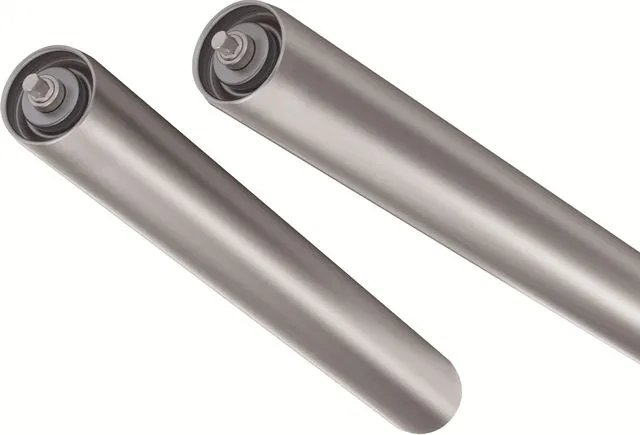

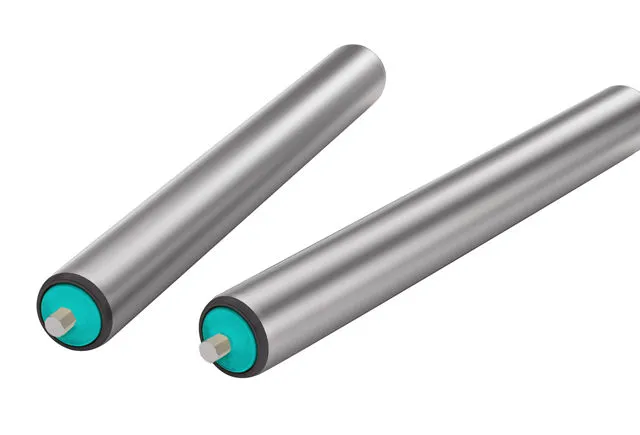

Gravity conveyor rollers can be a great way to transport your goods or raw materials from A to B without the need for an external power source. Relying on the action of gravity to move products forward and downwards, gravity rollers provide low friction, highly efficient answer to many common product movement requirements.
| Gravity conveyor roller- Heavy Duty | ||
| Tube Size | Spindle Option | Weight Bearing |
| 50mmx1.5mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 50mmx2mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 60mmx2mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 70mmx3mm | ø5/8″, & 11mm Hex | 350kg |
| 80mmx2mm | ø5/8″, ø20mm, 11mm & 9/16″ Hex | 400kg |
| 88.9mmx2.9mm | ø5/8″, ø20mm, 11mm & 9/16″ Hex | 400kg |
| 2″ x10 SWG | ø8mm, ø10mm, ø7/16″, ø12mm, ø14mm, ø15mm, 8mm & 11mm Hex | 200kg |
| 2 1/2″x10 SWG | ø5/8″, ø3/4″, 11mm, 9/16″ & 17mm Hex | 300kg |
| 3″x10 SWG | ø5/8″, ø3/4″, ø20mm, 11mm & 9/16″ Hex | 400kg |
| Gravity conveyor roller- Light Weight | ||
| Tube Size | Spindle Option | Weight Bearing |
| 40mmx1.5mm | ø8mm, ø10mm, ø7/16″, ø15mm, 8mm & 11mm Hex | 160kg |
| 50mmx1.5mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø15mm & 11mm Hex | 160kg |
| 50mmx2mm | ø8mm, ø10mm, ø7/16″, ø12mm, ø15mm & 11mm Hex | 160kg |
| 60mmx2mm | ø10mm, ø12mm & 11mm Hex | 160kg |
| 1″x18 SWG | ø1/4″, ø8mm & 8mm Hex | 30kg |
| 1 3/8x18 SWG | ø8mm & 8mm Hex | 70kg |
| 1 1/2″x16 SWG | ø8mm, ø10mm, ø7/16″, ø12mm, ø15mm, 8mm & 11mm Hex | 100kg |
| Bearing Options | Non-Precision | |
| Semi-Precision | ||
| Precision | ||
| Cover Options | Mild Steel (Standard) | |
| Galvanized | ||
| Stainless | ||
| Heat Treated | ||
| Polyurethane | ||
| Ultrex | ||
| Chrome | ||
