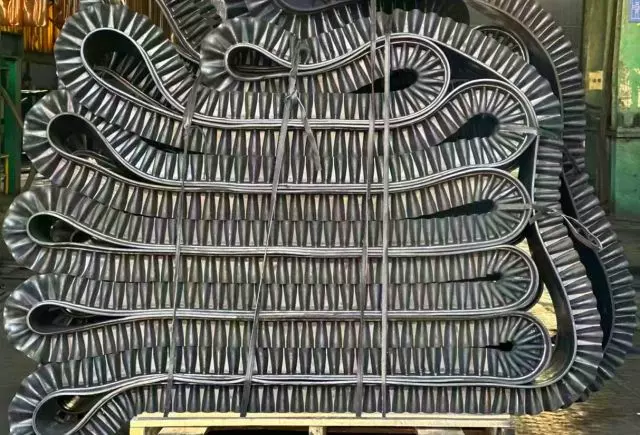

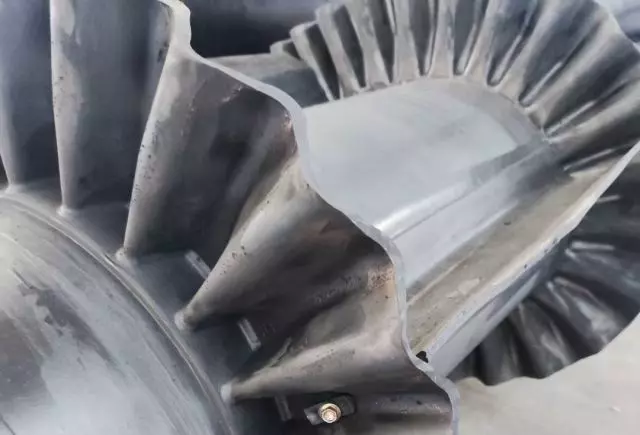

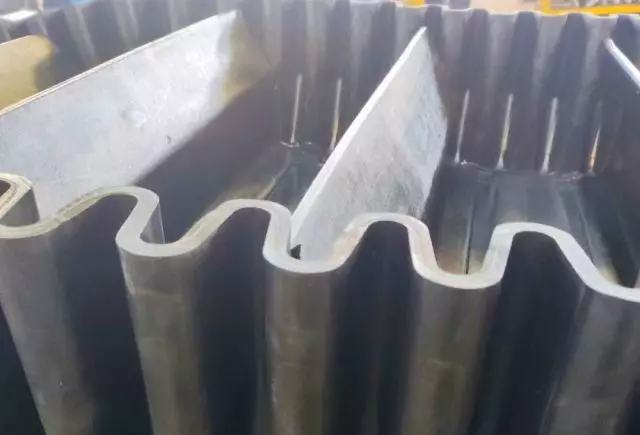

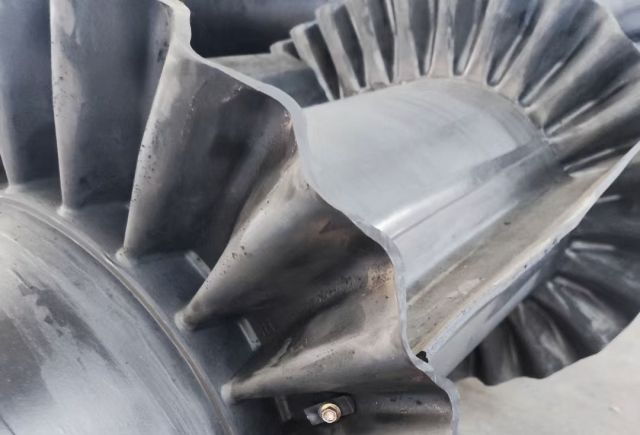

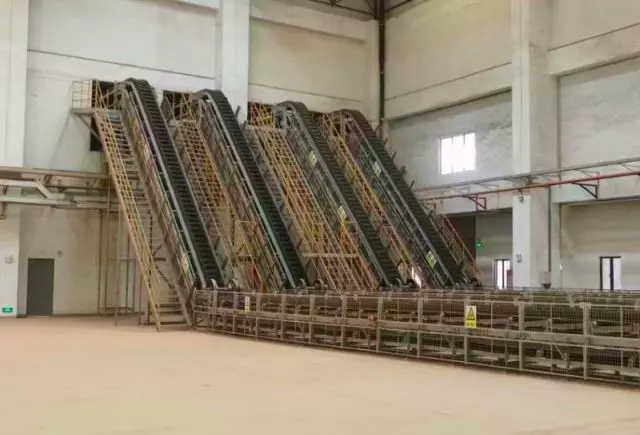

Corrugated Sidewall Conveyor Belt

The corrugated sidewall conveyor belt is mainly used in transporting bulk materials at angle of 0-90°. SKE is sidewall conveyor belt supplier in china and also a bulk material handling conveyor system solutions supplier. You can contact with us for a quotation.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

Sidewall belt conveyor is widely used in Ceramic Industry, Construction industry, port, metallurgy, mining, electricity, coal, casting, building materials, food, Agriculture, Recycling Industry, chemical industry material conveying.

Advantages

1. Corrugated sidewall conveyor belt Can be used at steeper angles up to 90degree;
2. Ideal for transporting powdery and lumpy materials;
3. Can transport high volumes without any spillage;
4. Corrugated sidewall conveyor belts are adequately rigidity;
5. Do not buckle under compression;
6. Tear and gauging resistance;
7. Enhanced durability;
8. Lower maintenance cost;

Tech Datasheet

The base-band of sidewall conveyor belt is composed of four parts: upper covering rubber, lower covering rubber, belt core and transverse rigid layer. The thickness of upper covering rubber is generally 3-6mm; the thickness of lower covering rubber is generally 1.5-4.5mm. The core material bears tensile force, and its material can be cotton canvas (CC), nylon canvas (NN), polyester canvas (EP) or steel wire rope (st). In order to increase the transverse rigidity of base-band, a special reinforcing layer is added to the core, which is called transverse rigidity layer. The width specification of base-band is the same as that of common tape, and it conforms to the standard of GB / t7984-2001.

Specifications of Corrugated Sidewall Belt
Base belt width (mm) Sidewall Height (mm) Cleat Height (mm) Wave width Bf(mm) Effective width Br(mm) Blank width R(mm)
300 40 35 25 180 35
60 55 50 120 40
80 75
400 60 55 50 180 60
80 75
100 90
500 80 75 50 250 75
100 90
120 110
650 100 92 50 350 100
120 110
160 140 75 300
800 120 110 50 460 120
160 140 75 410
200 180
1000 160 140 75 550 150
200 180
240 220
1200 160 140 75 690 180
200 180
240 220
300 260 103 630
1400 200 180 75 830 210
240 220
300 260 105 770
400 360
1600 200 180 75 970 240
240 220
300 260 105 910
400 360
1800 240 220 75 830 270
300 260 105 1050
400 360
500 460 125 1010
