Spiral Return Roller for Belt Conveyor

This steel spiral return roller also called self-cleaning roller, it can clean the sticky material on the belt and protected build-up on the rollers. SKE maintenance-free steel spiral return roller reduces downtime due to less carryback or less belt mistracking.

Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

  • Applications
  • Datasheet
  • Manufacturing
  • Gallery
APPLICATIONS

The Spiral Conveyor Return Roller is used on the return side of the belt as belt cleaner. Spiral steel welded on the spiral roller act as a screw and pushes the build-up material on the center to the edge of the belt, return roller. Our products are widely used in thermal power generation, harbours, cement plants, metallurgy and as well as the light duty conveying devices for industries.

DATASHEET
Specifications of Spiral Conveyor Return Roller
Roller Dia. (mm) 108, 133, 180
Roller Shell Dia. (mm) 60, 63, 89
Roller Shell Thickness (mm) 3
Roller Shaft Dia. (mm) 15, 20, 25, 30
Roller Length (mm) 406 - 1832
Belt Width (mm) 300- 1600
Bearings No. 6202, 6204, 6205, 6305, 6206
Standard DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc.
Conveyor Roller Manufacturing
  • 60000

    Factory (㎡)

  • 100+

    Workers

  • 20+

    R&D Engineers

  • 20+

    Welders Certified

  • 160+

    Marketing Areas

  • 1000+

    Projects

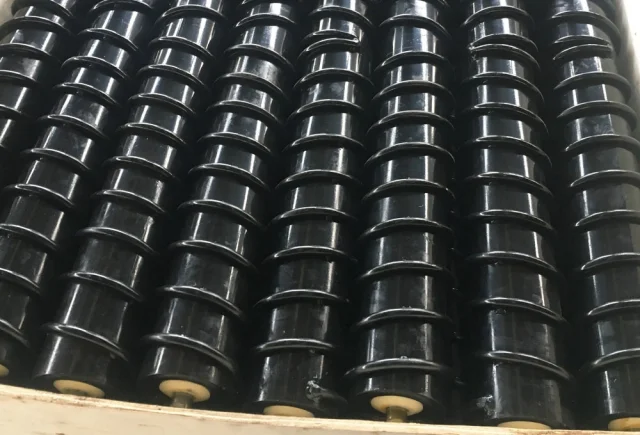

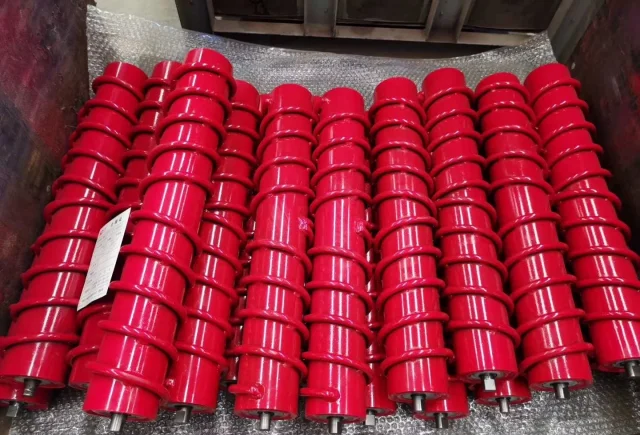

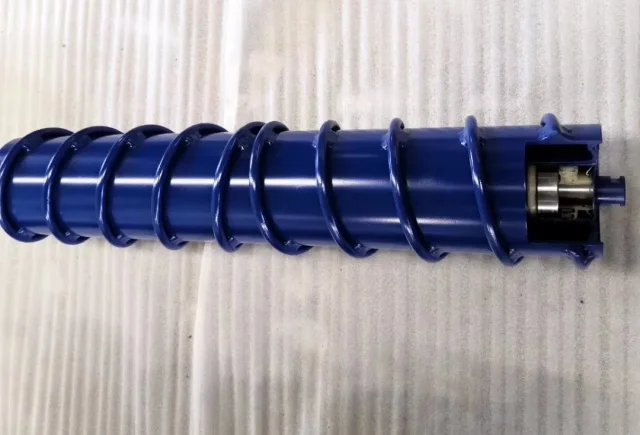

CONVEYOR ROLLER GALLERY
