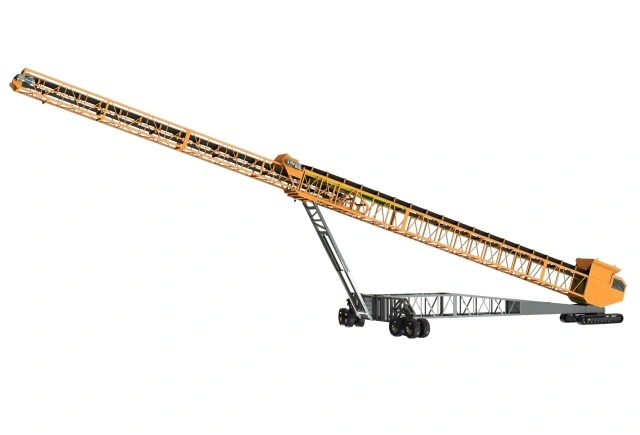

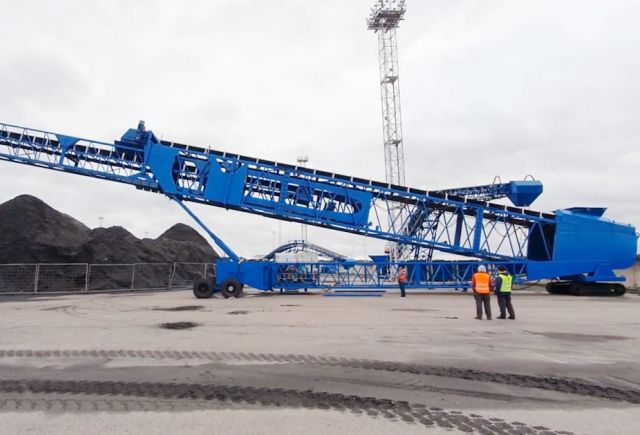

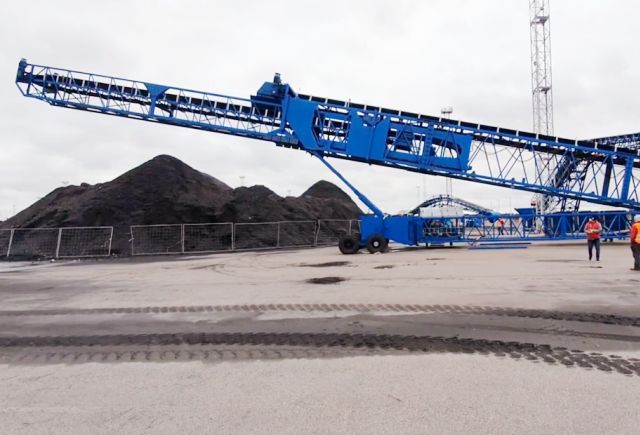

Portable Radial Telescopic Stacking Conveyor

KYD portable radial telescopic stockpiling conveyor mainly includes track-mounted and wheeled-mounted types. SKE provides these tracked and wheeled radial telescopic stacking conveyor for bulk materials handling.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

The Portable Radial Telescopic Stacker offers a unique material handling solution for the Quarrying, Mining, and Rail Transportation industries and can also be utilized in Ports & Inland Terminals for Ship/Barge Loading and Unloading. The Portable Radial Stacker is an ideal solution when working with the following applications:

1. Stockpiling from secondary crushers and screens.
2. Stockpiling crushed stone, sand and gravel, mineral ores.
3. Stockpiling construction and demolition waste, top soil, coal, fertilizer, wood chips, grain etc.
4. Stockpiling ores in a heap leaching plant.
5. Receiving crushed material and stockpiling safely over a quarry face/bench.
6. Loading materials directly to vessels.
7. Loading materials directly to trucks or rail wagons.
8. Linking conveyors or processing machines.

Advantages
  • The best choice of stockpiling

    The tracked radial telescopic belt stacker conveyor has been proven the best method of stockpiling in bulk material handling system.

  • Larger stockpile capabilty

    Compared with using conventional inclined stacker belt conveyors, you can increase 30% more stockpiling capacity on same foot print.

  • High quality stockpiling

    Greatly reduces segregation, degradation, compaction and contamination when stockpiling.

  • Lower stockpiling cost per tonne

    You can get a higher quality product at a lower stockpiling cost per tonne. Our track-mounted radial telescopic stockpiling conveyor can save your operation cost.

  • Less cost on wheel laoders

    You don’t need wheel loader to build stockpiles and eliminate double handling of material. And you can reduce labour and maintenance costs during daily running.

  • Wide of operation positions

    The fully extended length is up to 58 meters (190ft) and the loading rates is up to 3,000TPH. You can get a wide operation position and large stockpiling capacity bulk material stacking conveyor system.

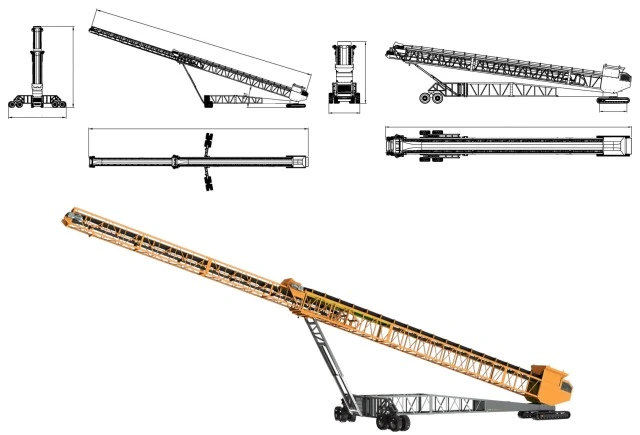

Tech Datasheet

SKE Industries not only provides standard model radial telescopic conveyor and provide customized services you can get different length of radial stacker from 25m to 58m.

Model - Standard Model KYD5025
Length (m) 25
Capacity (t/h) 200-500
Radial Stockpile Volume (t), 120 degrees 10,530
Radial Stockpile Volume (t), 270 degrees 20,930
Max. Discharging Height (m) 9.3
The reference density is 1.6t/m³.



Model - Standard Model KYD5032
Length (m) 32
Capacity (t/h) 500
Radial Stockpile Volume (t), 120 degrees 20,975
Radial Stockpile Volume (t), 270 degrees 42,105
Max. Discharging Height (m) 10.5
The reference density is 1.6t/m³.



Model - Standard Model KYD1042
Length (m) 42
Capacity (t/h) 500-1000
Radial Stockpile Volume (t), 120 degrees 45,345
Radial Stockpile Volume (t), 270 degrees 91,785
Max. Discharging Height (m) 13.6
The reference density is 1.6t/m³.



Model - Standard Model KYD3042
Length (m) 42
Capacity (t/h) 1200-3000
Radial Stockpile Volume (t), 120 degrees 50,390
Radial Stockpile Volume (t), 270 degrees 101,455
Max. Discharging Height (m) 14.6
The reference density is 1.6t/m³.



Model - Standard Model KYD3051
Length (m) 51
Capacity (t/h) 500-3000
Radial Stockpile Volume (t), 120 degrees 81,890
Radial Stockpile Volume (t), 270 degrees 166,145
Max. Discharging Height (m) 17.5
The reference density is 1.6t/m³.



Model - Standard Model KYD3058
Length (m) 58
Capacity (t/h) 200-3000
Radial Stockpile Volume (t), 120 degrees 115,050
Radial Stockpile Volume (t), 270 degrees 234,365
Max. Discharging Height (m) 19.6
The reference density is 1.6t/m³.



Options For Portable Telescopic Stacker Conveyor
25-58m (Customized Length)
Fully Automatic PLC Stockpiling Program
Radio Remote Control System
Integrated Generator for Fully Independent Unit
Fully Sealed Feed-in / Transfer and Discharge Points to Eliminate / Reduce Spillage On Site
Dust Suppression Measures –  Dust Covers, Dust Extraction, Rubber 'sock' Chutes, Water Suppression and Many More.
Belt Update
Idlers and Pulleys
250 Micron Paint Finish
Fully Mobile Tracked / Wheeled for Unrivalled Mobility On Site
