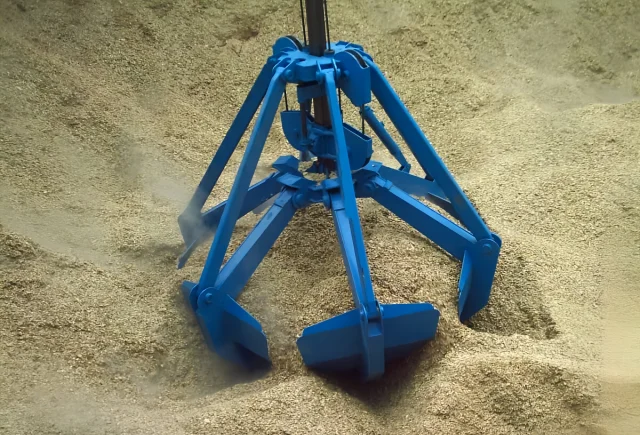

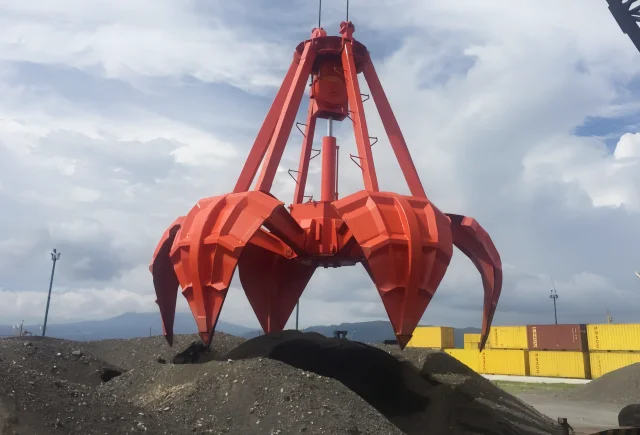

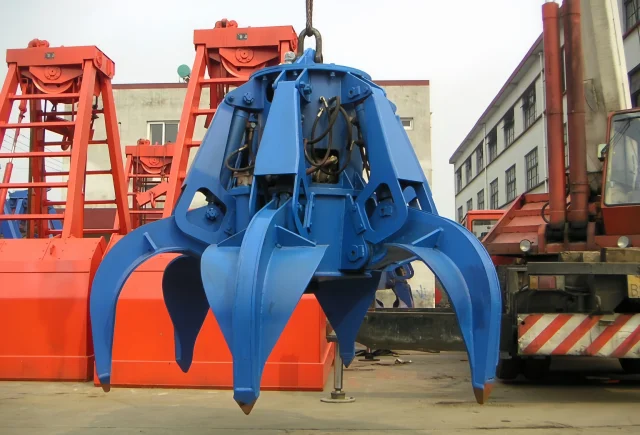

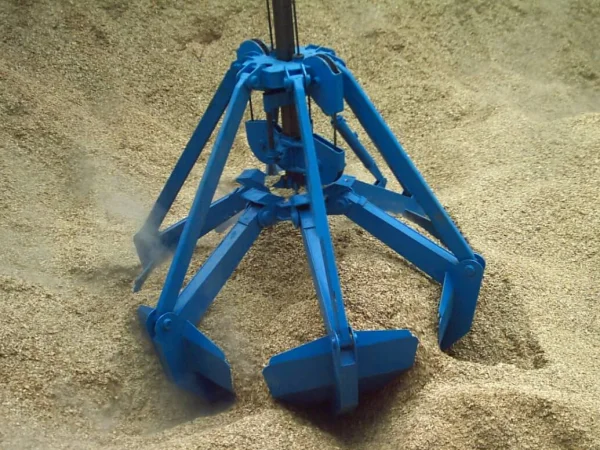

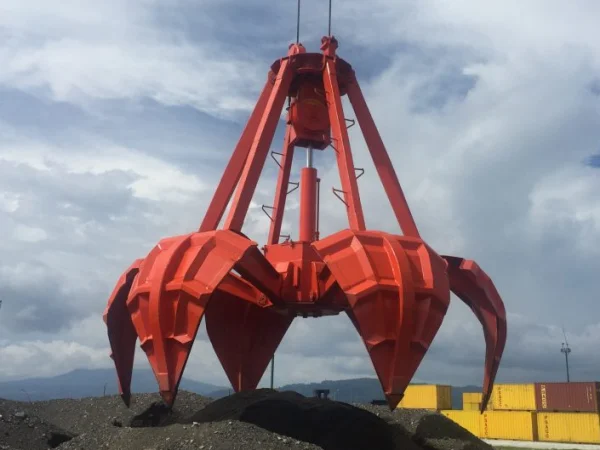

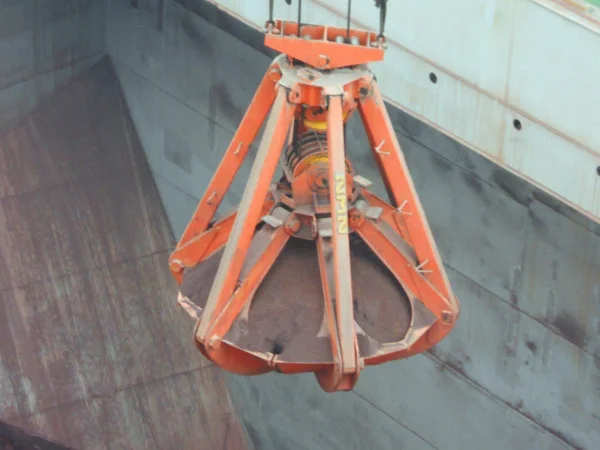

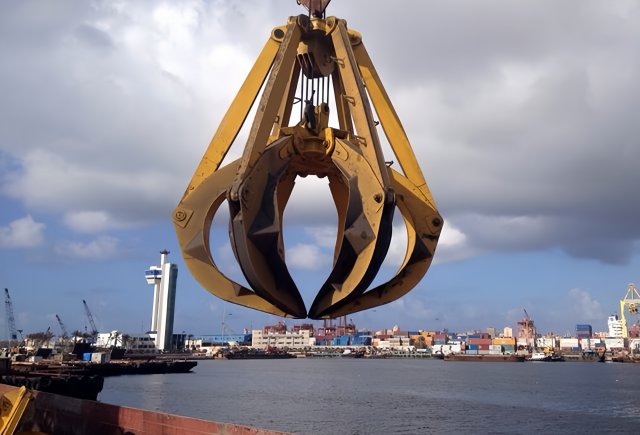

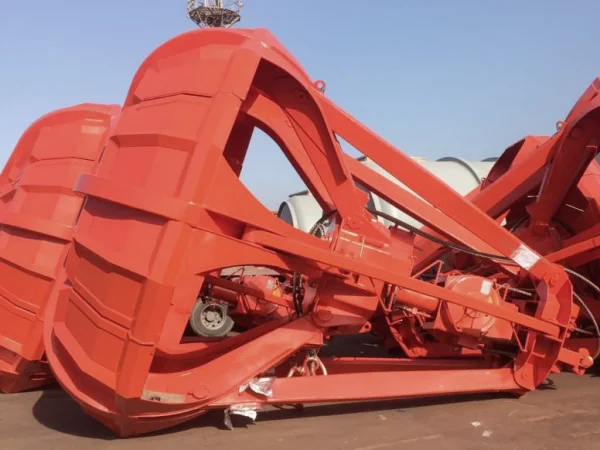

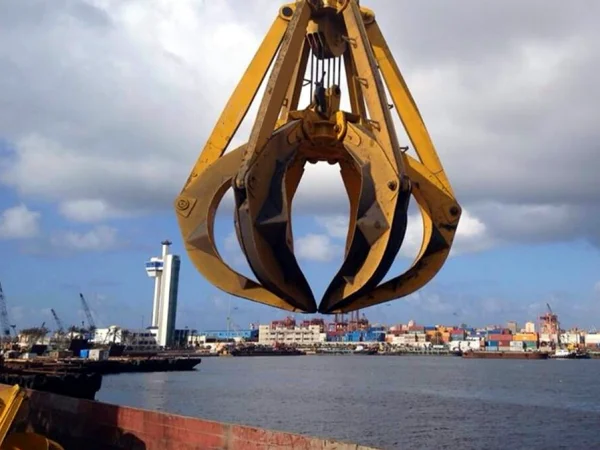

An Orange Peel Grab Bucket is a specialized hydraulic or electro-hydraulic material handling attachment used for grabbing, lifting, and transporting loose or bulky materials such as scrap metal, waste, stones, and industrial debris.
1. Multi-Tine Claws: Typically designed with 4 to 6 curved tines, offering excellent penetration into bulky or irregularly shaped materials.
2. Hydraulic or Electro-Hydraulic Operation: Available in models powered by onboard hydraulic systems (for excavators/cranes) or electro-hydraulic motors (for fixed installations like gantry cranes).
3. Heavy-Duty Construction: Made from high-strength wear-resistant steel to handle harsh working environments like scrap yards and recycling facilities.
4. 360° Rotation (Optional): Hydraulic rotator allows full rotation for precise material placement and grabbing from any angle.
5. Closed, Semi-Closed, and Open Tine Options: Open tines for large, bulky items like car bodies. Semi-closed tines for medium-density materials. Closed tines for fine materials like small scrap, gravel, or waste.
| Modle (MHM) | power(kw) | Dead weight (Kg) | SWL (t) | Capacity (m3) | Max pressure (bar) | Closing time(s) | Peel number | Size(mm) | |||||
| 380V50Hz | 440V60Hz | 380V50Hz | 440V60Hz | A | B | C | D | ||||||
| MHM15.0-800 | 18.5 | 22 | 2120 | 3.6 | 0.8 | 180 | 10 | 8.5 | 5 | 2200 | 1840 | 1580 | 2620 |
| MHM15.0-1000 | 2380 | 4.2 | 1 | 180 | 10 | 8.5 | 5 | 2280 | 1910 | 1660 | 2770 | ||
| MHM22.0-1600 | 22 | 26 | 3180 | 6.1 | 1.6 | 180 | 12 | 10 | 6 | 2830 | 2370 | 1950 | 3350 |
| MHM22.0-2000 | 3410 | 7 | 2 | 180 | 12 | 10 | 6 | 2980 | 2480 | 2060 | 3490 | ||
| MHM30.0-2500 | 30 | 35 | 3920 | 8.4 | 2.5 | 180 | 14 | 12 | 6 | 3220 | 2630 | 2280 | 3930 |
| MHM30.0-3200 | 4220 | 10 | 3.2 | 180 | 14 | 12 | 6 | 3360 | 2710 | 2380 | 4180 | ||
| MHM37.0-4000 | 37 | 44 | 5770 | 13 | 4 | 200 | 16 | 13.5 | 6 | 3480 | 2940 | 2680 | 4220 |
| MHM37.0-5000 | 5960 | 15 | 5 | 200 | 16 | 13.5 | 6 | 3770 | 3010 | 2920 | 4550 | ||
| MHM45.0-6300 | 45 | 54 | 7980 | 19.4 | 6.3 | 200 | 23 | 20 | 7 | 4190 | 3450 | 3160 | 5070 |
| MHM45.0-8000 | 8320 | 22.7 | 8 | 200 | 23 | 20 | 7 | 4300 | 3550 | 3360 | 5430 | ||
| MHM45.0-9000 | 8840 | 25.1 | 9 | 200 | 23 | 20 | 7 | 4690 | 3660 | 3540 | 5540 | ||
| MHM45.0-10000 | 9530 | 27.5 | 10 | 200 | 23 | 20 | 7 | 4820 | 3760 | 3680 | 5660 | ||
| MHM45.0-11000 | 9720 | 29.5 | 11 | 200 | 23 | 20 | 7 | 4890 | 3830 | 3810 | 5780 | ||
| MHM55.0-12000 | 55 | 66 | 11210 | 33.8 | 12 | 220 | 26 | 22 | 8 | 4980 | 3890 | 3960 | 6240 |
| MHM55.0-13500 | 11530 | 36 | 13.5 | 220 | 26 | 22 | 8 | 5970 | 4010 | 4140 | 6370 | ||
| MHM55.0-15000 | 11840 | 38.9 | 15 | 220 | 26 | 22 | 8 | 6060 | 4110 | 4300 | 6500 | ||
