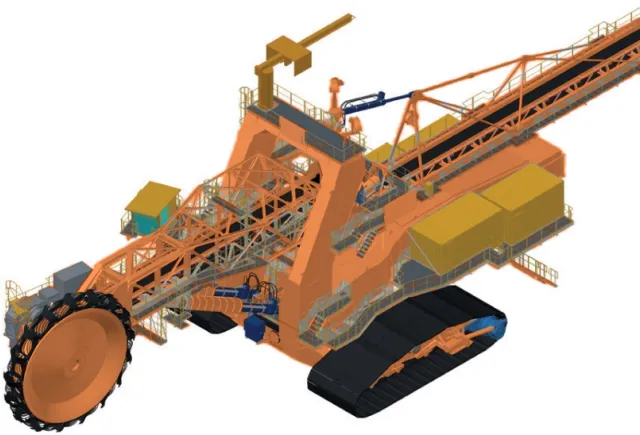

KBWR500 Bucket Wheel Reclaimer

The KBWR500 is a bucket wheel reclaimer moved by tracks. This mobile bucket wheel reclaimers uses bucket wheel to reclaim bulk materials and the capacity can reach 500m³ per hour. It is a continuous buck wheel reclaiming machine.

Send Email Get a Free Quote
EAC
EAC
C E
CE
ISO 9001
ISO9001
ISO 14001
ISO14001
ISO 45001
ISO45001
  • Application
  • Features
  • Datasheet
APPLICATION

This bucket wheel reclaimer is suitable for reclaiming and loading loose materials in storage yards in mining, coal, clinker, coking, large and medium-sized thermal power plants and metallurgy industries. It is especially suitable for replacing traditional wheel loaders and excavators for loading, unloading and excavation.

  • Reclaiming and feeding belt conveyor
  • Reclaiming and loading trucks

FEATURES
  1. In the field of bulk materials, our equipment has a wide working surface and can continuously reclaiming materials.
  2. It requires fewer operators and can be used by 1 to 2 people or without workers.
  3. Moving with tracks, our bucket wheel reclaimer can move along the stockyard or at any place of stockyard.
  4. There are few wearing parts for daily maintenance. The main wearing parts include excavation bucket, bucket teeth, rollers, etc.
  5. Compared with traditional wheel loaders, the operating cost is reduced by 46% and the procurement cost is reduced by 50%. One working capacity can replace 2-10 traditional wheel loaders.
DATASHEET
KBWR500  Bulk Wheel Reclaimer
Item Specification
Overall Dimension 20597x4200x6140mm
Track Dimension (LxW) 6000x600
Capacity 500m³/h
Bucket Volume 0.09m³
Bucket Wheel Diameter 5.1m
Bucket Nos 22
Unit Cutting Force 40kg/cm
Bucket Wheel Speed 5 r/min
Material Density 2.35t/m³（iron ore）
Discharge Boom Rotation Angle, Relative to the Reclaiming Boom ±90°
Reclaiming Boom Rotation Angle 360°
Conveyor Belt Width 1m
Conveyor Belt Speed 2m/s
Ground Pressure 125kpa
Smallest Turning Radius 7.5m
Maximum Crawler Walking Speed 8.5m/min
Drive Mode Hydraulic drive
Power Source Diesel or electric drive
Bucket Wheel Driving Power 75kw
Bucket Wheel Boom Conveyor Drive 22kw
Discharge Telescopic Conveyor Belt Drive 30kw
Bucket Wheel Boom Slewing Drive 5.5kw x2
Telescopic Boom Slewing Drive 3kw x2
Crawler Walking + Cylinder Lifting 22kw
Total Power 166kw
Diesel Engine Power 335HP
