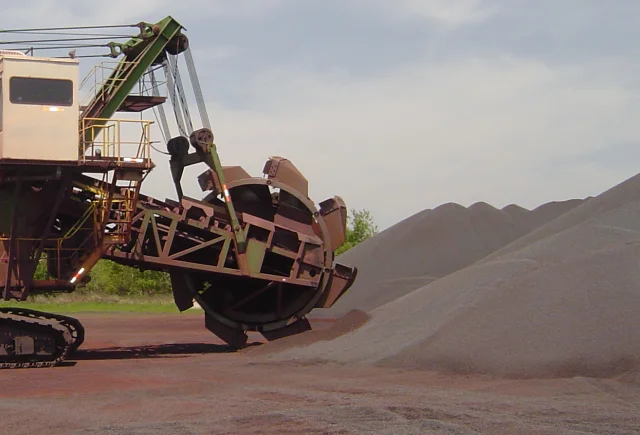

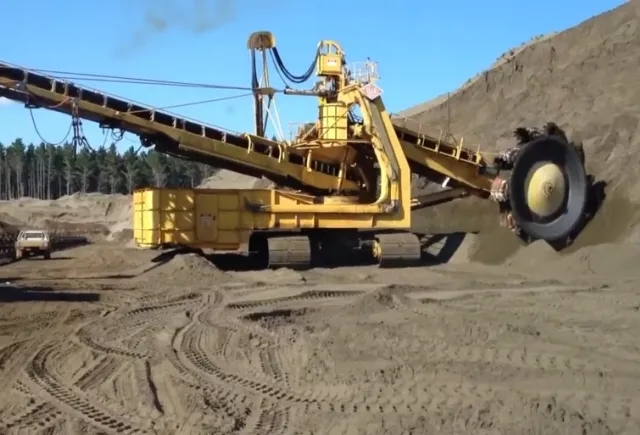

KBW2000 Bucket Wheel Excavator and Reclaimer

The KBW2000 is not only a bucket wheel reclaimer but also a bucket wheel excavator. The excavating capacity can reach 2000m³ per hour. The unit cutting strength can reach 120Kg/cm, and the reclaiming height can reach 10m.

Send Email Send Message

EAC Certification, CE Certificate, ISO 9001, ISO 14001, ISO 45001,

Application
Features
Datasheet

APPLICATION

Our KBW2000 bucket wheel excavator is high efficiency excavating and reclaiming machine. It can use used in industries like aggregate, mining, quarry, coal, construction, power, port, etc. The common applications:

Reclaiming and feeding belt conveyor
Reclaiming and loading trucks
Earth stripping
Soft rock excavating with some model

FEATURES

In the field of bulk materials, our equipment has a wide working surface and can continuously reclaiming bulk materials.
The KBW 2000 bucket wheel excavator offers high continuous productivity. It can excavate buckets of bulk material up to 2,000 cubic meters per hour.
It adopts standardized design and has few wearing parts for daily maintenance. The main wearing parts include excavation buckets, bucket teeth, rollers, etc.
It has a high degree of electrical automation, is easy to control, and can realize automatic control and remote control.
The bucket wheel stacker and reclaimer is also a bucket wheel excavator. Its cutting capacity can be applied to the excavation of soft materials and its excavation capacity is large.

DATASHEET

KBW2000
Item	Specification
Capacity	2000m³/h
Bucket Volume	0.445m³
Bucket Wheel Diameter	7.6m
Bucket Nos	12
Unit Cutting Force	120kg/cm
Bucket Wheel Speed	2～8r/min
Bucket Wheel Lifting Angle	+12.8°～-13.2°
Material Density	1.56t/m³ (topsoil)
Discharge Boom Rotation Angle, Relative to the Reclaiming Boom	±105°
Reclaiming Boom Rotation Angle	360°
Conveyor Belt Width	1.4m
Conveyor Belt Speed	3m/s
Ground Pressure	140kpa
Smallest Turning Radius	10.5m
Maximum Crawler Walking Speed	8.5m/min
Drive Mode	Hydraulic drive
Power Source	Diesel or electric drive
Bucket Wheel Driving Power	550kw
Diesel Engine Power	1332.8HP
Total Weight	360t
Total Power	980Kw
Power Source	220V/380V
Relcaiming Height	10m
