NE Plate Chain Bucket Elevator

NE plate chain bucket elevator uses plate chain to lift the bucket, and the chain is made of high-strength alloy steel high-strength plate. The lifting efficiency can reach 800m³/h. The lifting height can reach up to 40m.

Send Email Send Message

EAC Certification, CE Certificate, ISO 9001, ISO 14001, ISO 45001,

Application
Features
Gallery
Datasheet
Manufacturing

APPLICATION

The bulk material flows into the hopper and is lifted to the top by the plate chain, where it is discharged by itself under the action of gravity. You can use our bucket elevator conveyor to handle materials like ore, aggregate and sand, coal, limestone, gypsum, cement, cement clinker, others.

It is widely used in industries like mining, quarrying, building, power, cement, steel, chemical and so on.

FEATURES

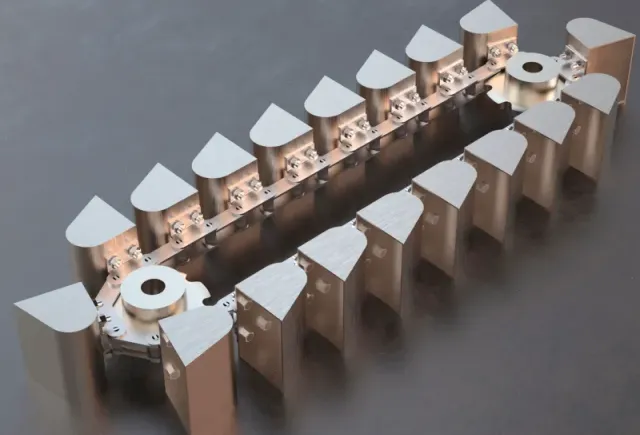

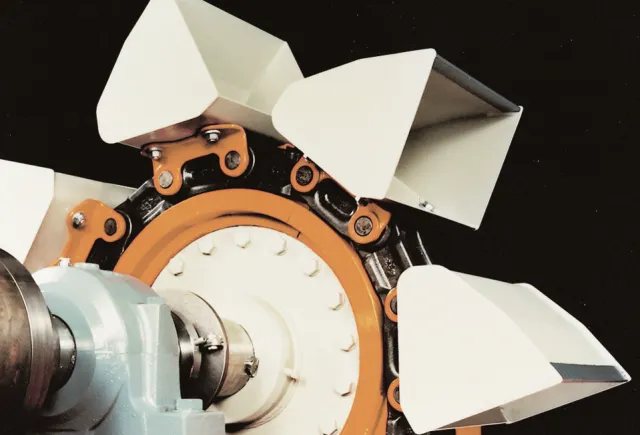

NE bucket elevator uses alloy plate chain and gravity unloading.

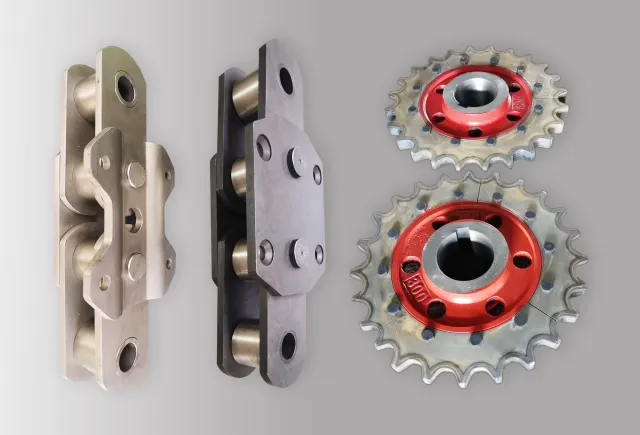

High-strength alloy steel plate chain, wear-resistant and stable.

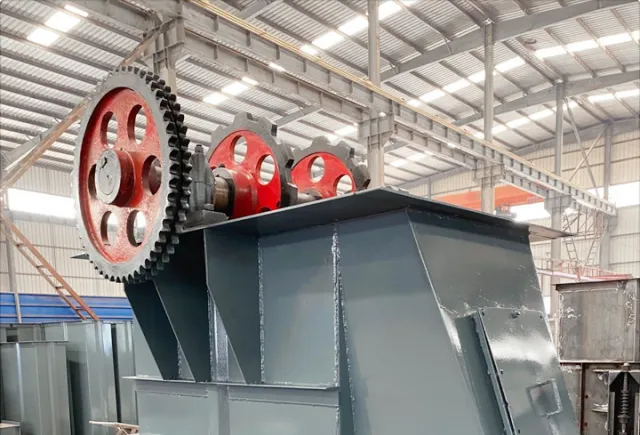

Multiple drive modes are available, and the drive platform is equipped with guardrails and guardrails, which is easy to maintain.
Guide rails are provided to prevent the chain from running off during operation.
The bucket elevator conveyor drive part is equipped with a backstop to prevent material back-flow.
A tension device is provided at the bottom to facilitate the adjustment of the chain tension.
The lifting range is wide, and the requirements for the type and nature of the material are few.

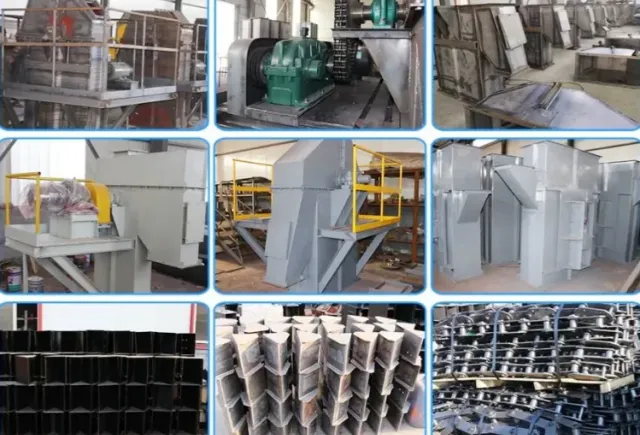

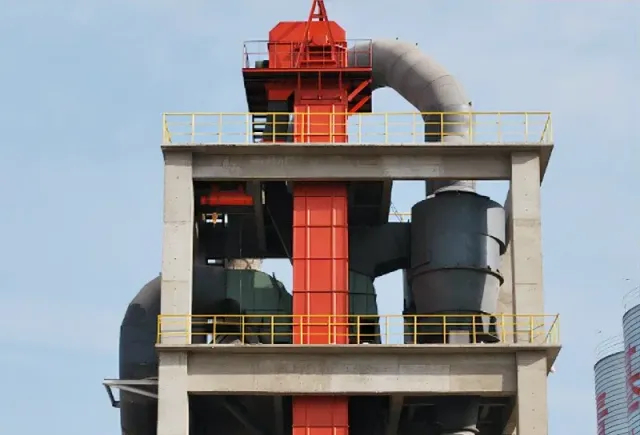

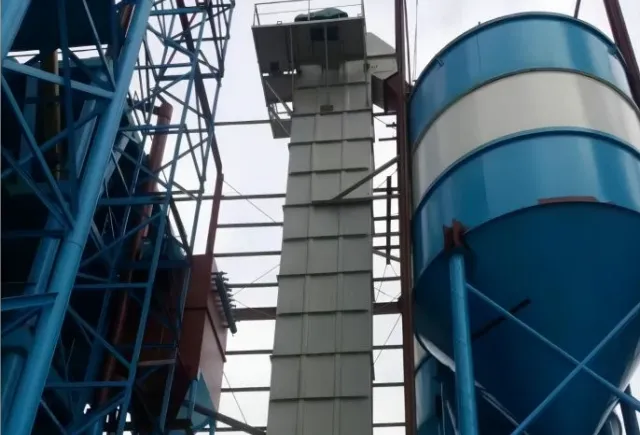

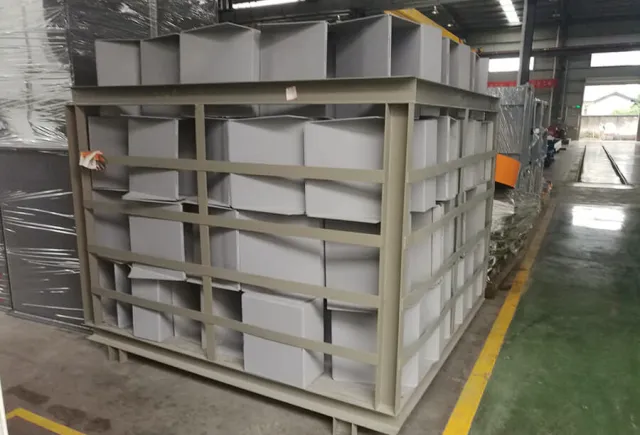

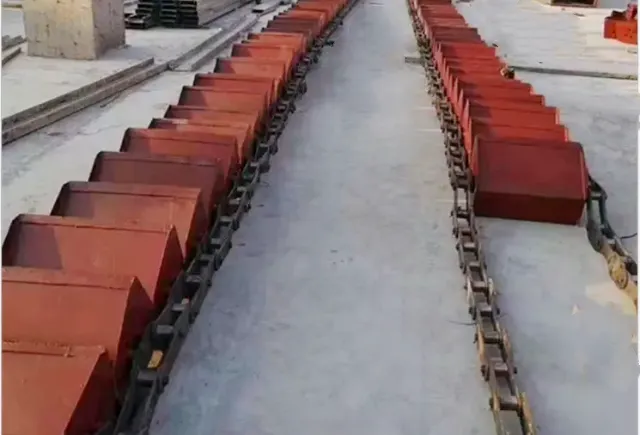

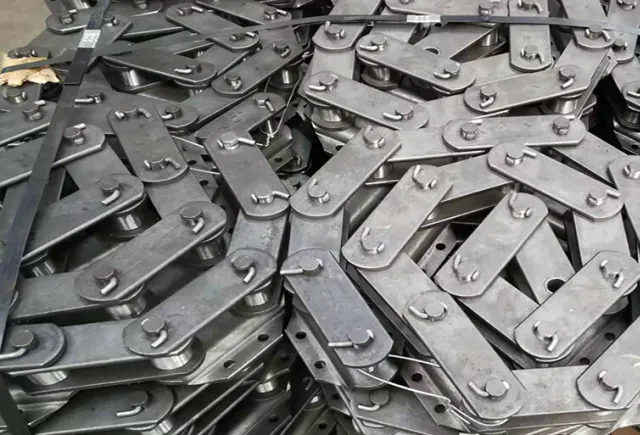

EQUIPMENT GALLERY

DATASHEET

Model	Capacity	Type of hopper			Max Material Size (mm)
	Capacity	Bucket Volume(L)	Bucket Pitch(mm)	Bucket Speed(m/m)	Percentage (%)
	m3/h	Bucket Volume(L)	Bucket Pitch(mm)	Bucket Speed(m/m)	10	25	50	75	100
NE15	16	2.5	203.2	29.8	65	50	40	30	25
NE30	31	7.8	304.8	30.1	90	75	58	47	40
NE50	60	14.7	304.8	30.1	90	75	58	47	40
NE100	110	35	400	31	130	105	80	65	55
NE150	165	52.2	400	31	130	105	80	65	55
NE200	220	84.6	500	30	170	135	100	85	70
NE300	320	127.5	500	30	170	135	100	85	70
NE400	441	182.5	600	30	205	165	125	105	90
NE500	470	260.9	700	30	240	190	145	120	100
NE600	600	300.2	700	30	240	190	145	120	100
NE800	800	501.8	800	30	275	220	165	135	110
