GTH Round Link Chain Bucket Elevator

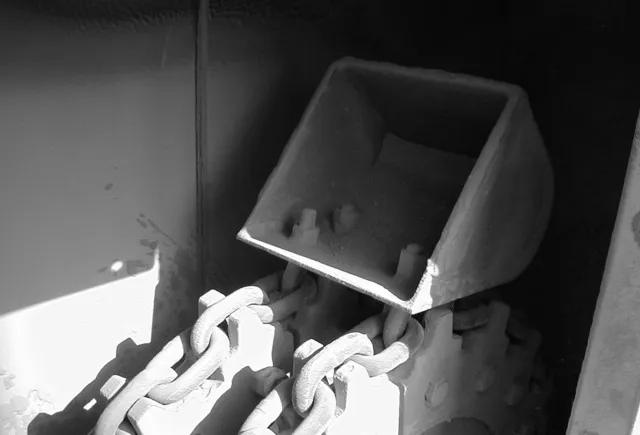

GTH round link chain bucket elevator uses round chain to lift the buckets, and the chain is made of high-strength alloy steel. The lifting efficiency can reach 1541m³/h. The lifting height can reach up to 80m.

Send Email Send Message

EAC Certification, CE Certificate, ISO 9001, ISO 14001, ISO 45001,

Application
Features
Gallery
Datasheet
Manufacturing

APPLICATION

The GTH round link chain bucket elevator is designed for the vertical transport of abrasive materials, including powder, granules, and small blocks. It efficiently handles materials such as grain, coal, cement, and crushed ore, making it ideal for demanding industrial applications. Widely used in industries such as:

Mining & Minerals
Building Materials & Cement
Power Plants
Steel & Metallurgy
Chemical Processing

With its robust round link chain design, this elevator ensures high durability, reliability, and efficient material handling in harsh environments.

FEATURES

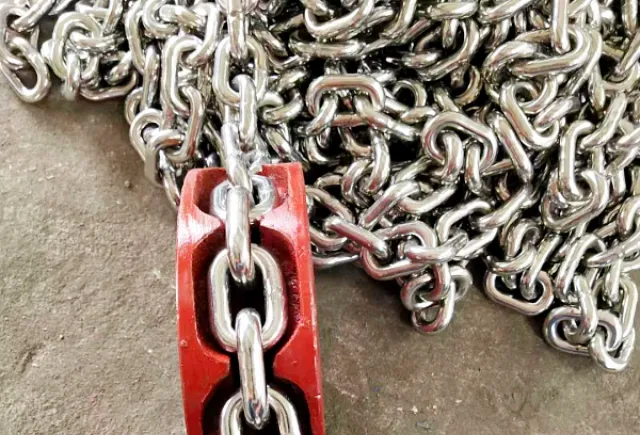

Heat-treated round link chain ensures high tensile strength, superior wear resistance, and extended service life.

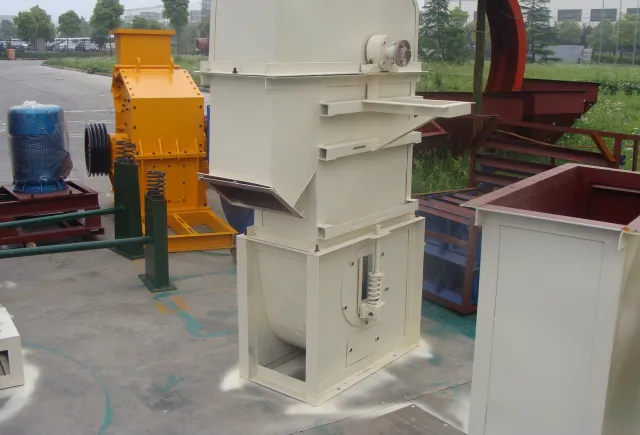

Spring screw tensioning device at the tail allows both manual and automatic tightening, preventing chain slippage or derailment.
Heavy hammer lever-type tensioning system in the lower section enables automatic tensioning, ensuring stable operation.
Once installed, no further adjustments are needed, maintaining constant tension for reliable performance.

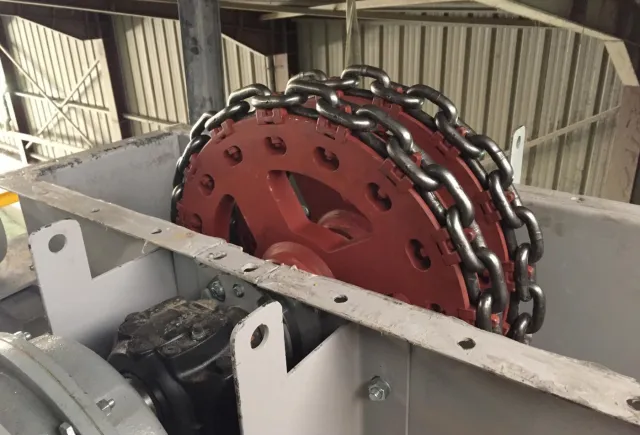

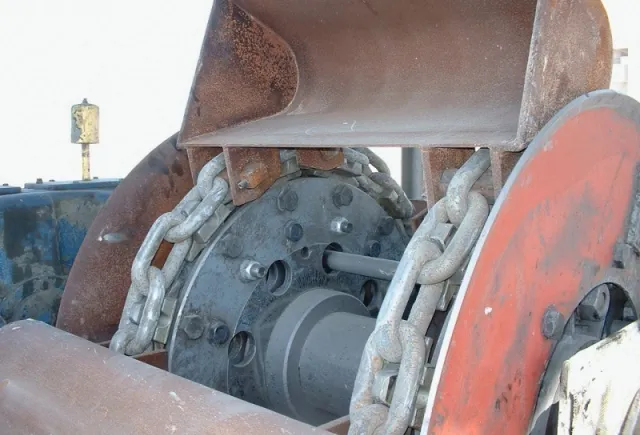

Assembled sprocket with a modular design.
The wheel body and rim are connected by high-strength bolts, reducing maintenance costs and downtime.

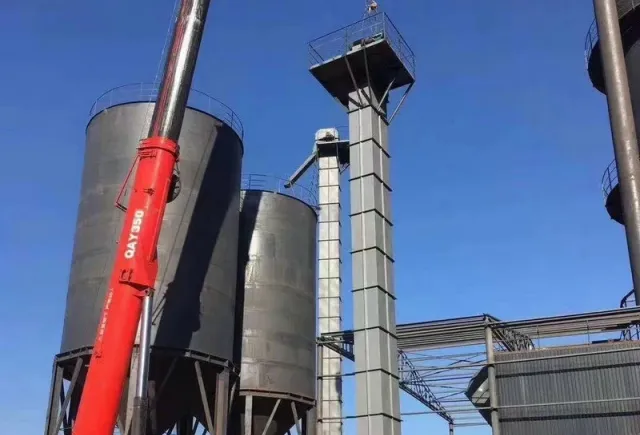

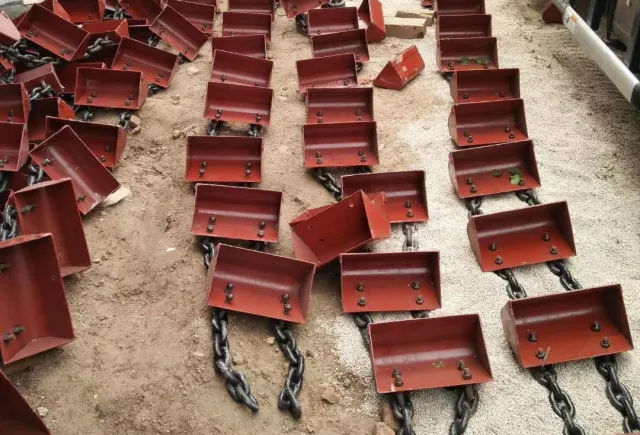

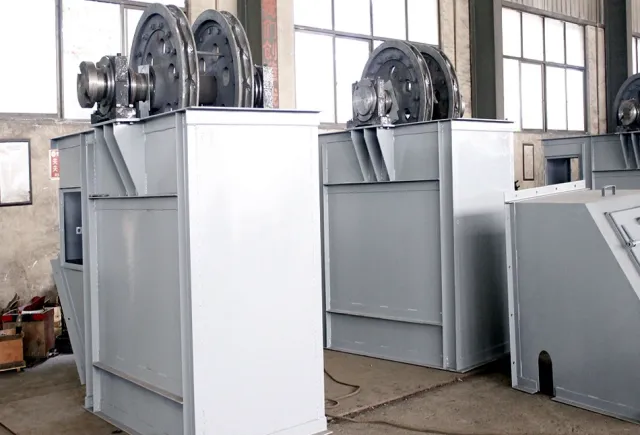

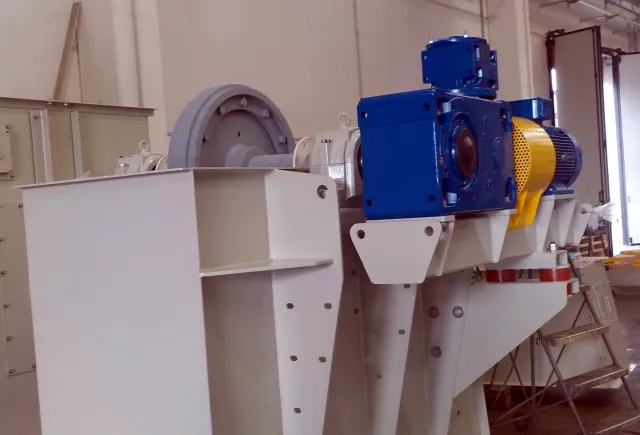

EQUIPMENT GALLERY

DATASHEET

Bucket Elevator Model		GTH160	GTH200	GTH250	GTH315	GTH400	GTH500	GTH630	GTH800	GTH1000	GTH1250	GTH1600
Conveying Capacity (m³/h)		32	45	72	101	158	220	348	492	788	1220	1541
Hopper	capacity (L)	2.6	4.1	6.5	10	16	25	40	64	102	161	255
Hopper	Bucket distance	260	300	325	360	420	460	520	580	650	720	820
Traction chain and hopper weight per meter (kg/m)		22	21.5	33	33.2	42.2	62.3	78.53	106	145	155.5	223
Hopper Running Speed (m/s)		1.2	1.2	1.34	1.34	1.5	1.5	1.68	1.65	1.86	1.86	1.836
Lifting Height		80	80	80	80	80	80	80	80	80	80	80

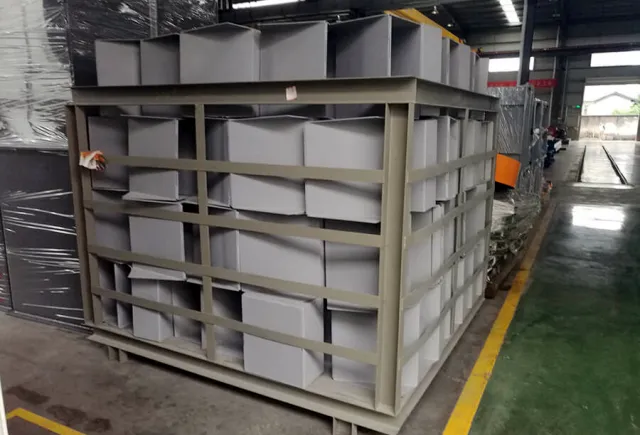

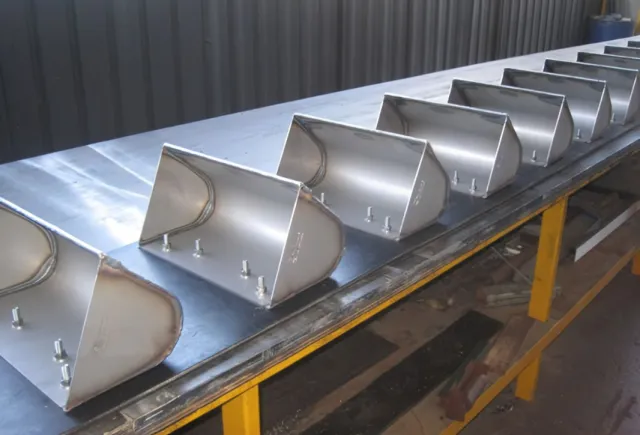

Manufacturing
