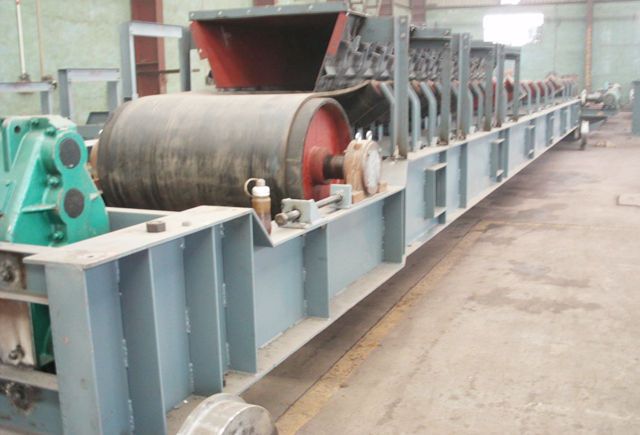

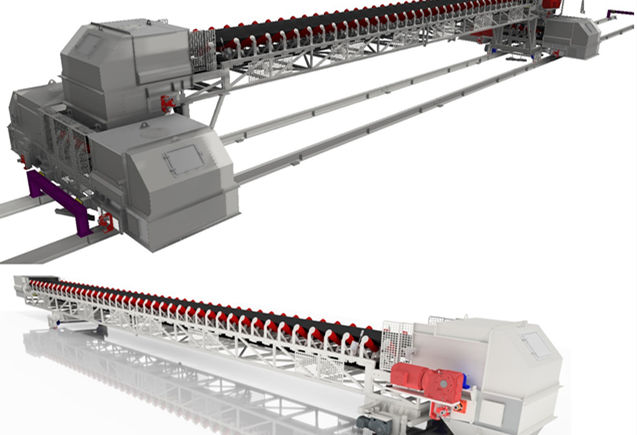

Reversible Shuttle Belt Conveyor

The SKE reversing belt conveyor is used for building an in-line, continuous pile, or for feeding multiple discharge points. We can use it to handle bulk materials.

  • Applications
  • Advantages
  • Datasheet
  • Video
  • Related
Applications

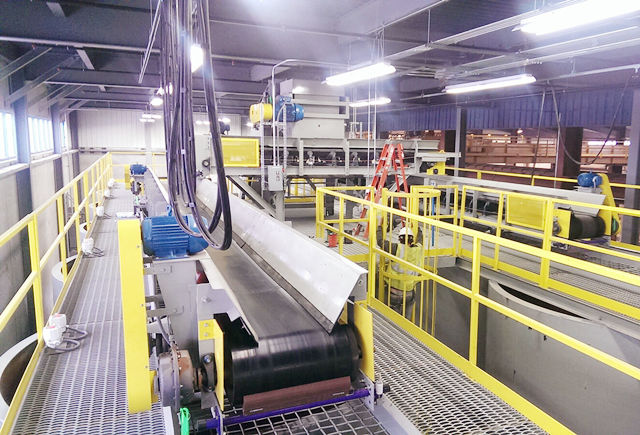

In some cases, a fixed belt conveyor that discharges material in the same location just isn't enough. In these situations, the best solution may be a custom designed reversing shuttle belt conveyor. They are often used for filling bulk material to the storage bins, hopper or silos installed in one row.

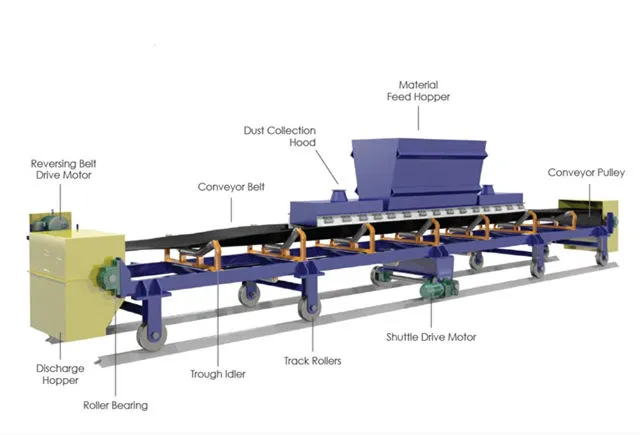

The reversing conveyor is used for building an in-line, continuous pile, or for feeding multiple discharge points. The shuttle functionality allows the conveyor to be moved along a track, as well as convey material in both directions, creating opportunity for extreme flexibility.

You can apply reversing belt conveyor in Coal Handling for Power Plants- Loading Bunkers, Woodchip and Bark Handling for Pulp/Paper Mills-Filling Digesters, Bulk Warehousing of Granular Products or Raw Materials, Filling Storage Silos Frac Sand Processing, etc.

Advantages

1. Welded structural steel frame

2. Heavy duty construction design

3. Be able to be controlled from a remote location

4. Be movable on conveyor rails

Tech Datasheet
Reversible Belt Conveyor
Belt width(mm) Belt Speed(m/s)
500 ≤2.5
650 ≤2.5
800 ≤2.5
1000 ≤2.5
1200 ≤2.5
1400 ≤2.5
The belt width is customizable. The belt speed is customizable.
