Patterned Conveyor Belt

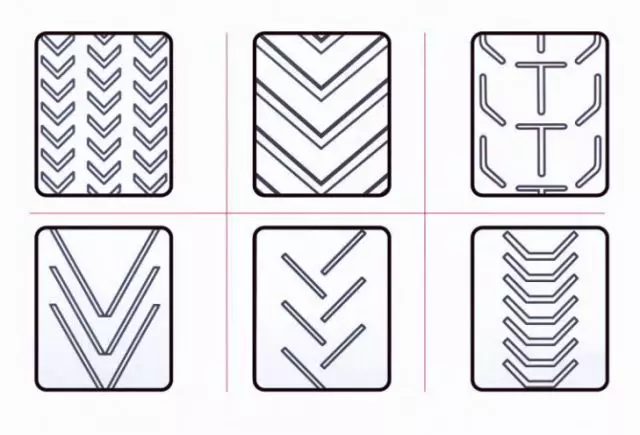

Patterned conveyor belt is composed of belt carcass and pattern. Pattern shape and height (depth) may be different because of different conveyor material and gradient of conveyor. SKE can supply diamond, chevron, fishbone, herringbone, v6, U, and v patterned conveyor rubber belt for our customers.

  • Applications
  • Advantages
  • Datasheet
  • Related

Patterned conveyor belt is an inclination conveyor belt composed of Patterned work surface, flat non working surface and core. It is suitable for conveying powder, granular, small pieces materials with the inclination of 0 ~ 40 ° to prevent the material from falling. We often apply it in conveying bulk material in stone crushing plant, waste recycling plant, sand and gravel aggregate manufacturing plant, thermal power station, concrete mixer plant, mine mining plant, metallurgy plant, port / terminals/ dockside, etc


1. There is no joint in belt carcass

2. Long service life

3. Cleats and top cover rubber are vulcanized integrally

3. Cleat pattern, angle and pitch are designed elaborately

4. There are open type and closed type, suitable for bulk or bagged materials such as powder and granule with incline less than 45°.

Tech Datasheet
Type Wear-Resistant, Flame-retardant,
Impact-Resistant, Ripstop Steel Cord,
High Temperature-Resistant, Tube,
Cold-Resistant, Bucket Elevator,
Chemical-Resistant, Chevron,
Oil-Resistant, Corrugated Sidewall.
Width 300-3200mm.
Belt Material Polyester, Cotton, Nylon, Steel Cord.
Tensile Strength 8-25MPa
Standard DIN, JIS, AS, GB, RMA.
Fabric Specs Ply Thickness (mm/P) Strength Series(N/mm) Cover Thickness(mm) width(mm) Length(mm)
2ply 3ply 4ply 5ply 6ply top bottom
EP100 0.8 200 300 400 500 600 1.5~12 0~6 300~2500 300
EP125 0.85 250 375 500 625 750
EP150 0.9 300 450 600 750 900
EP200 1.2 400 600 800 1000 1200
EP250 1.4 500 750 1000 1250 1500
EP300 1.5 600 900 1200 1500 1800
EP400 2.2 800 1200 1600 2000 2400
EP500 2.5 1000 1500 2000 2500 3000
Grade of Covering rubber Tensile Strength(Mpa)≥ Elongation At Break(%)≥ Abrasion Loss≤(mm3) Change Rate Of Tensile Strength And Elongation At Break After 70℃X168H Aging(%)
Laceration Resistant Type (H) 24 450 120 -25~+25
Abrasion Resistant Type (D) 18 400 100 -25~+25
Ordinary Type (L) 15 350 200 -25~+25
Item Between The Fabric Layers Between Cover And Belt Carcass
Cover Thickness 0.8-1.5mm Cover Thickness>1.5mm
Average Value Of All Samples, N/mm, ≥ 4.5 3.2 3.5
Lowest Peak Value Of All Samples, N/mm,≥ 3.9 2.4 2.9
Remark: Highest Peak Value Of All Samples Shall Not Exceed 20N/mm.
