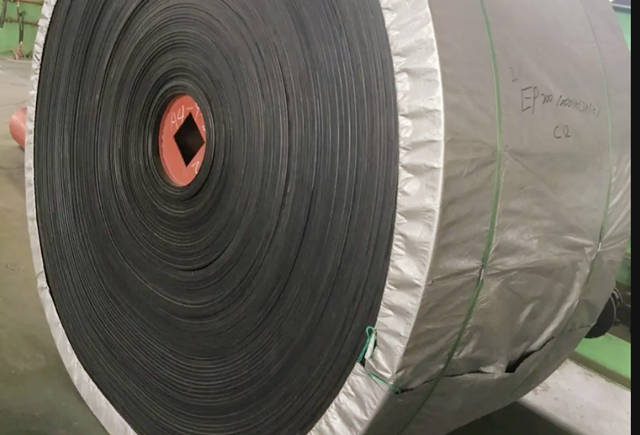

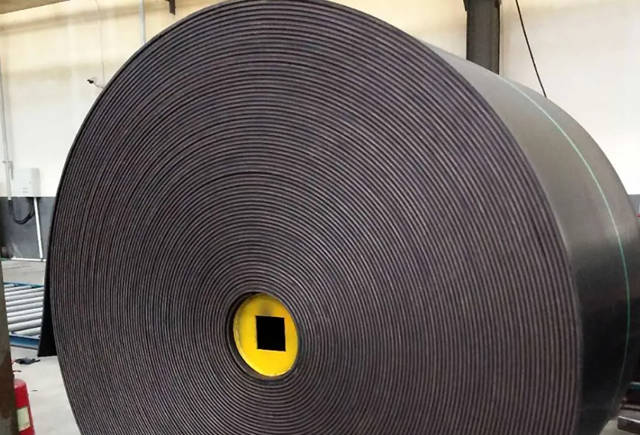

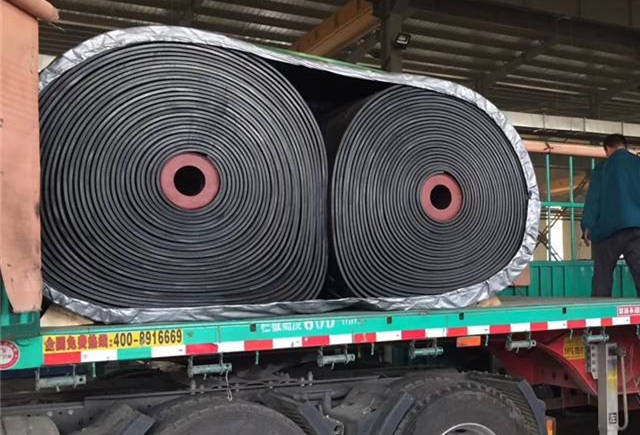

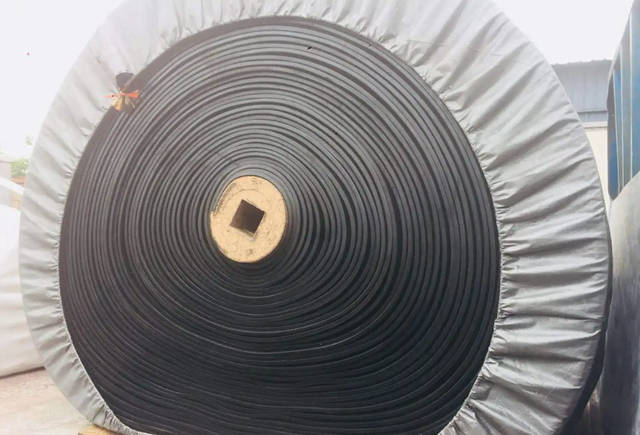

Fabric Conveyor Belt | Textile Conveyor Belt

Fabric conveyor belts are also called textile conveyor belts. SKE Industries is a Fabric conveyor belts supplier in China.We offer EP fabric conveyor belt and nylon fabric conveyor belt in a 3 ply (three fabric sheets) to a 6 ply (six fabric sheets) option.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

They are used principally for heavy-duty, abrasive materials. Fabric carcass conveyor belts are widely used in quarry, concrete aggregate plants, cement plant, power plants, foundries, chemical industries and other industries.

Advantages

1. The thickness of the covering layer depends on the nature of the material being transported and the loading conditions.
2. For bulky and sharp materials, such as heavy rocks, a conveyor belt with abrasion resistance level can be selected.
3. Materials such as clinker, coke, foundry sand and slag can choose heat-resistant conveyor belts.
4. Underground coal mines can choose conveyor belts that meet the safety level of underground applications.
5. They are used principally for heavy-duty, abrasive materials.
6. Compared with steel cord conveyor belts, they are more economical and effective.

Tech Datasheet
Type Thickness (mm) Belt Width (mm)
EP160/2 Top cover=2
Bottom Cover=1
Thickness=4.6
300-1300
EP200/2 Top cover=2
Bottom Cover=1.5
Thickness=5.6
300-1400
EP250/2 Top cover=3
Bottom Cover=1
Thickness=6.3
400-1600
EP250/2 Top cover=3
Bottom Cover=1.5
Thickness=6.8
400-1400
EP315/2 Top cover=4
Bottom Cover=1.5
Thickness=7.9
500-1600
EP315/3 Top cover=3
Bottom Cover=1.5
Thickness=7.3
800
EP400/2 Top cover=3
Bottom Cover=1
Thickness=6.7
650-1600
EP400/2 Top cover=5
Bottom Cover=1.5
Thickness=9.4
650-1600
EP400/3 Top cover=3
Bottom Cover=1
Thickness=6.8
400-1000
EP400/3 Top cover=4
Bottom Cover=2
Thickness=8.8
500-1200
EP500/3 Top cover=5
Bottom Cover=1.5
Thickness=9.4
600-1600
EP500/4 Top cover=3
Bottom Cover=1
Thickness=7.8
1000-1200
EP500/4 Top cover=4
Bottom Cover=2
Thickness=9.8
1200-1400
EP500/4 Top cover=5
Bottom Cover=2
Thickness=10.8
650-1000
EP500/4 Top cover=6
Bottom Cover=2
Thickness=11.8
800
EP630/4 Top cover=5
Bottom Cover=2
Thickness=11
2000-2400
EP630/4 Top cover=6
Bottom Cover=2
Thickness=12
800-1200
EP630/4 Top cover=8
Bottom Cover=3
Thickness=15
1000-1400
EP630/5 Top cover=5
Bottom Cover=1.5
Thickness=11.3
800-1200
EP800/5 Top cover=6
Bottom Cover=2
Thickness=12.8
1000-1200



Grade ISO DIN Characteristics
X H X Wear-resistant, heavy-duty cover for sharp and lumpy material, or extreme drop heights
Y L Y Wear-resistant cover for standard applications
AA,W D W Wear-resistant cover, for fine and abrasive material
UAR,UAR30 D Y,W Extremely wear-resistant cover, for fine and abrasive material
