Belt Conveyor Rubber Disc Conveyor Return Roller is mainly used in the field of viscous material transportation. We are Rubber Disc Conveyor Return Roller manufacturer. You can get conveyor roller price from our company.
Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,
Coal, mine, quarry, cement, harbor, steel, power, crusher, screen industry. Widely used in the outdoor dust is bigger, high corrosive environment, such as mines, power plants, steel making plant, stones quarry factory, cement making plant, coal washing plant, salt factories, soda, fertilizer plants, dockside/port/terminal, etc.

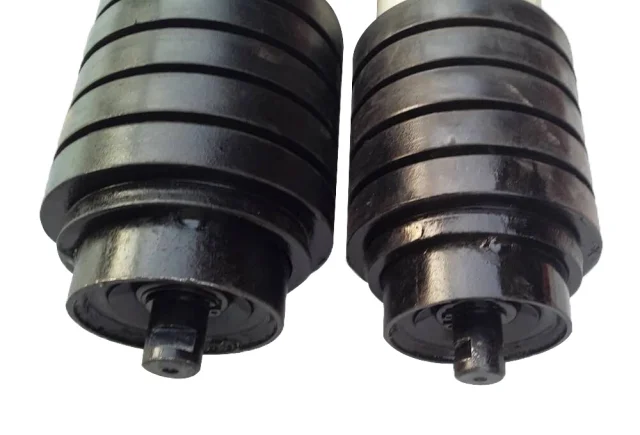

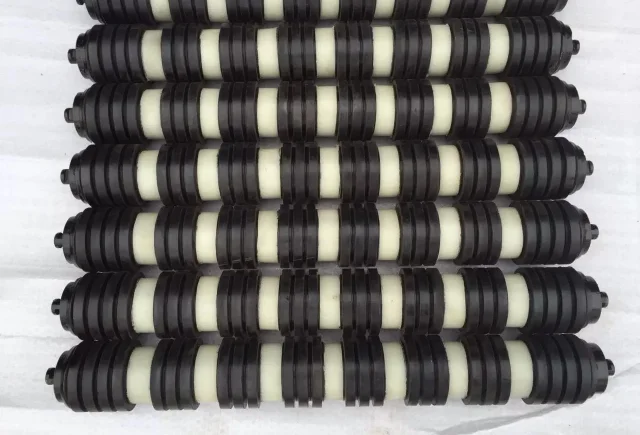

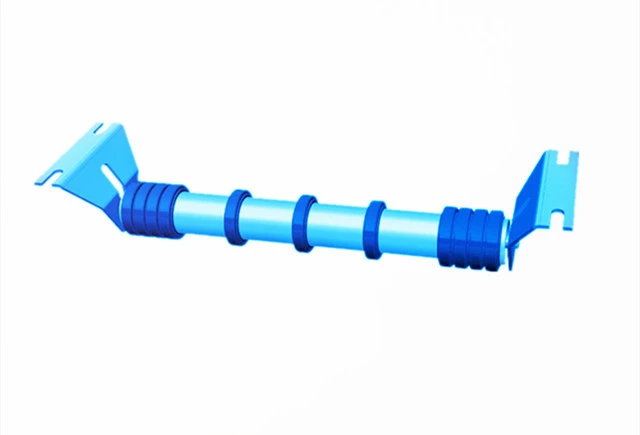

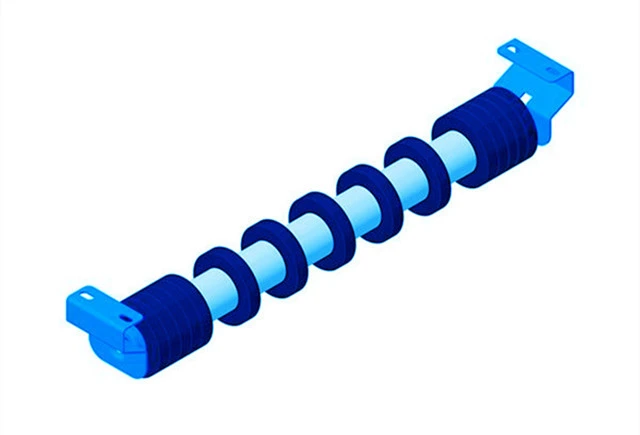

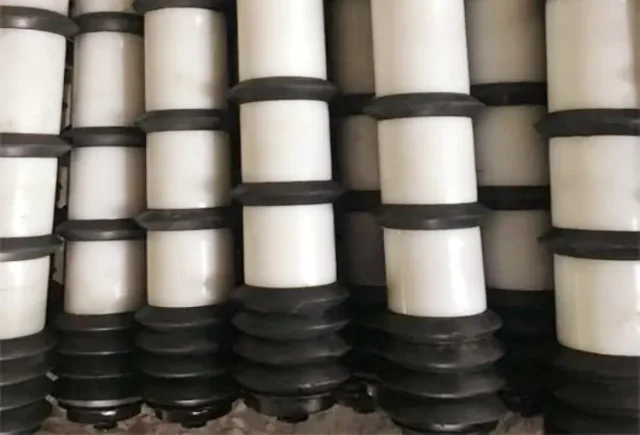

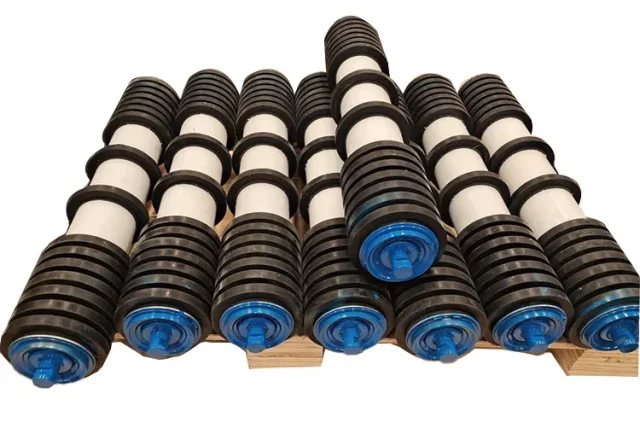

1. Rubber Disc Return rollers are covered with a series of rubber rings of adequate thickness. Highly resistant to wear by abrasion.
2. The lighter weight than conventional Impact rollers, thus a significant reduction in energy or start-up costs on conveyor drives. Seal offers a low friction coefficient. Energy Efficient bearings ensures a low power demand for conveyors.
3. Designed to operate in extreme temperatures, harsh operating conditions, and in highly corrosive chemical or coastal conditions.
4. Rubber Disc Return rollers are fitted with the same HDPE end caps and does not damage belt. Its frictional characteristics results in less build up and decreased abrasive action on conveyor belts.
| Specifications of Belt Conveyor Rubber Disc Conveyor Return Roller | |
| Roller Dia. (mm) | 108,133, 159, 180 |
| Roller Shell Dia. (mm) | 60, 63, 89, 108 |
| Roller Shell Thickness (mm) | 2.0, 3.0, 3.5 |
| Roller Shaft Dia. | 15, 20, 25, 30, 40 |
| Roller Length (mm) | 406 - 2540 (Overall) |
| Belt Width (mm) | 300 - 2200 |
| Rubber Ring Type | Rubber Ring Black (Flat Face), Rubber Conical Ring |
| Bearing No. | 6202, 6204, 6205, 6206, 6308 |
| Standard | DIN, CEMA, JIS, AS, SANS-SABS, GOST, AFNOR etc. |
