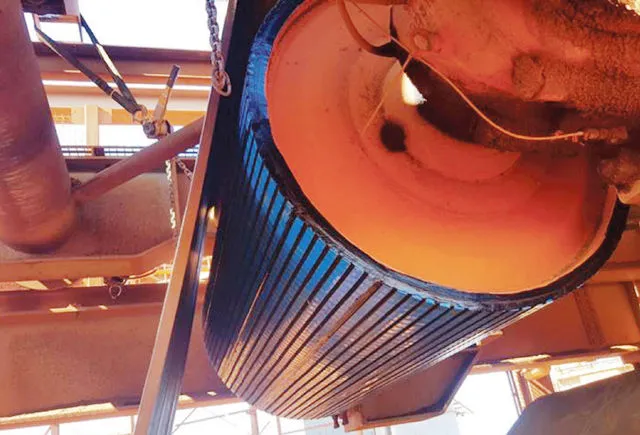

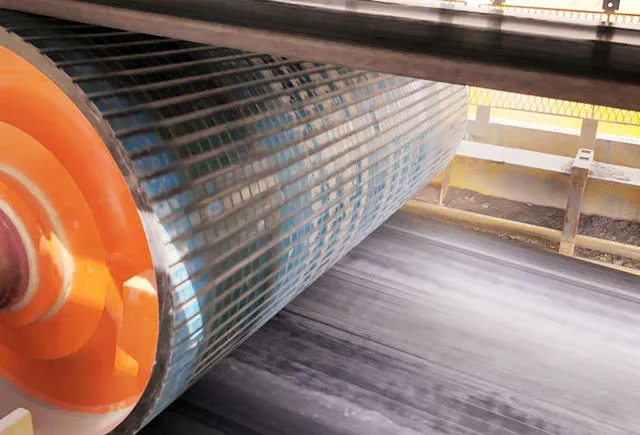

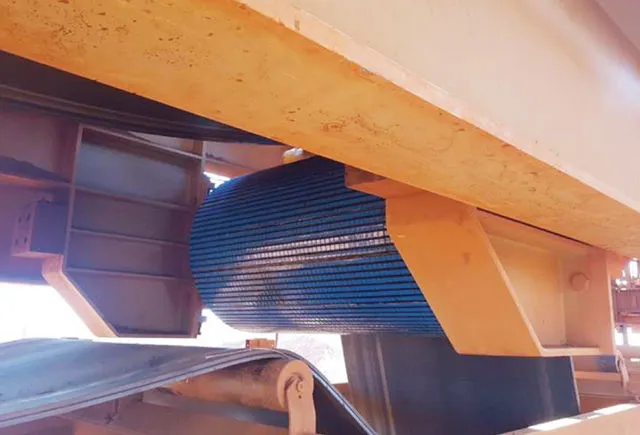

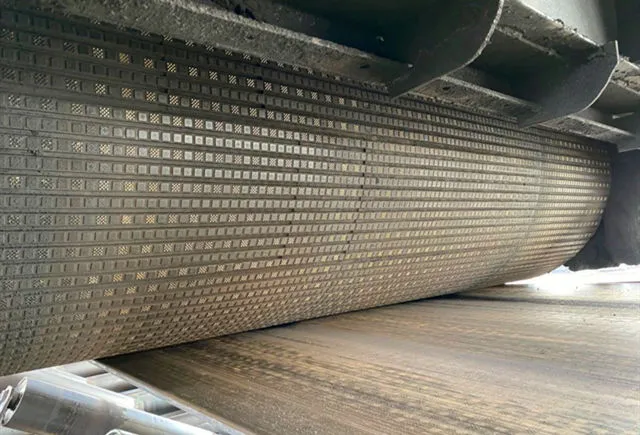

Conveyor Bend Pulley

The Conveyor Bend Pulley is often called Guid Pulley, Tail Pulley, Take Up Pulley, and Snub Pulley. Bend pulley is a type of Tail Pulley. SKE is a bend pulleys manufacturer and supplier. If you want to know about specifications, types, applications of conveyor bend pulley, you can contact us.

  • Applications
  • Advantages
  • Datasheet
  • Related
Applications

Bend pulleys is used for changing the belt running direction or increasing the wrap angle between conveyor belt and driving pulley.The Conveyor Bend Pulley is usually installed at the tail part or the vertical take-up equipment part when the belt direction need to 180°bending. It will be installed above the take-up equipment part while 90°bending. The pulley, which is used for extending the contact surface, is usually used for below or equal to 45 degree bending. The surface treatment of the bend pulley can be smooth steel and flat rubber lagging. It can be used in many industries such as aggregate & sand production, mining & mineral processing, food processing, and warehousing, manufacturing and logistics applications

Advantages

Types of Conveyor Bend Pulley

As per different carrying capacities, the bent pulley can be divided into three categories: light duty, medium duty and heavy duty.

1. Light-duty

Bearing Aperture: 80~100mm.

The axle and the hub are connected by the single key. And it's single plate welding. The axle is unidirectional out.

2. Medium-duty

Bearing Aperture: 120~180mm.

The axle and the hub are connected by the ring lock.

3. Heavy-duty

Bearing Aperture: 200~220mm.

Tech Datasheet
Characteristics of belt conveyor bend pulley
Description Heavy duty carbon steel bend drum bottom conveyor belting pulley for conveyor system
Type bend pulley, take up pulley, tail pulley, snub pulley
Type conveyor DTII, DTII(A), TD75...
Bearing big roving crack, deep groove ball with double sealing
Welding pipe and bearing housing with automatic welding
Surface smooth steel surface, rubber face
Color Red, yellow, blue or as require
Standard ISO9001:2008 CEMA DIN TUV
Application Used in bulk materials handling industry like coal mine, steel industry, cement industry, port, grain, etc.
Service life More than 30,000 hours
The specifications of belt conveyor bend pulley
Type Belt width(mm) Standard diameter(mm) Length(mm)
motor pulley 500 500 Length of pulley depends on the width of conveyo belt!
650 500~630
800 630~1000
1000 800~1150
1200 800~1150
1400 1000~1350
1600 1150~1600
1800 1150~1800
2000 1350~2000
2200 1600~2200
2400 1800~2400
