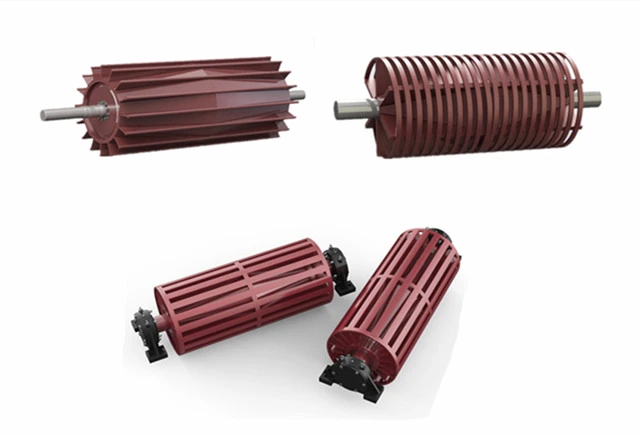

A conveyor wing pulley, also known as a winged pulley, is a type of conveyor pulley designed with extended sides or "wings" that help guide the conveyor belt. We offer mine duty and heavy-duty wing pulleys for sale.
The belt conveyor wing pulley is known as self-cleaning pulleys. These wings serve several purposes, including improving belt tracking, reducing material spillage, and enhancing overall conveyor system efficiency. It has the ability of belt tracking and self-cleaning, and it can reduce material spillage.
Like other types of conveyor pulleys, wing pulleys may be equipped with lagging material on the surface to improve traction between the pulley and the belt. It is widely used in Aggregate & Cement, Mining, Paper & Forest, Power Generation, Unit & Baggage Handling, etc.
Mine duty and quarry duty and heavy duty pulleys provide effective self-cleaning action reducing material build-up. The duty construction reduces the possibility of metal fatigue and enhances the dependability of the pulley. Ideally suited for harsh application and abrasive conditions.
DIAMETER: 6” – 60”(152mm – 1524mm); FACE WIDTH: 12” – 78”(305mm – 1980mm); It is Customizable.

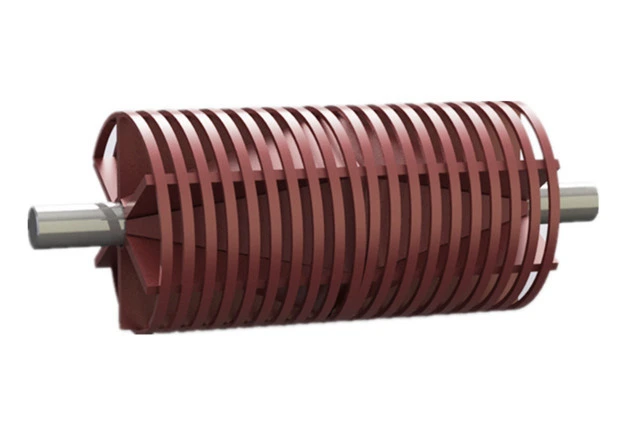

Available in crow spiral wing pulleys are formed by winding flat bar spirally from the center of a wing pulley to the outside ends. This continuous belt contact design eliminates excessive noise and vibration, while still providing a cleaning effect and allowing a path for debris to escape rather than being trapped between the pulley and belt. n or Flat Face.
Diameter: 12" – 60"; FACE WIDTH: 12" – 75"; It is Customizable.
Before the chevron pulley, traditional wing pulley designs were notorious for trapping rocks, gathering fugitive material and bending prematurely.Chevron Wing Pulleys reject and repel any incoming fugitive material, which significantly extends the operating life of your conveyor and many of its components.
DIAMETER: 10” - 42”; FACE WIDTH: 12” - 75”; It can be tail and gravity take-up; It is Customizable.
Herringbone wing pulley was designed for those applications where conventional wings suffer from excessive material lodging and wing folding. The extreme wing angles of up to 45 degrees, use the rotation of the pulley to eject material out the sides of the pulley rather than recirculating it as a conventional wing often does.
DIAMETER: 12” - 60”; FACE WIDTH: 12” - 78”; This is a precision pulley. It is Customizable.
| Belt Conveyor Wing Pulleys Specification | |
| Standard | You can get DIN/ AFNOR/ FEM/ ASTM/ CEMA standard wing pulleys from our company. |
| DIA. | 6"-60", 152-1524mm |
| FACE WIDTH | 12"-102", 305-2590mm |
| Types | 1. Mine Duty Wing Pulley, 2. Heavy Duty Wing Pulley, 3. Wing Tail Pulley, 4. Spiral Wing Pulley, 5. Chevron Wing Pulley, 6. Herringbone Wing Pulleys. |
| Customizable | When selecting a conveyor wing pulley, factors such as the type of material being conveyed, belt width, load capacity, and environmental conditions should be considered. |
