Conveyor Take Up Pulley

A take-up pulley is specifically designed to maintain proper tension in the conveyor belt. Our take-up pulley is suitable for screw tension mechanism, gravity tension mechanism, and hydraulic tension mechanism.

Obtained Certificates: CE Certificate, ISO 9001, ISO 14001, ISO 45001,

  • Applications
  • Features
  • Datasheet
  • Video
  • Manufacturing
  • Gallery

Take-up pulleys have a design that allows for movement along the conveyor frame. This movement is necessary to accommodate changes in belt length while maintaining proper tension. The primary function of the take-up pulley is to provide a means for adjusting the tension in the conveyor belt. It compensates for changes in belt length caused by factors such as load variations, thermal expansion, and belt stretching.

  • Gravity Take-Up Pulley

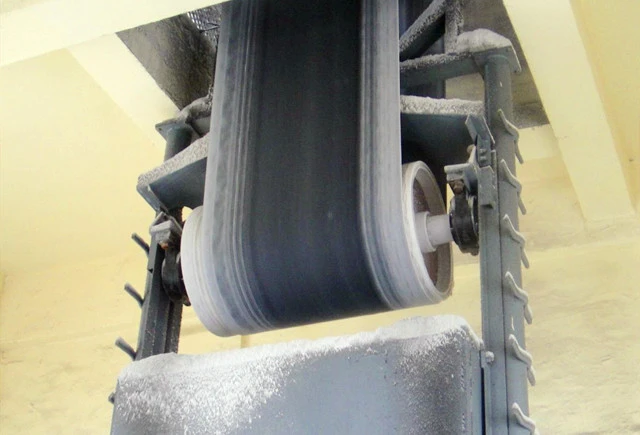

    In a gravity-type take-up system, the take-up pulley is mounted on a carriage that can move vertically. The weight of the carriage, often augmented by additional counterweights, provides the force needed to tension the belt.

  • Mechanical Take-Up Pulley

    Mechanical take-up systems use devices such as screw or hydraulic mechanisms to adjust the position of the take-up pulley. These systems provide more precise control over tension and are commonly used in applications with varying load conditions.

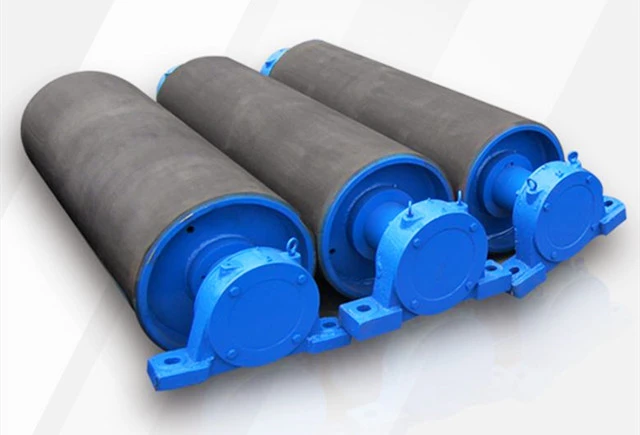

Belt Conveyor Take Up Pulley
Items Content
Belt Width 500-2800mm (19-110.2 inch)
Pulley Length 500-3200mm (19-125.9 inch)
Diameter 200-1800mm (7.8-70.8 inch)
Standard ISO9001:2008, CEMA, DIN, TUV, etc.
Working Life More than 30,000 hours.

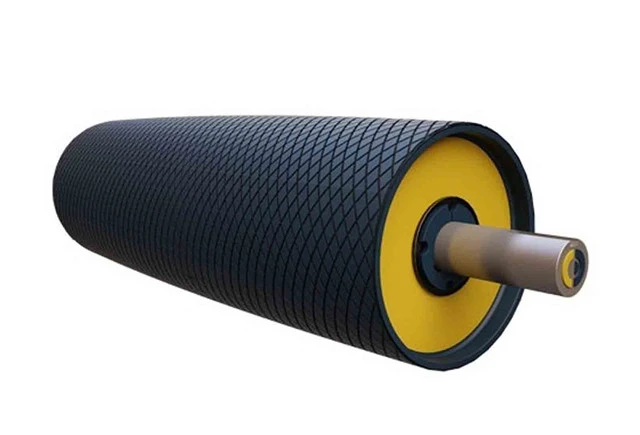

Surface Flat Rubber Lagged, Ceramic Lagged, Diamond Rubber Lagged, etc.
Main Material Carbon Steel Shell
Length of conveyor Take Up pulley depends on the width of conveyor Belt. You can get Take Up pulleys with hot vulcanized rubber lagging, plain or grooved, as required by client.

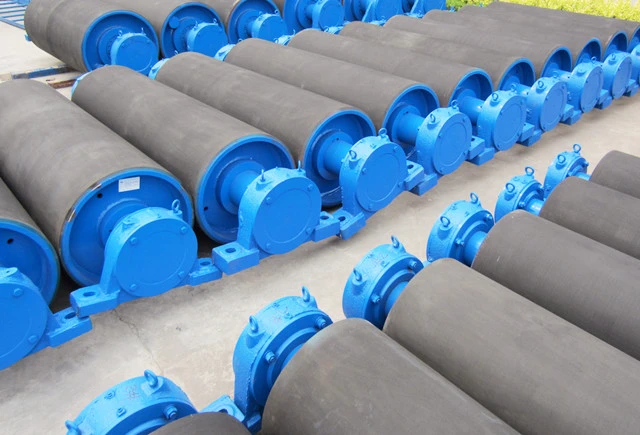

Conveyor Pulleys Manufacturing
